multivac C300 - Sensor Filter and Sealing Bar Replacement

Maintenance
Exchanging the vacuum sensor filter
104 10.06.2014
7.6 Exchanging the vacuum sensor filter

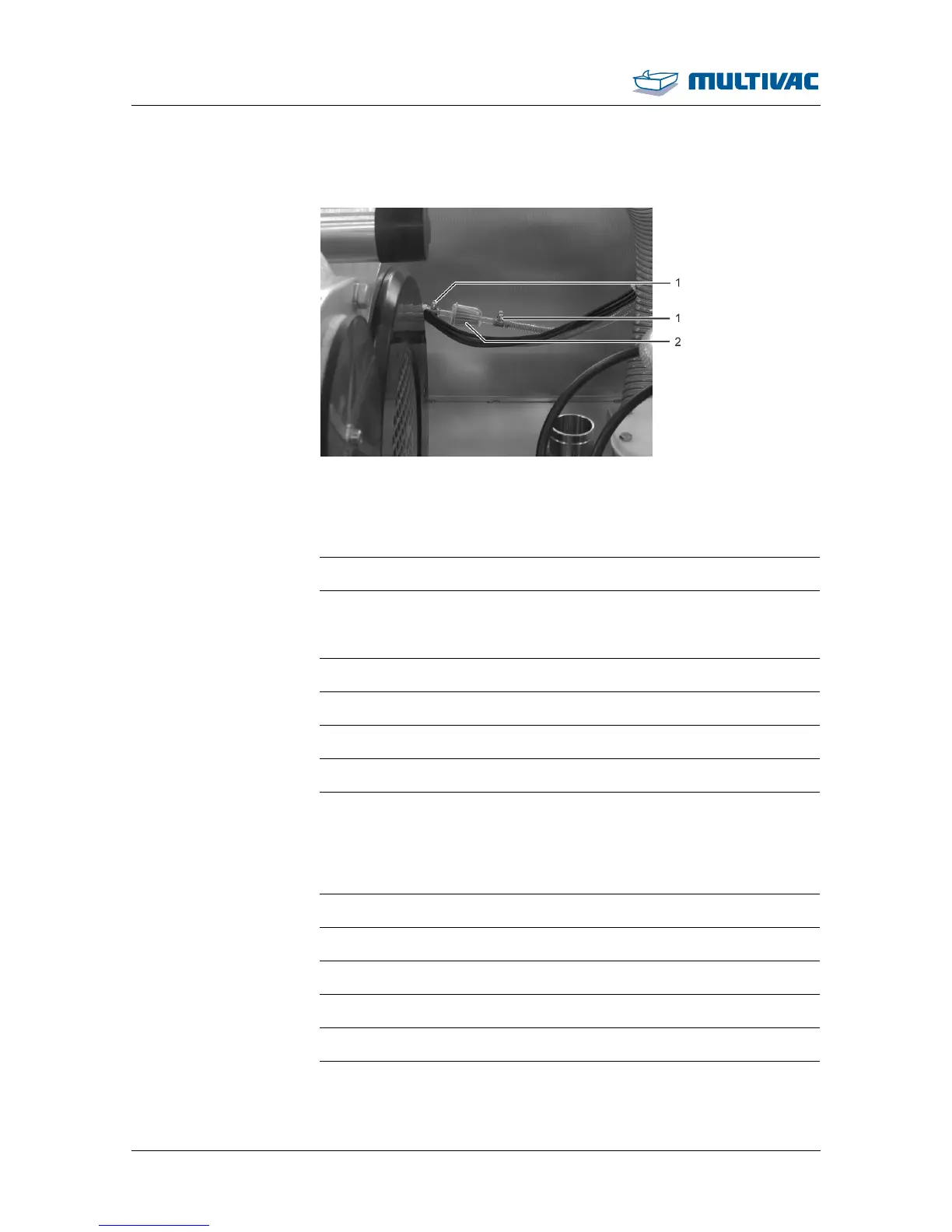

Fig. 46: Filter in measuring line of vacuum sensor
1
Clamp
2
Filter
¾ Switch off the machine.
¾ Disconnect the machine from the mains electricity.
¾ Remove safety guard.
¾ Release the clamp in front of and after the filter.
¾ Replace the filter.
¾ Fasten the filter with the clamps.
¾ Fasten the safety guard.
7.7 Replace the sealing bar
7.7.1 Remove the sealing bar
¾ Switch off the machine.
¾ Disconnect the machine from the mains electricity.
¾ Open the chamber lid.
¾ Let the sealing bar cool down.
¾ Pull out the sealing bar.
