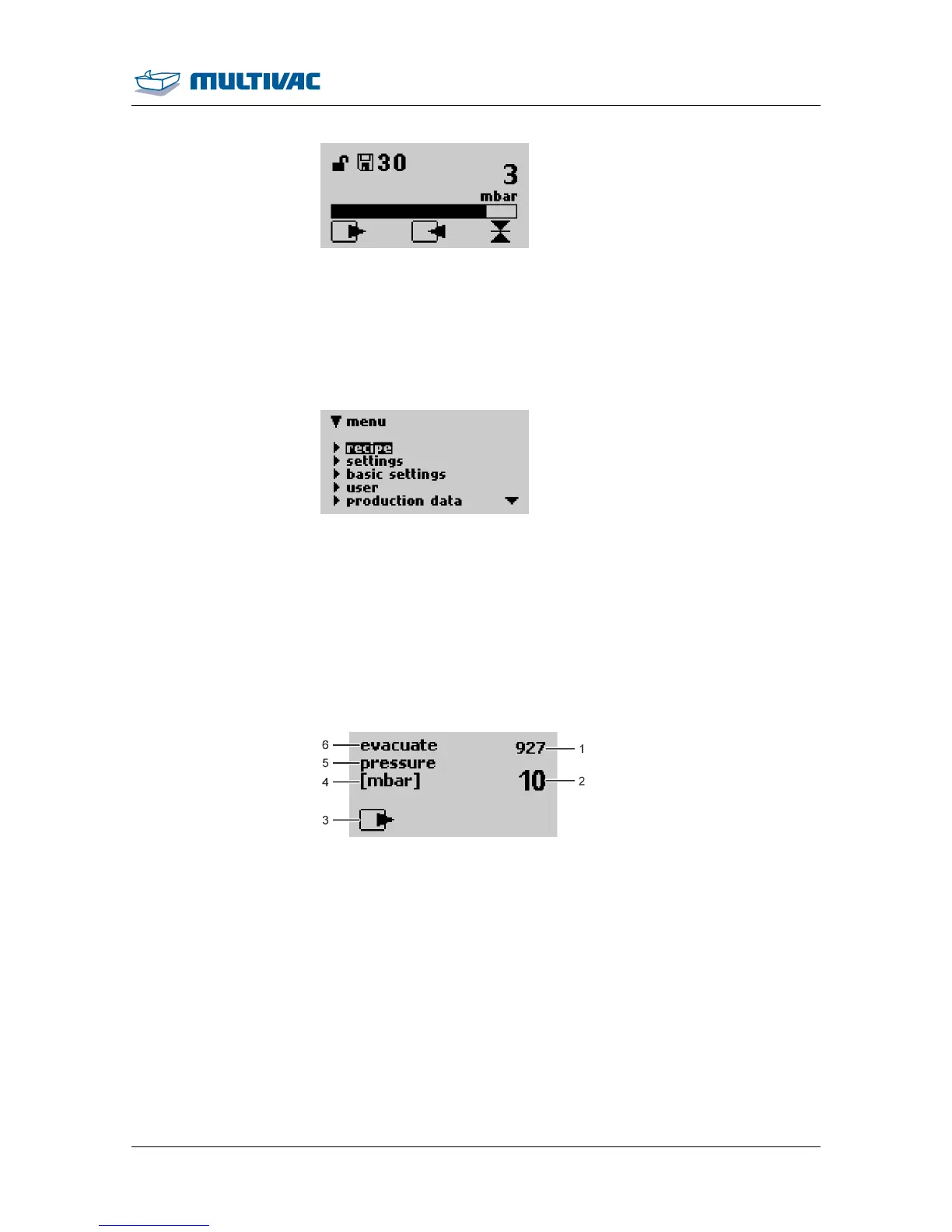

Fig. 34: Sealing status display (050)
2.4.3 Menu display
The menu display is a listing of the menus. The menu display can
vary depending on the access right.
The arrow on the bottom right edge indicates a continued listing. Inac-
tive menu options are shown with a dash (-).
Fig. 35: Example: Main menu (003)
2.4.4 Function display
Depending on the access rights, the function display will offer the
following options:
• View values.
• Enter values.
• Switch functions on and off.
Example of a function display with values:
Fig. 36: Function display with value (052)
1
Actual value
2
Setting
3
Symbol of function (e.g. evacuation)
4
Measurement
5
Selected parameter
6
Selected function
Example of a function display for switching a function on and off:
