Description
Optional equipment
10.06.2014 35
2.3.3 Holder for gas cylinder

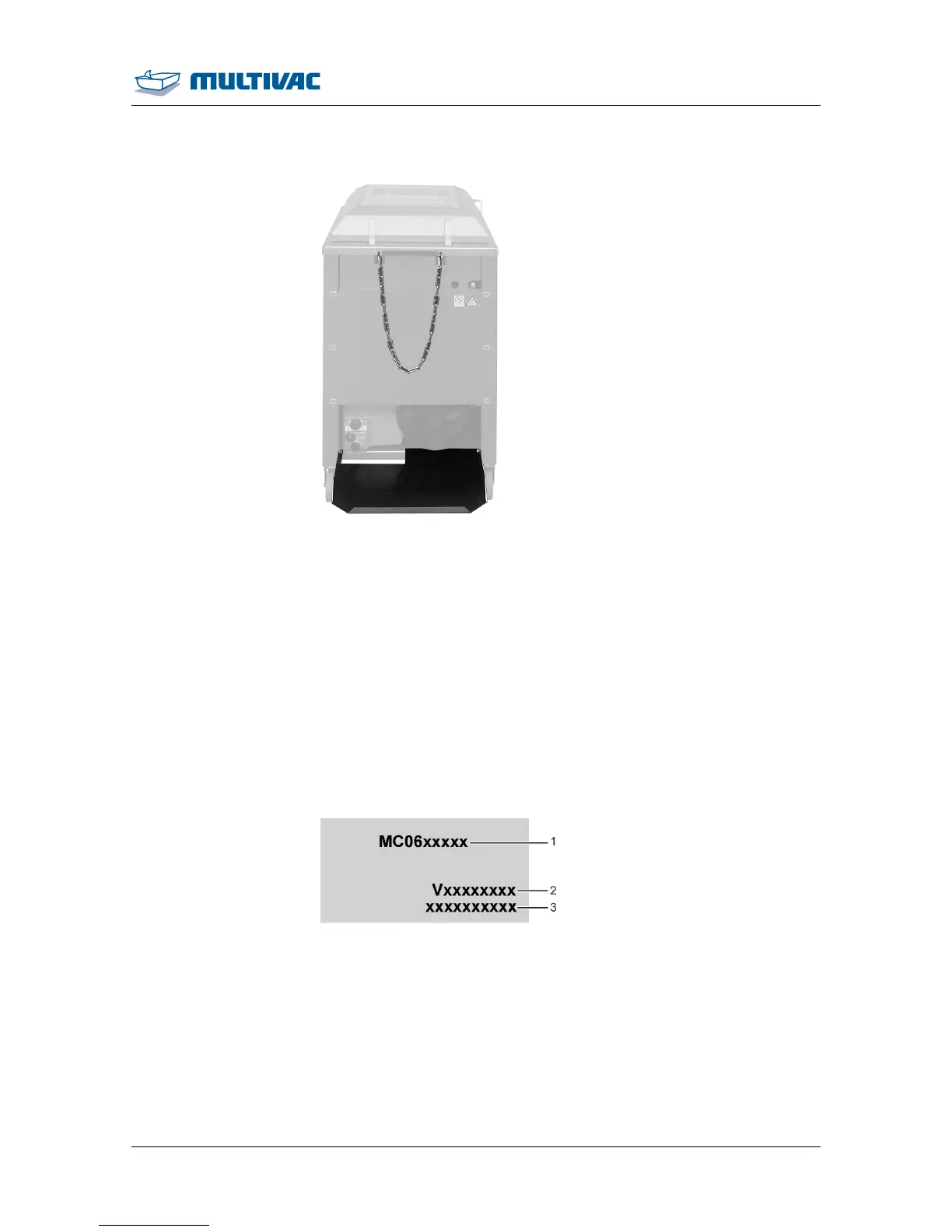

Fig. 29: Holder for gas cylinder
This holder attaches a gas cylinder to the machine.
The following gas cylinders can be attached to the machine:
• Max. diameter: 160 mm
• Max contents: 20 l
2.4 Display
The display shows different views with differing information depend-
ing on the machine's phase of operation.
2.4.1 Startup display
The startup screen appears after switching on the machine.
Fig. 30: Startup display
1
Type designation of machine control
2
Software version
3
Configuration code
