VJ-1324 OPERATION MANUAL Product overview
2.2 Names of parts and functions 29

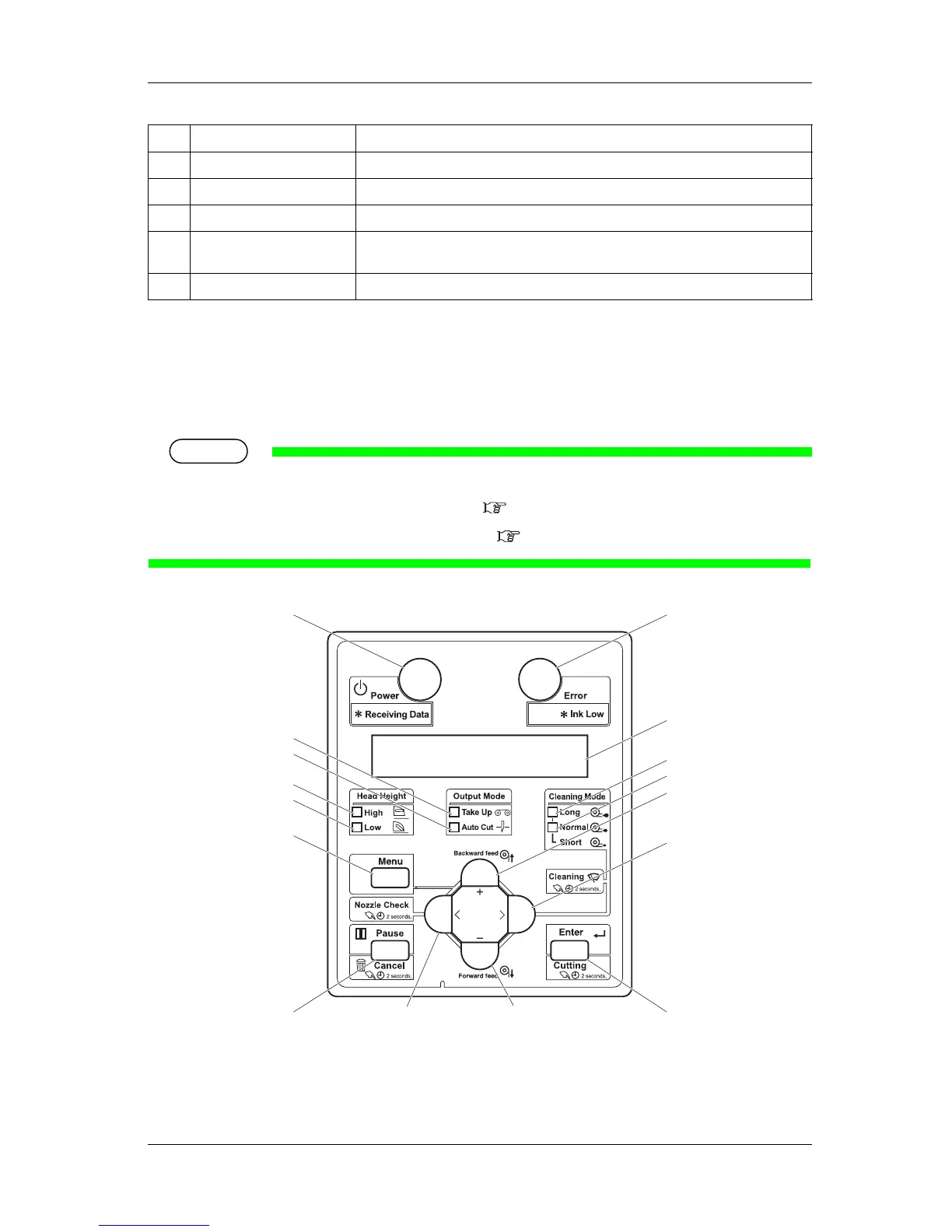

2.2.3 Operation panel
Used to set the operating conditions, to display the status of the printer, and to set various functions.
Names of each operation key and status display along with the functions are explained.
TIP
•Refer to the following for details regarding the operation method of the operation panel.
•When performing menu setting from the operation panel:
4.3 Menu setups on the operation panel
•When performing various operations in the operation panel: 4.4 Operating from the operation panel
5 Ink cartridge slot Insert the ink cartridge.
6 Media guide Used for feeding media smoothly when the media is set or printed.
7 Waste fluid tank Used for collecting waste ink discharged from the printer.
8 Waste fluid valve Open and close when discharging the waste fluid from the waste fluid tank.
It is normally closed.
9 Book holder Quick reference etc can be stored.
No. Name Function
8, 9
3
15
17
16
6
5
11
12
1
13
14
10
27
4
To Next Page
