Replacing the Emitting Window Glass on the UV-LED Lamp 135
[6]

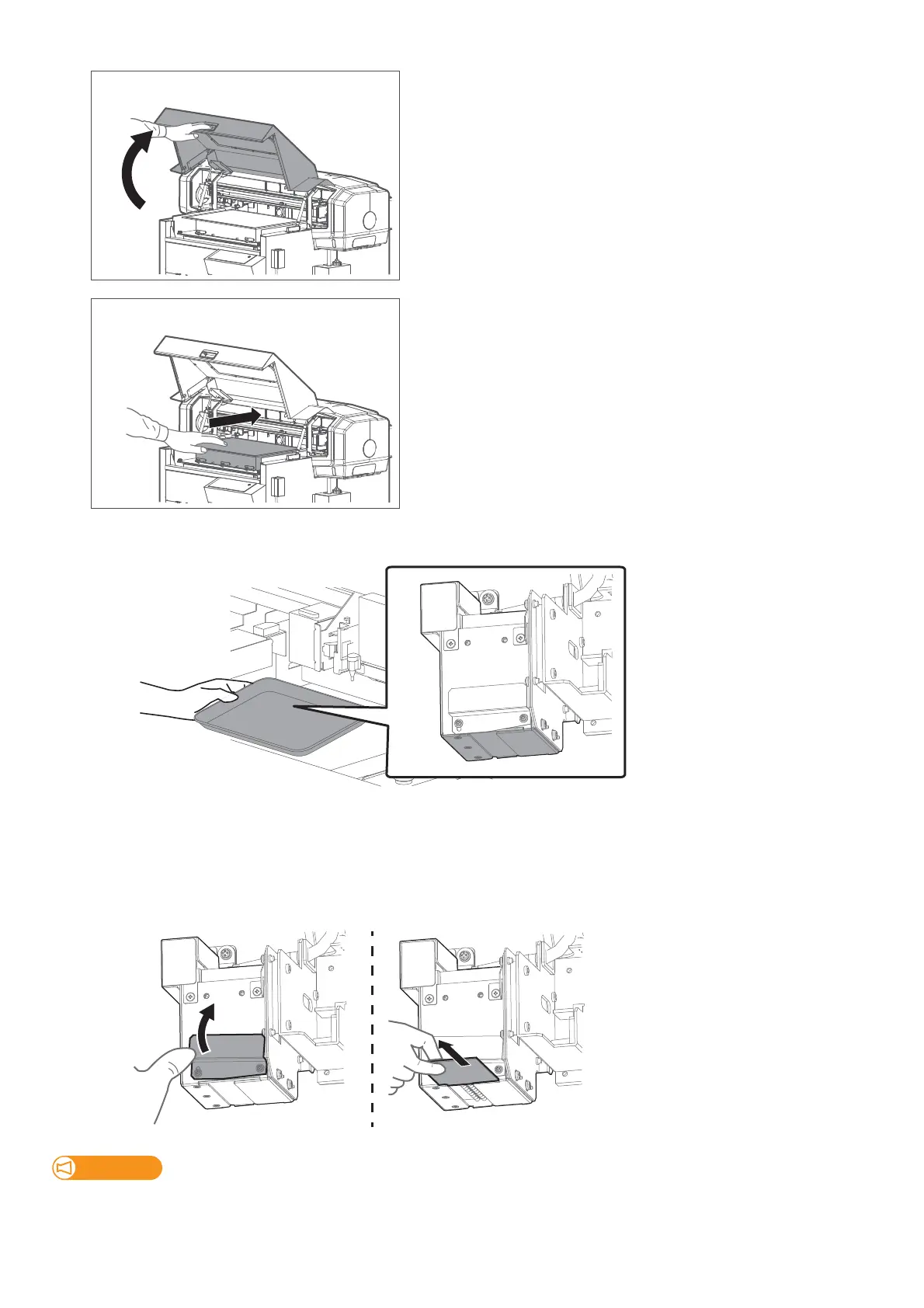

Hold the handle on the front cover to gently open it.
[7]
Push the table all the way.
[8]
Look in the stainless tray to check the bottom of the carriage.
• Check for cracks, chips, or ink on the emitting window glass of the UV-LED lamp.
[9]
Replace the glass.
• Slide up the left side of the exhaust fan cover. The right side screw serves as a fulcrum.
• Slide the glass on the bottom of the lamp towards the front to remove it.
• Install a new glass on the UV-LED lamp.
• Firmly slide it into the end and then put the exhaust fan cover back in place.
Be sure not to forget to install a new glass. Using this product without a glass will cause damage to the UV-LED lamp.
To Next Page
