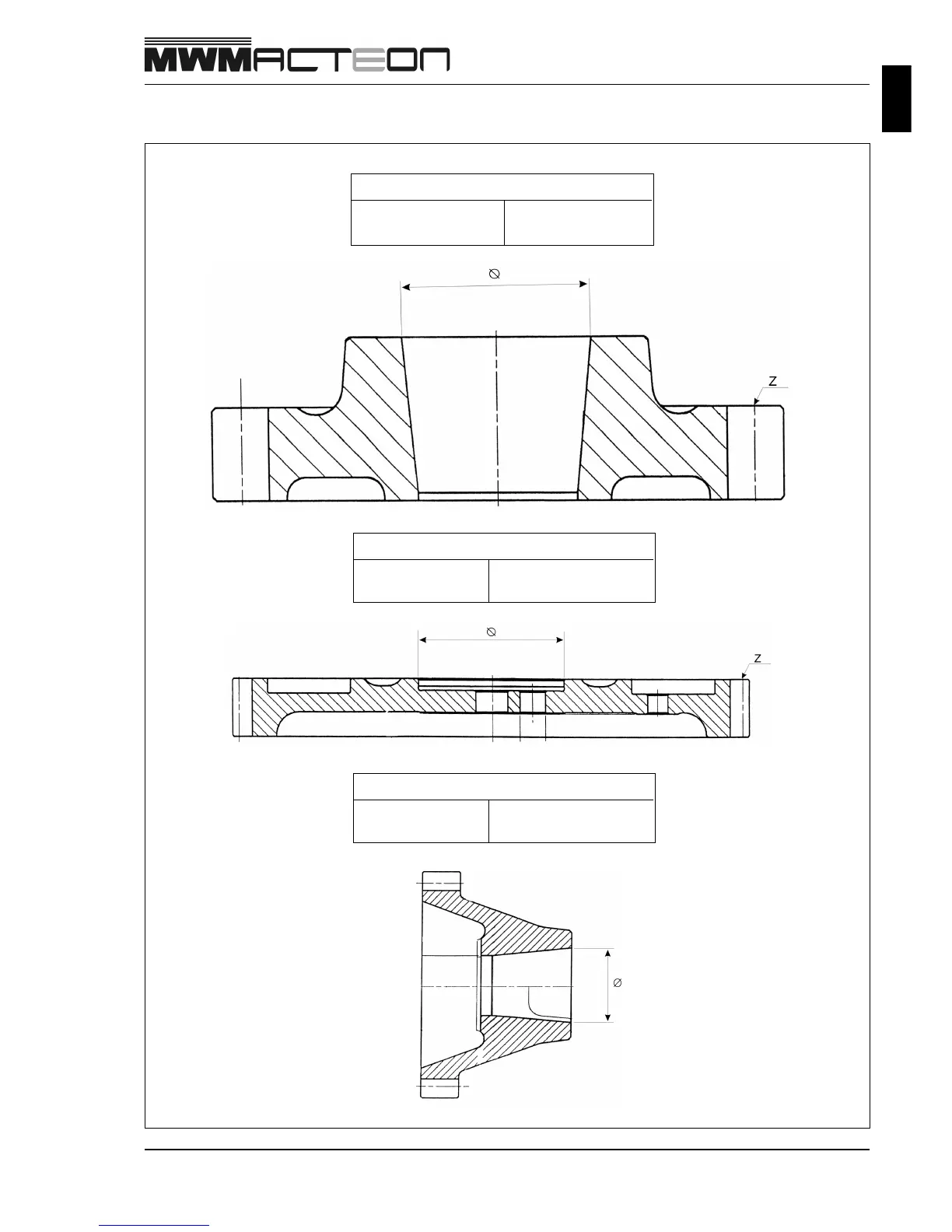

Gearing Carcass
9 - 5
9.612.0.006.7160 - 05/04
Camshaft gear
Ø hole mm 52.00 - 52.03
quantity of teeth 72
Specifications
High pressure pump gear
Ø hole mm 20.000 - 20.033
quantity of teeth 27
Air compressor gear
Ø hole mm 30.00 - 30.033
quantity of teeth 32
