Gearing Carcass
9.612.0.006.7160 - 05/04

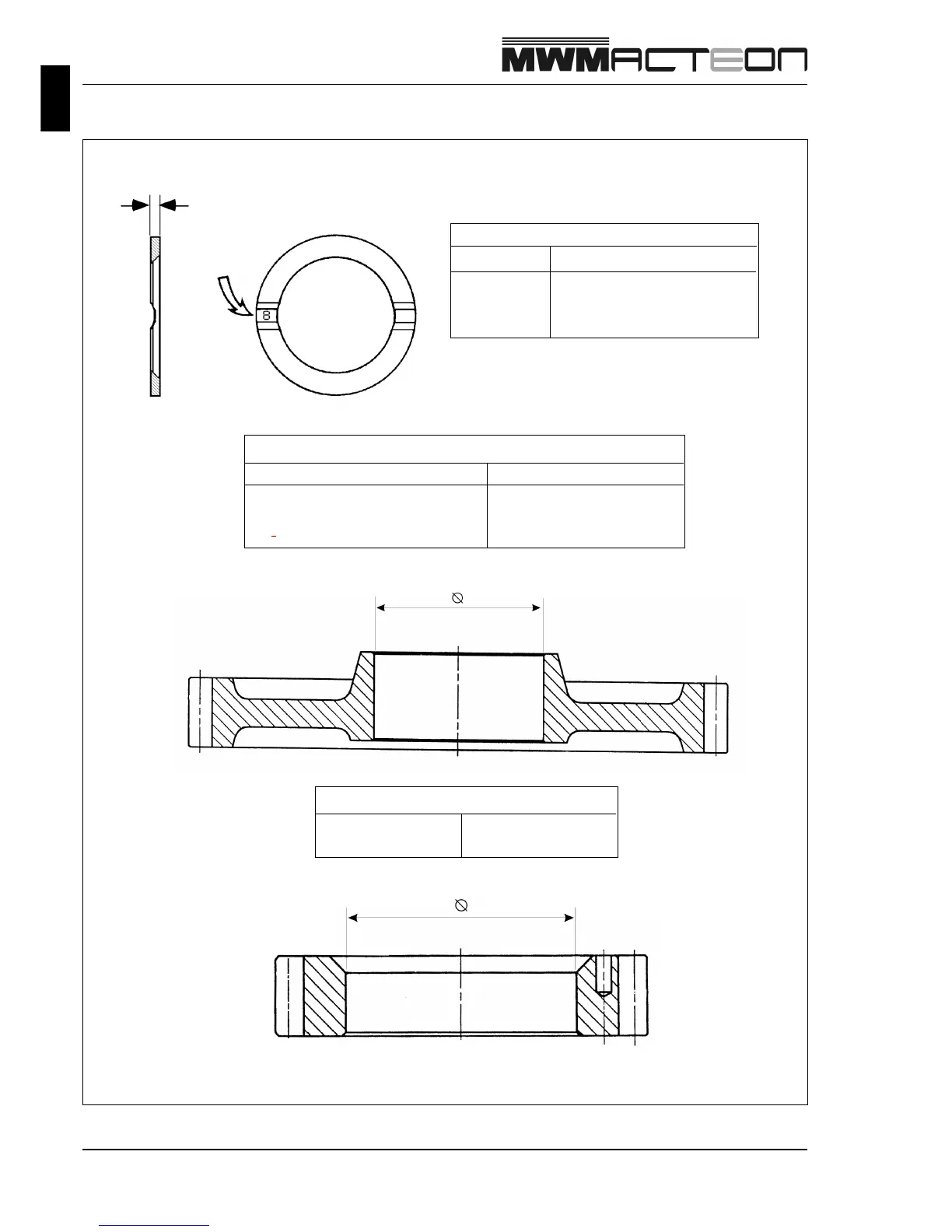

Specifications
Crankshaft front gear
Ø hole mm 60.000 - 60.025
quantity of teeth 36
Idle gear
Ø furo mm
Without bushing 50.000 - 50.015
With bushing 45.024 - 45.070
N
o
s de dentes 6
Thrust ring
E (mm) MWM nr.
3.46 - 3.48 9.610.0.433.004.4
3.51 - 3.53 9.610.0.433.005.4
3.57 - 3.59 9.610.0.433.006.4
E
