Gearing Carcass
9 - 13
9.612.0.006.7160 - 05/04

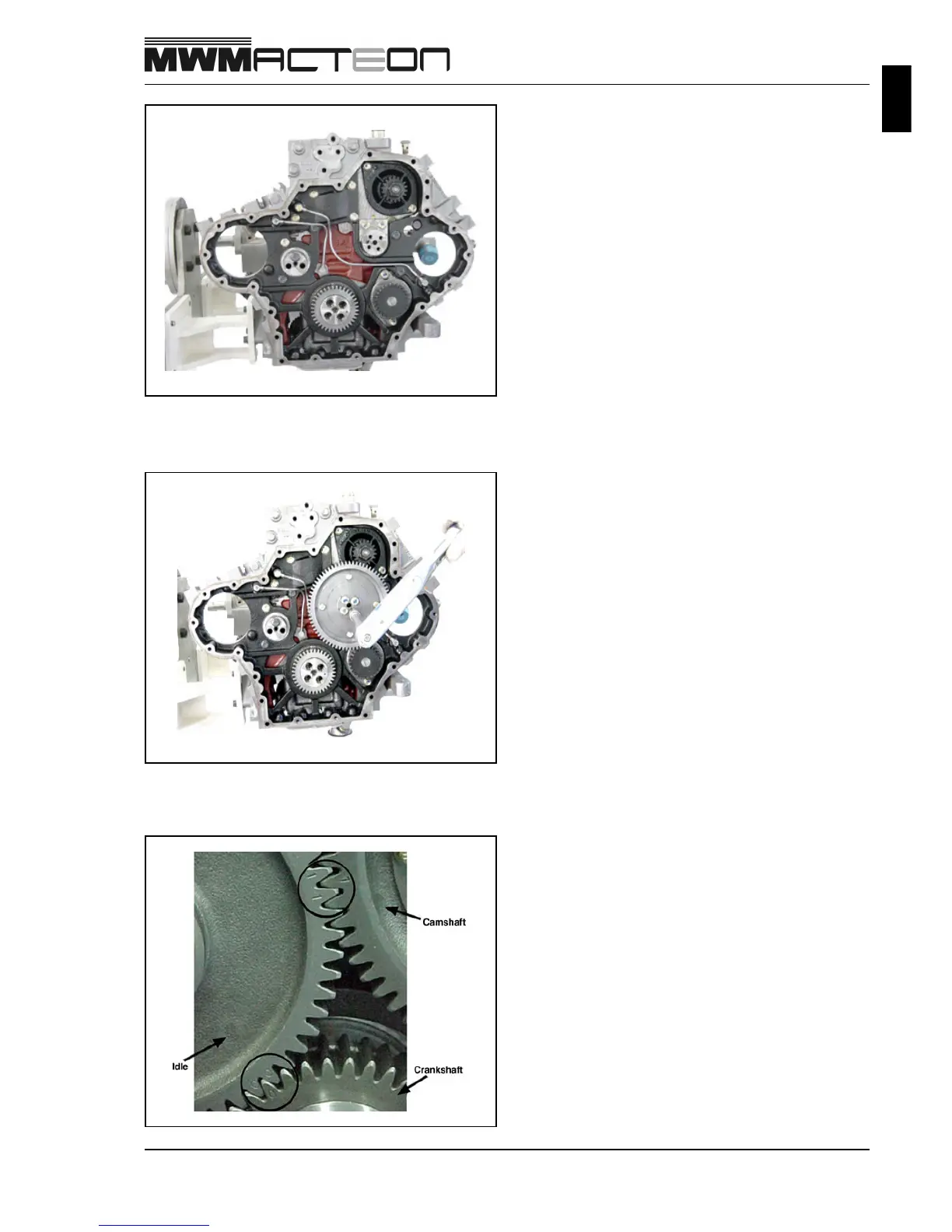

Install lubrication pipes tightening according to the
specification.
Assembly camshaft gear and tighten the bolts
according to the specification.
Detail of the gears timing demarcations.
