MWM Acteon - Page 126

9 - 14
Gearing Carcass
9.612.0.006.7160 - 05/04

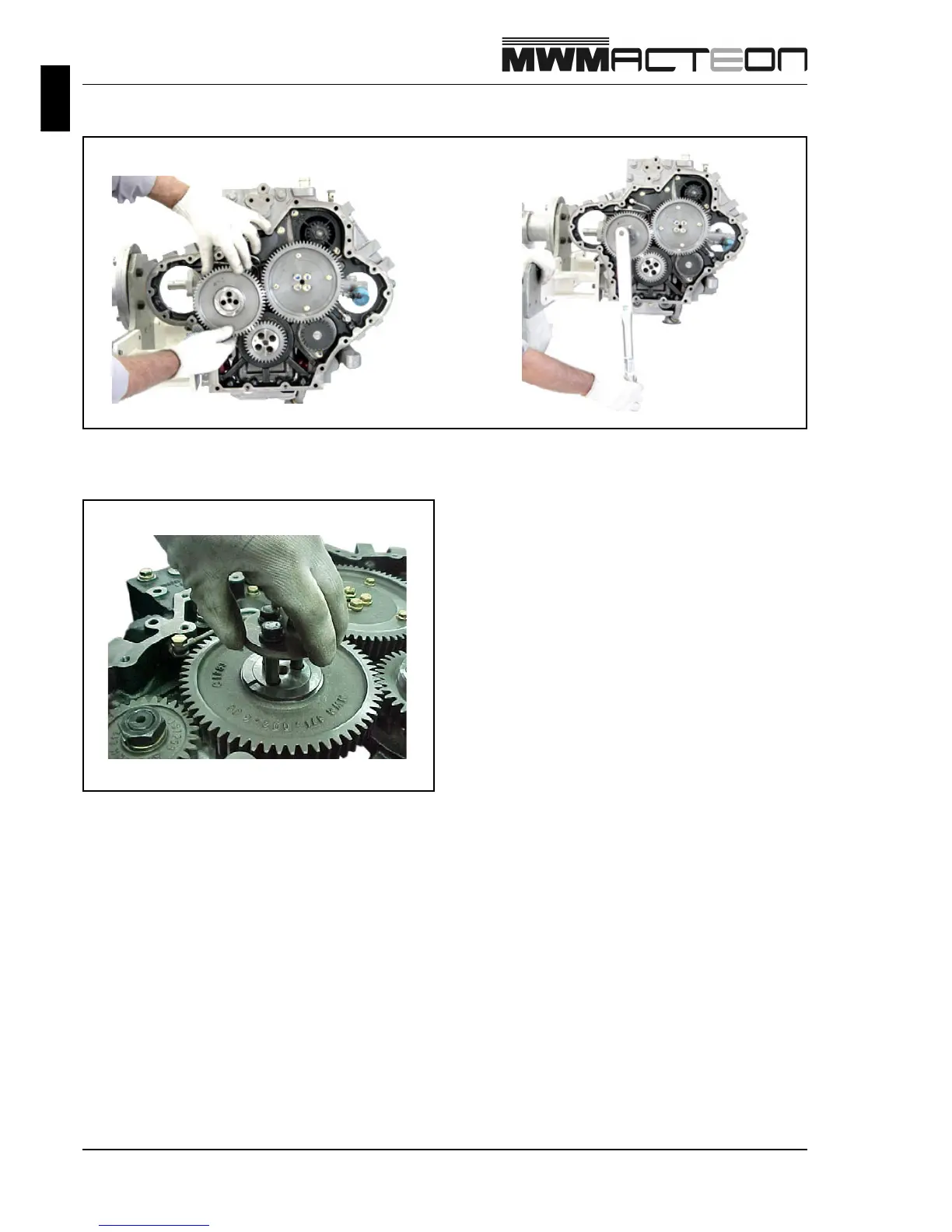

Remove the bolts of the idle bearing and install the
thrust ring of the idle gear. The two grooves must stay
towards the side of the shaft. There are 3 different
thickness of thrust ring in order to guarantee the axial
clearance of the idle gear.
Assembly the idle gear.
