Fuel Injection System
14 - 25
9.612.0.006.7160 - 05/04

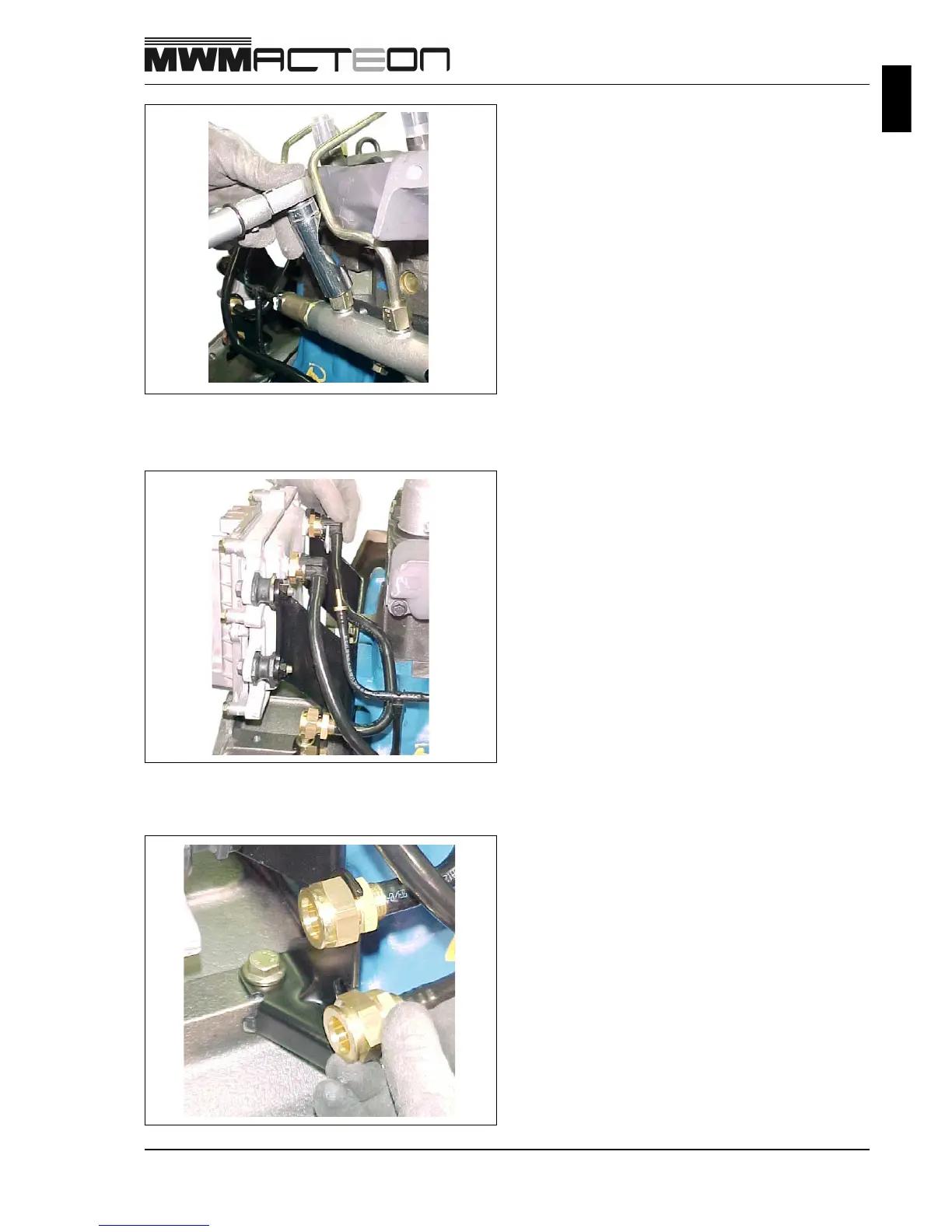

After assembly on the cooler, connect the nipple of
fast connection on the bracket.
Assembly the high pressure pipe on the Rail. Apply
the specified torque.
The high-pressure piping must be assembled free of
tension, avoiding damages and deformations in the
piping and nut-caps.
After the installation of the high pressure pipes,
assembly low pressure piping. First, assembly ECM
cooler fuel inlet and outlet pipes.
