14 - 26
Fuel Injection System
9.612.0.006.7160 - 05/04

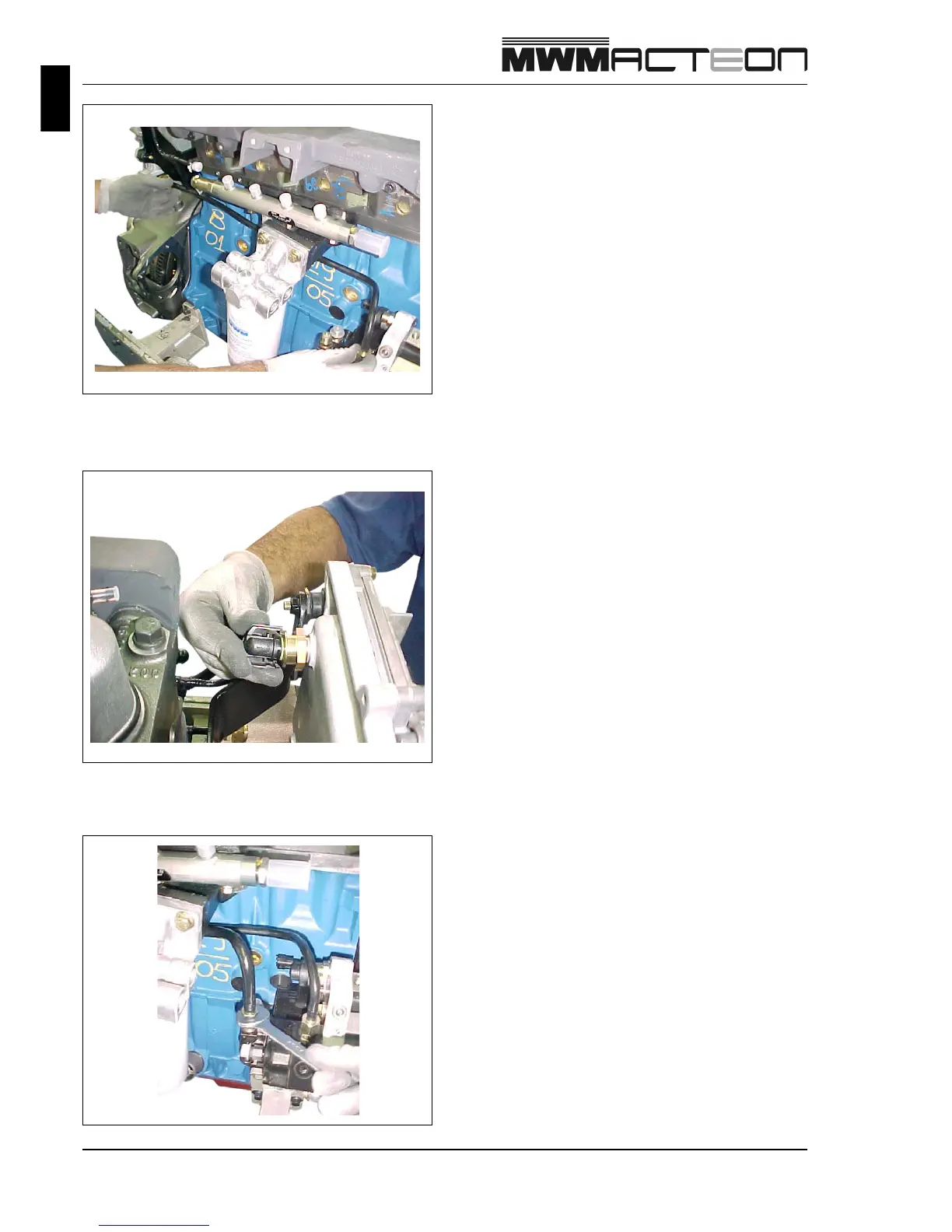

Assembly return pipe of the high pressure pump to
the fuel tank. Apply the specified tightening torque on
the nut-cap, assembly the nipple of fast connection
on the bracket.
Assembly the cooler fuel outlet pipe to the high
pressure pump.
Assembly the cooler pipe nut-cap of the high pressure
pump and apply the specified torque.
The assembly of the nut-cap of the pipe must be
carefully made, therefore the tightening torque of the
nut of the fuel lift pump is lesser.
This way, during the assembly, use a spanner to
perform the counter-tightening.
