11 I/Q Analyzer Mode
202 IDA-3106 Narda
11.2 Display overview

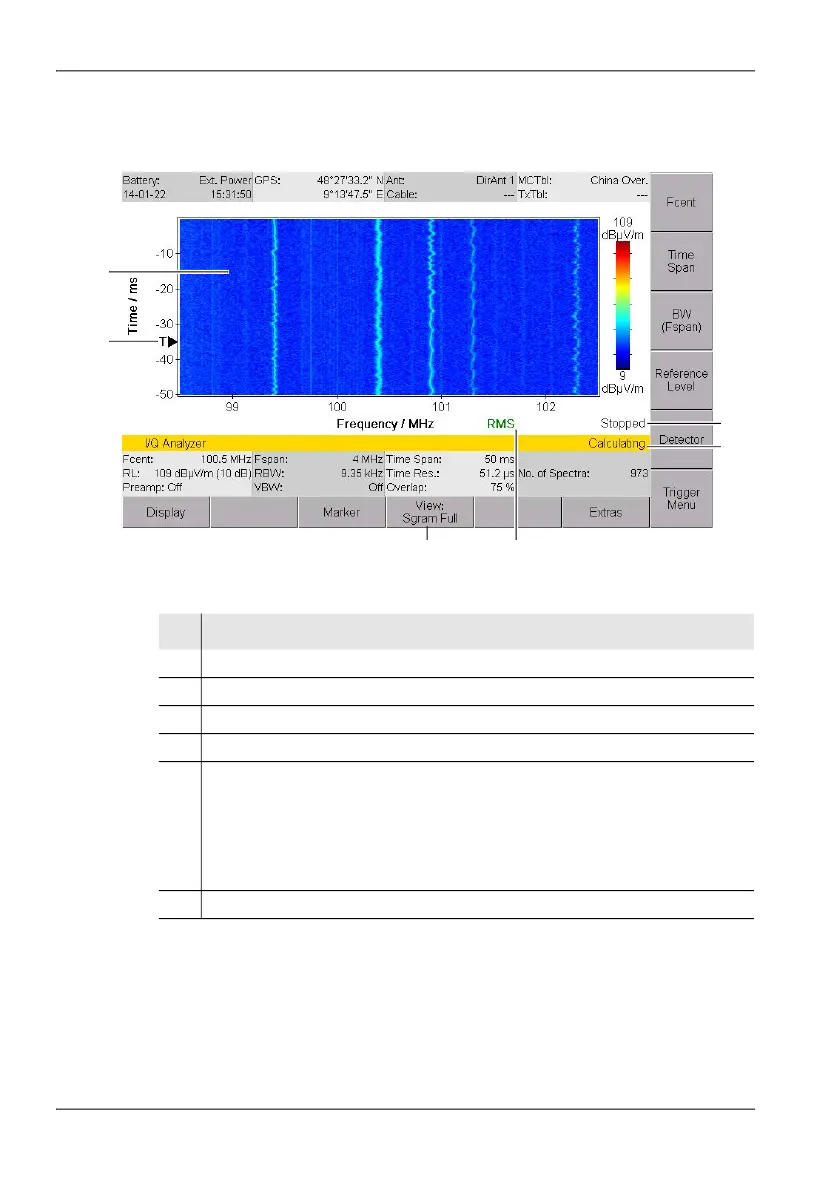

Figure 46: I⁄Q Analyzer mode with activated trigger function
1
3
2
4
65
No. Function / Explanation
1 Measurement display.
2 Trigger time point indication (not needed for Free Run)
3 Trigger message (see Table 36 on page 194).
4 Display during a calculation
5 View (view selection)
• I/Q
• Magnitude
• HiRes Spectrogram Full
• HiRes Spectrogram Zoom
• Persistence Spectrum
6 Selected detector (for spectrogram views only).
