Native Instruments MASCHINE MK3 Getting Started

The Control area allows you, among many other things, to adjust the parameters of your Plug-
ins.
Here, you want to display the Plug-in parameters for your first bass Sound “Analovue.”
6.5.1 Accessing the Plug-in Parameters in the Software

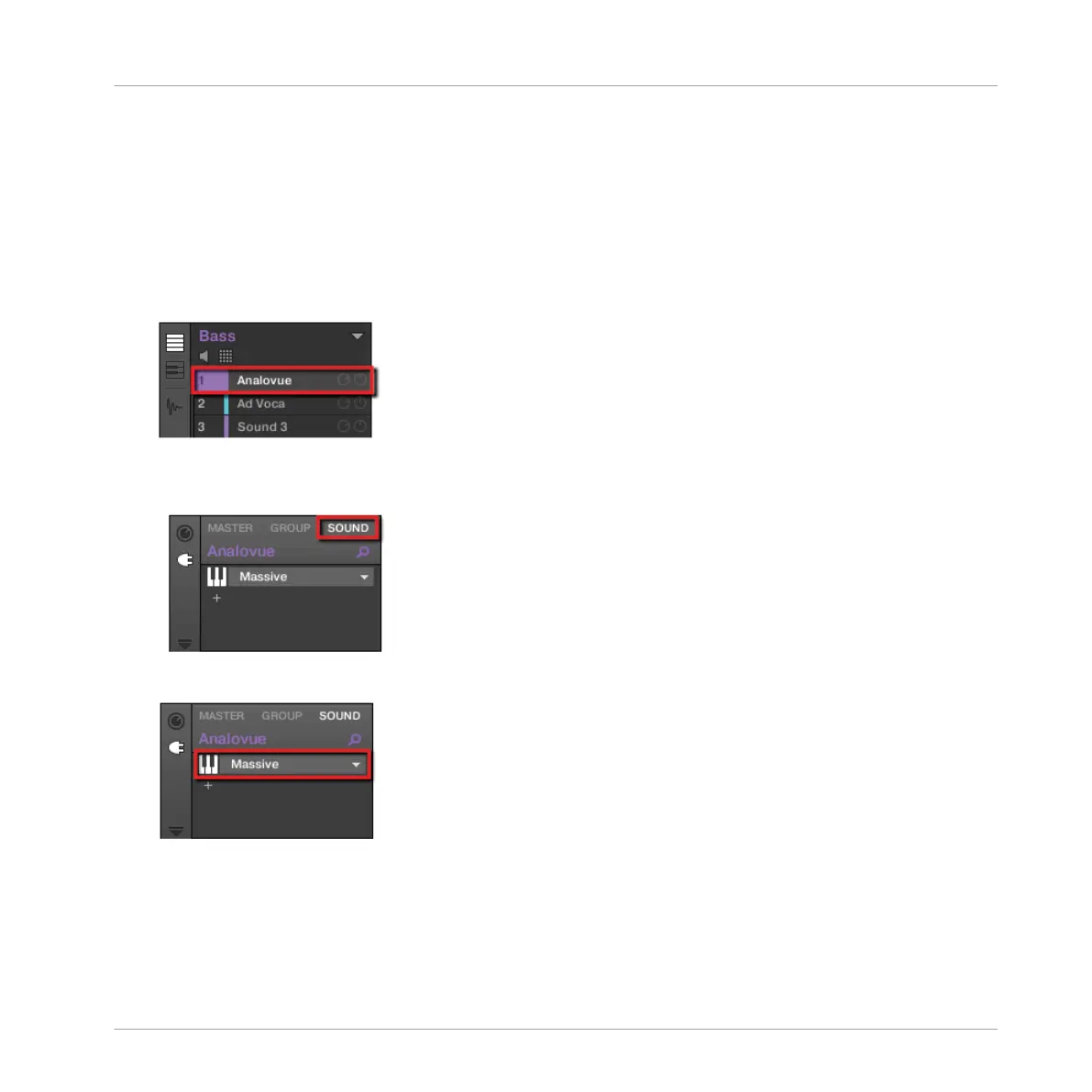

1. At the left of the Pattern Editor, click the Sound slot’s name (Analovue) to select that
Sound slot.
2. In the top left part of the Control area, click the SOUND tab to select it (it should be
highlighted).
3. In the Plug-in List below, click Massive to select it.
→
The Control area now displays the parameters of your bass Sound “Analovue.” You can
check this by looking in the left part of the Control area:
Adding a Bass Line
Accessing the Plug-in Parameters
MASCHINE - Getting Started - 102

Native Instruments MASCHINE MK3 Specifications

General

Encoders	8 touch-sensitive knobs
Audio Interface	24-bit / 96 kHz
MIDI I/O	1 x MIDI In, 1 x MIDI Out
USB	USB 2.0
Pads	16 x Multi-color Pads, Velocity-Sensitive, Aftertouch
Display	2 full-color screens
Outputs	1/4" TRS Line Outputs, Stereo Headphone Output
Software	Maschine Software
Power Supply	USB bus-powered
Dimensions	320 x 301 x 41 mm
Weight	2.2 kg
System Requirements	Intel Core i5, 4 GB RAM
Inputs	1 x 1/4" TRS Mic Input, 2 x 1/4" TRS Line Inputs
