1PPS control

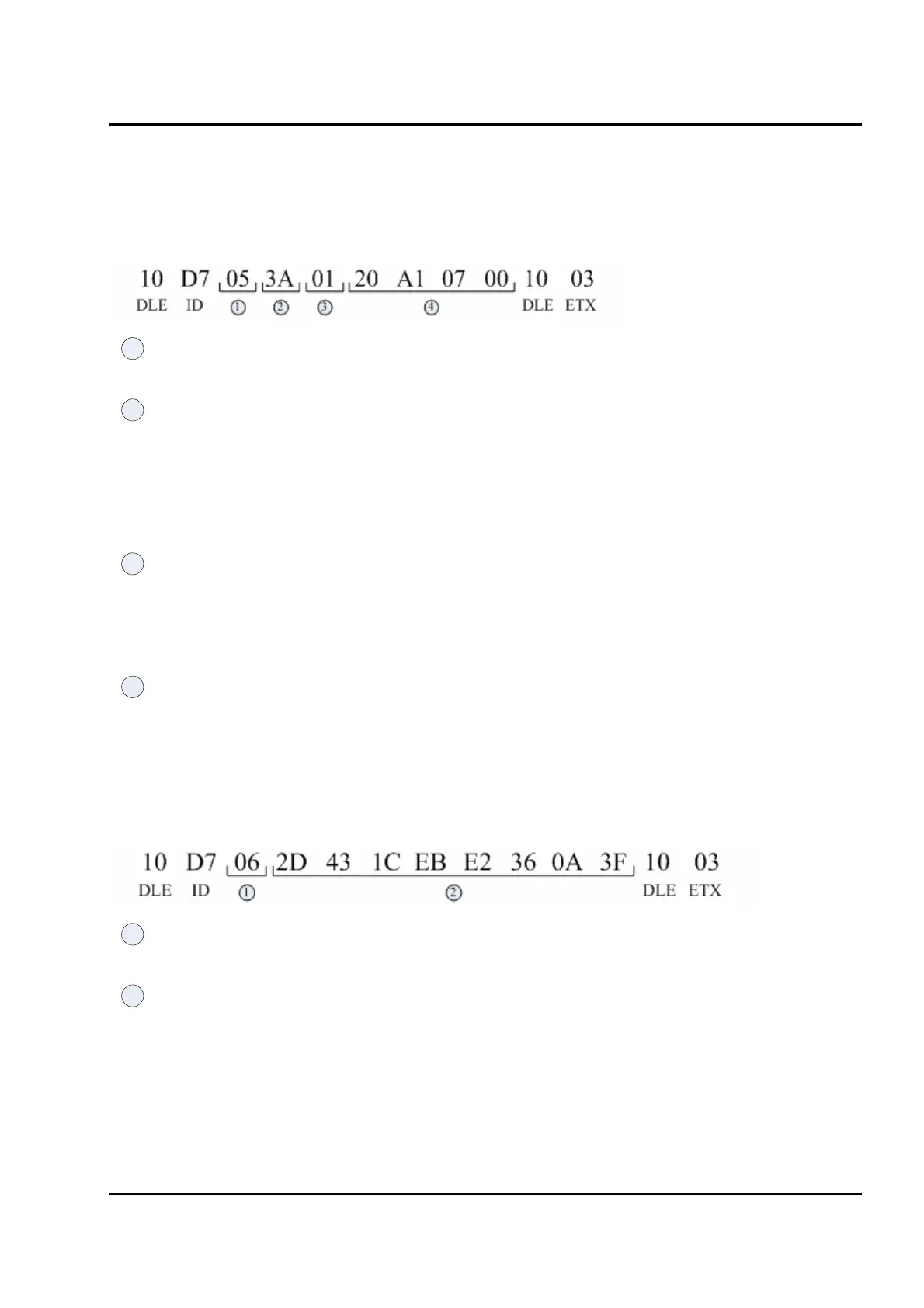

To set the 1PPS parameters (in the example below: synchronization with the UTC, pulse duration
0.5 msec) packet D7h must have following structure:
1
- data type: 1PPS control
Data type format - INT8U
2
- 1A – 1PPS synchronization with GPS
- 2A - 1PPS synchronization with GLONASS
- 3A - 1PPS synchronization with UTC
- 4A - 1PPS synchronization with UTC SU
Data type format - INT8U
3
- time format deviation in reference to the UTC
00 – disable
01 – enable
Data type format - INT8U
4
- 1PPS duration, msec
Data type format – INT32U
Signal delay in antenna cable
To set the signal delay to 50 ns, packet D7h must have following structure
1
- data type: signal delay in the antenna cable
Data type format - INT8U
2
- signal delay in the antenna cable, msec
Data type format – FP64
