NEC DT700 - Installing the DT700 Phone; BEFORE YOU BEGIN; ADJUSTING ANGLE OF TILT LEG

DT700 User Manual 2-25
. . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I NSTALLATION 2
BEFORE YOU BEGIN
• Remove the phone from its packaging and inspect the phone for any damages.
• Verify that a station/account has been created for the user and DT700 phone.
• These steps only outline the setup of the equipment and connection of the phone
to the network. For information on configuring a DT700 phone for connection to the
network, contact your system administrator.
• Read through the installation procedures and assemble any equipment required to
install the phone (10 BASE-T/100 BASE-T/TX LAN cable, power adapter, tapered
rod, screwdrivers, etc.).
ADJUSTING ANGLE OF TILT LEG
The angle of the tilt leg can be adjusted in four levels.

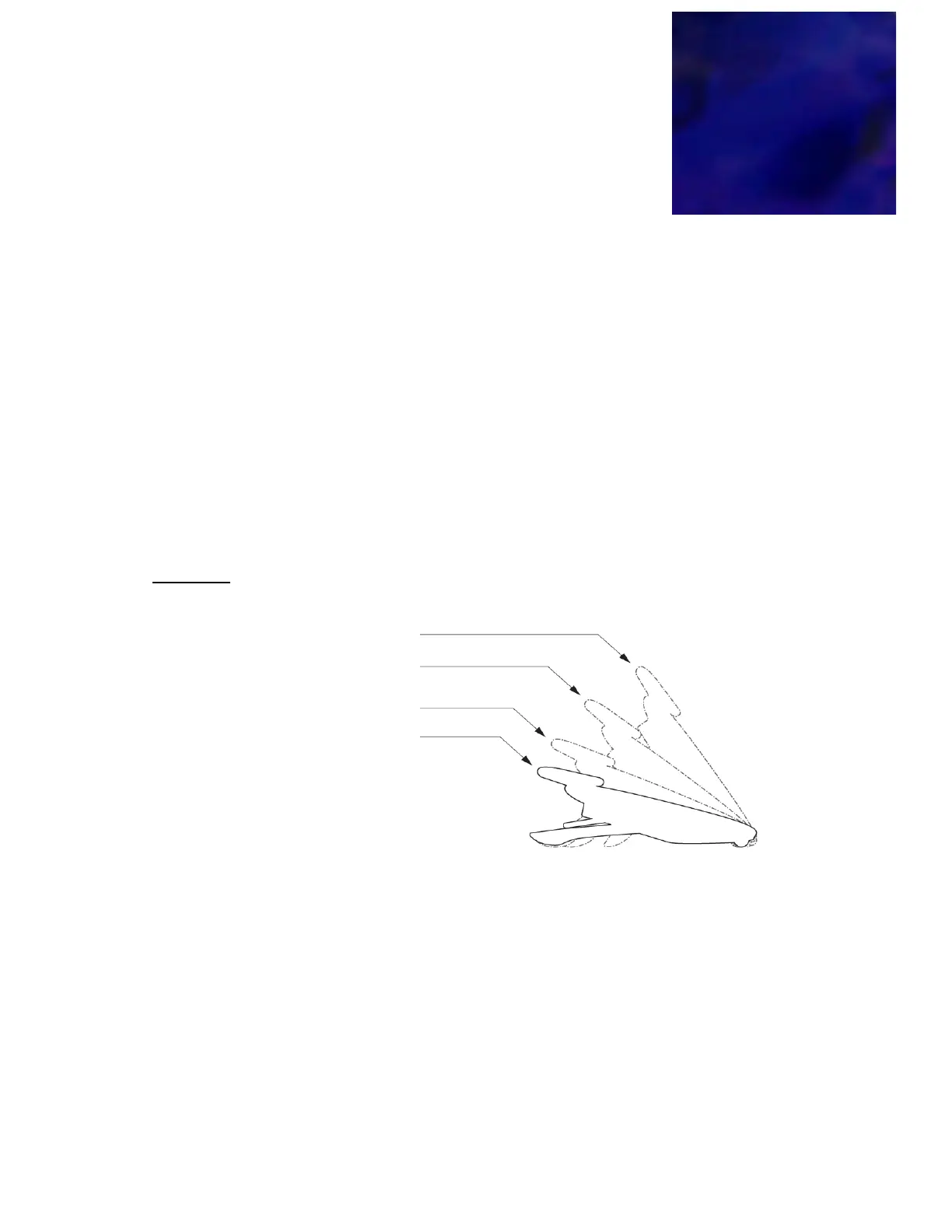

Figure 2.1 Tilt Levels
To raise tilt leg
1 Turn the phone upside down.
2 Adjust the tilt leg in the direction of the arrow until you hear it click.
First Level
Second Level
Third Level
Fourth Level
