NEC DT700 - To Connect LAN Cable to the Phone

. . . . .
INSTALLATION
DT700 User Manual 2-29

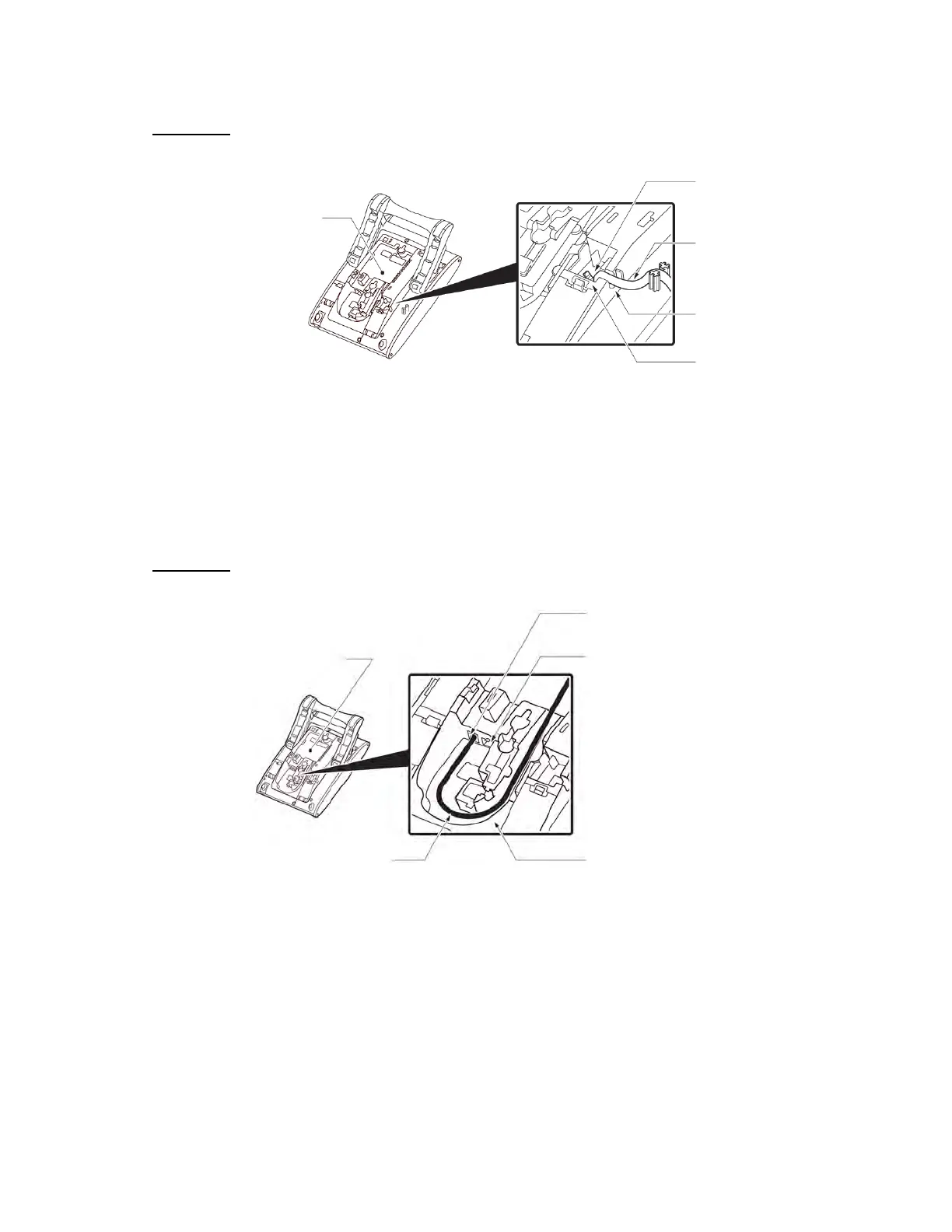

Figure 2.8 Handset Connection
To connect LAN cable to the phone
You will need a 10 BASE-T/100 BASE-T/TX LAN cable (Straight) to connect the
phone to your network.
1 Connect the 10 BASE-T/100 BASE-T/TX LAN cable to the LAN port on the DT700 phone
and to an open port on a device such as a Hub or PoE (Power Over Ethernet) switch on
the local area network.
2 Thread the LAN cable through the groove on the back of the phone.
Figure 2.9 Phone/LAN Connection
3 If you have not connected the DT700 phone to a PoE jack, connect the AC/DC adapter to
the phone as shown below to supply power to the Power Over Ethernet phone.
Phone
Modular
Plug
Coiled Cord
Groove
HANDSET
Connector
To LAN
To PC
Groove
LAN Straight
Cable
Phone
