INSTALLATION
2-34 DT700 User Manual
Wall Mounting Clearance Requirements
The phone should be mounted to allow for the following clearances for the phone with
the DT730 (ITL-24D) shown as an example.

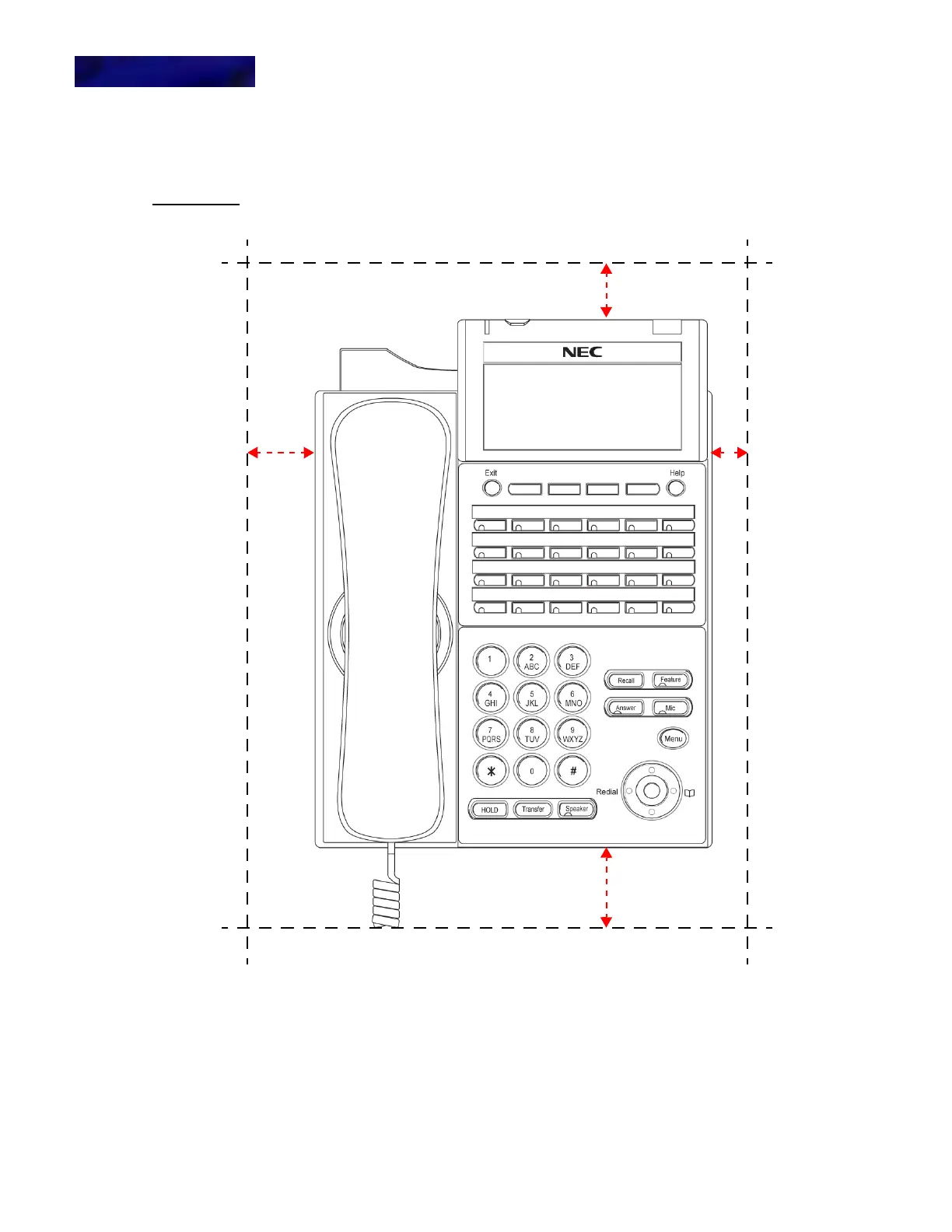

Figure 2.18 Wall Mounting Clearance Diagram
To mount the phone on the wall
1 Remove the handset from the handset cradle.
2 Remove the hanger piece from the handset cradle, flip it oven and then turn it upside
down, and then insert it into the hanger slot until the hanger clicks.
25 mm
25 mm
35 mm
15 mm
