INSTALLATION
DT700 User Manual 2-35

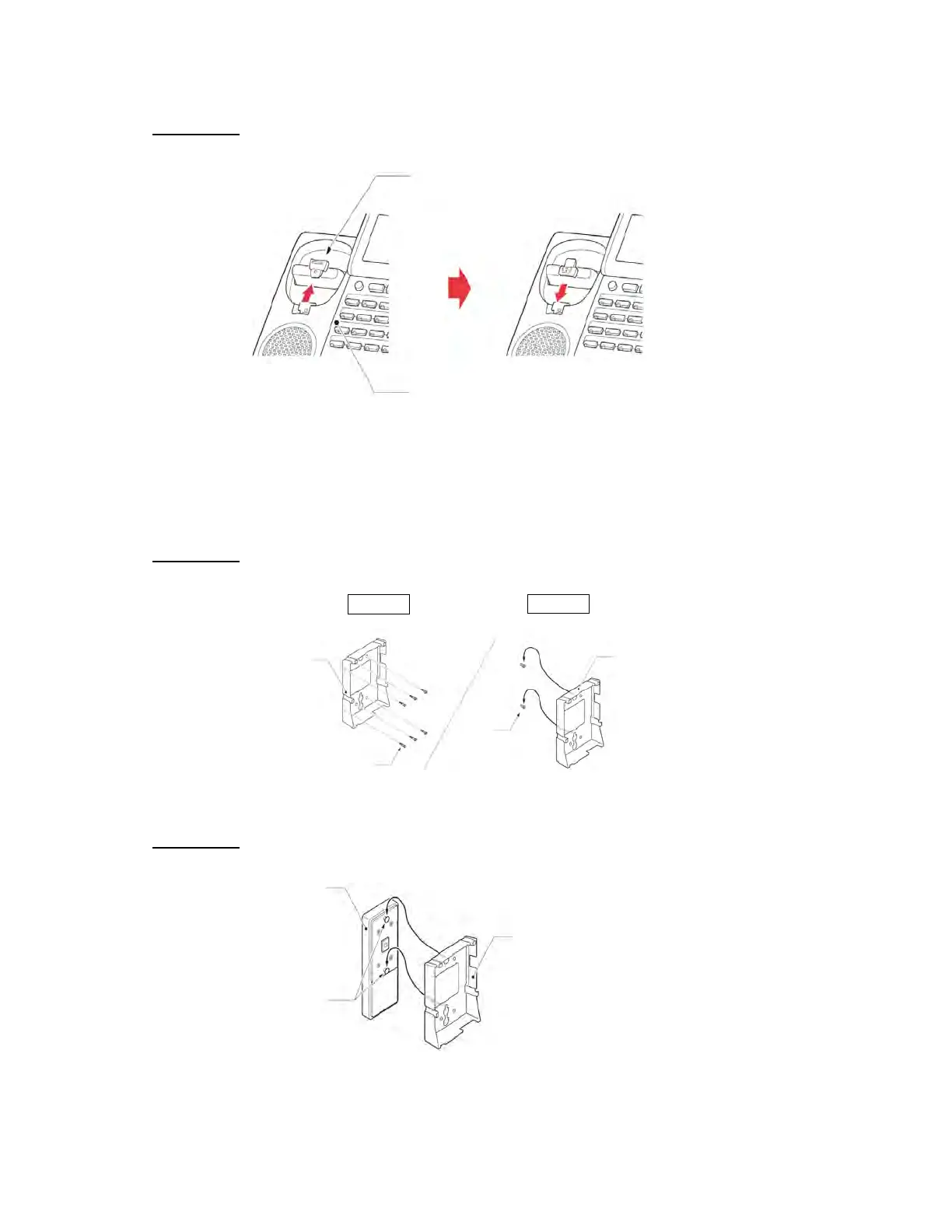

Figure 2.19 Mount hanger piece
3 Turn the phone upside down, and flatten the tilt leg and stopper, or remove the tilt leg
(see “To remove tilt leg” on page 2-26).
4 Attach the wall mount to the wall directory or the wall plate.
When attaching the wall mount unit directly to the wall:
5 Secure the wall mount unit with the six screws (included with the phone) or hang the
wall mount unit on the wall with two screws, inserted into the wall.
Figure 2.20 Wall Mount Install
When attaching wall mount unit to the wall plate:
6 Attach wall mount unit to posts on the wall plate as shown in the figure below.
Figure 2.21 Wall Mount Install
7 Insert the four tabs on the wall mount unit in the tab slots on the back of the phone.
Hanger piece
Phone
Screws
(supplied)
Screws
WM-L
Unit
WM-L Unit
Wall
Wall
WM-L Unit
Switch
box
Posts
