2. Setting Up Your Projector
52
Use the cable and solderless terminal that is suitable for the specific type of terminal block as
shown in the following table.
This specifies the model name of the recommended solderless terminals. Use these parts or
equivalent parts. If you are unable to use the recommended solderless terminals, ensure that
you use terminals of the dimensions shown in the following diagram.
Warning
 Always use solderless terminals with the dimensions as shown in the
following diagram.
 The use of parts with dimensions other than as designated creates a
risk of the AC power supply unit short circuiting due to the terminal
block generating heat and melting because the terminal block of the
lamp power supply cannot be attached correctly.
Power terminal (Black)
JIS IEC/EN UL CSA
Thickness of compatible wiring
(using solderless terminal)
14 mm
2
14 mm
2
AWG6 or
AWG8
AWG6 or
AWG8
Solderless terminal dimensions M5 x 10
Tightening torque 2.0 ~ 2.5 Nm

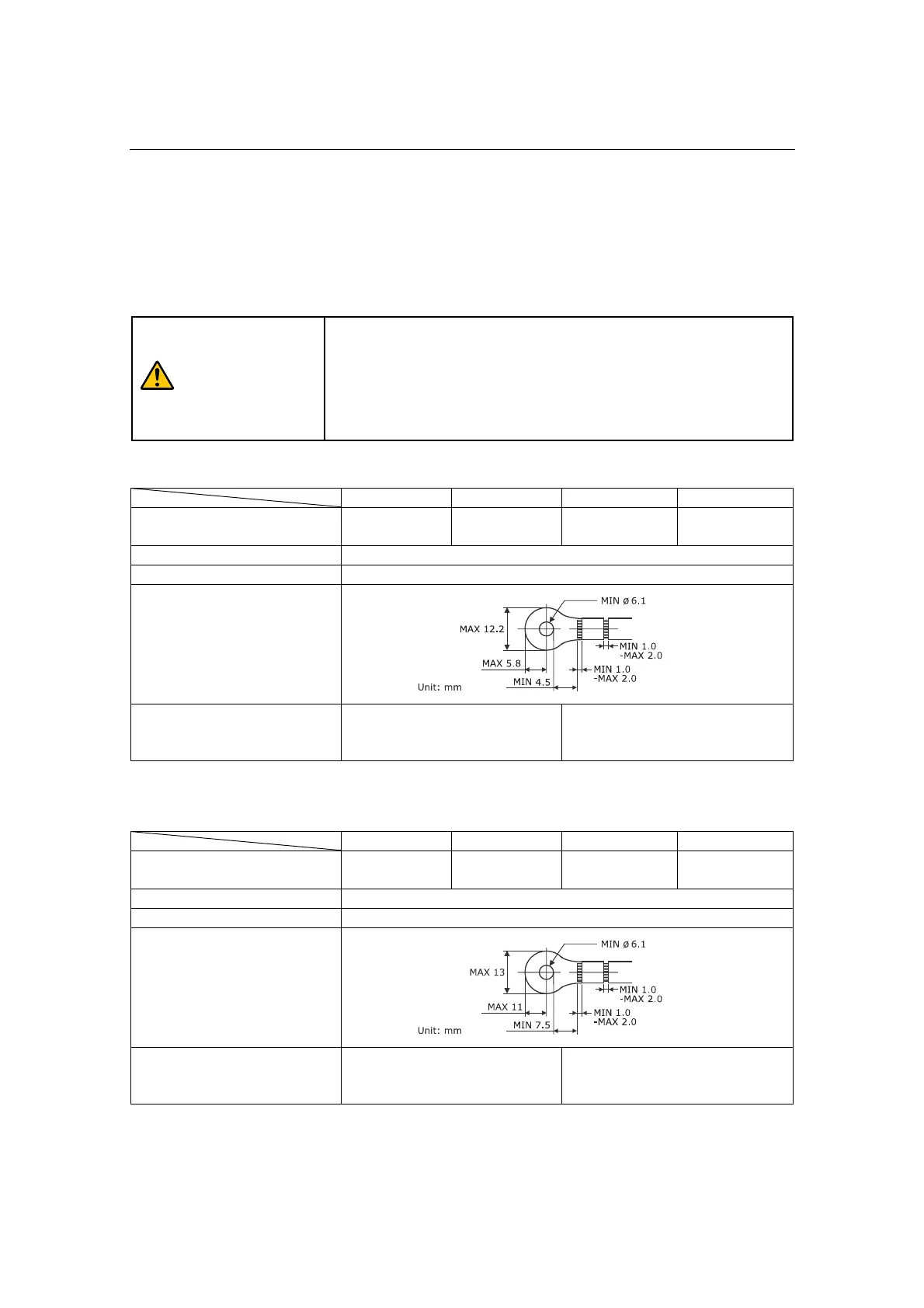

Solderless terminal dimensions
Solderless terminal
recommended part
(J.S.T parts)
Model R8-5 When using AWG6: Model R14-5
When using AWG8: Model R8-5
J.S.T: J.S.T. Manufacturing Co. Ltd.
Grounding terminal (Green/yellow)
JIS IEC/EN UL CSA
Thickness of compatible wiring
(using solderless terminal)
14 mm
2
14 mm
2
AWG6 or
AWG8
AWG6 or
AWG8
Solderless terminal dimensions M6 x 15
Tightening torque 3.5 ~ 5.0 Nm
Solderless terminal dimensions
Solderless terminal
recommended part
(J.S.T parts)
Model 8-8NS When using AWG6: Model R14-6
When using AWG8: Model 8-8NS
J.S.T: J.S.T. Manufacturing Co. Ltd.
