2. Setting Up Your Projector
91

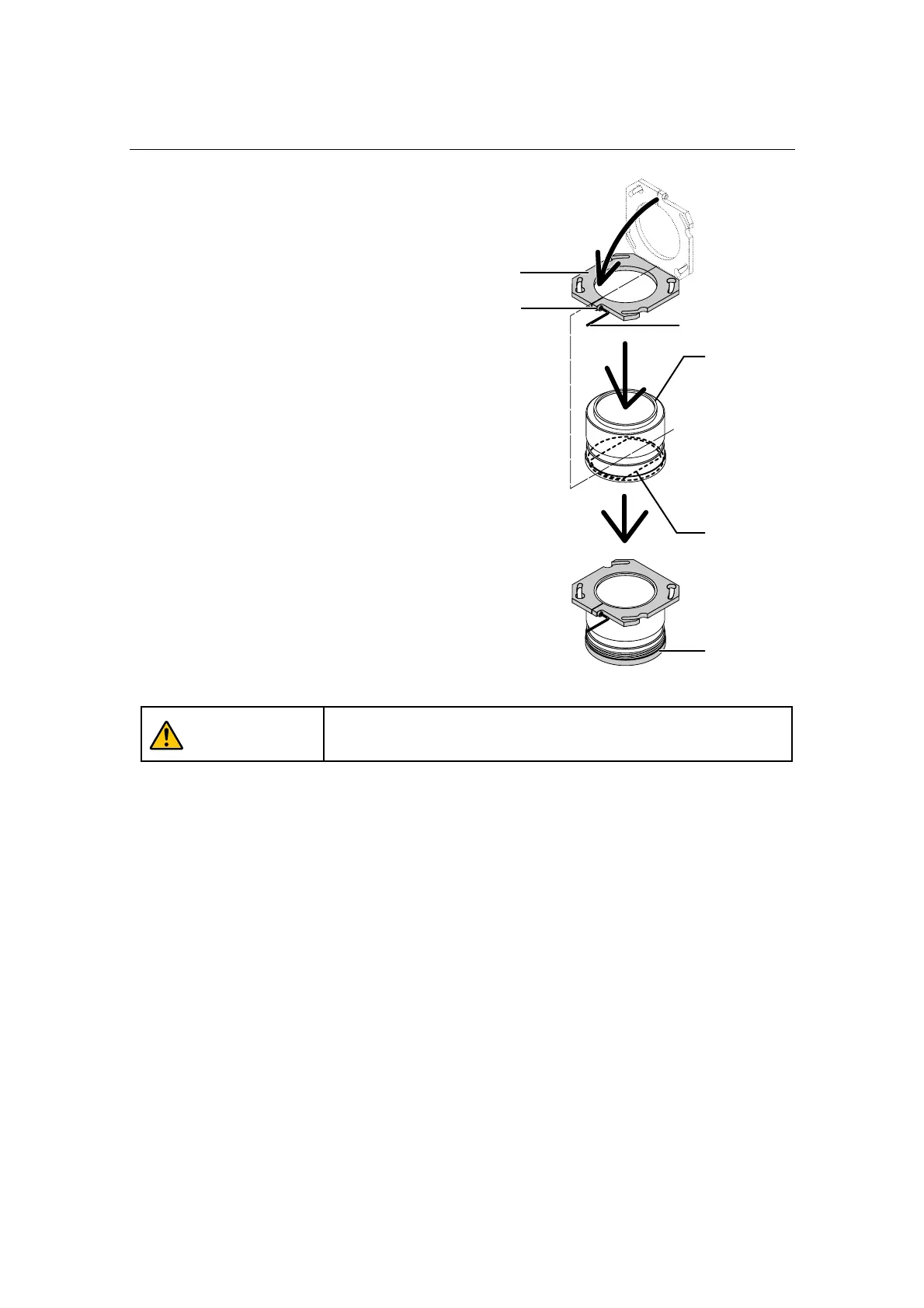

[2] Mount the lens holder onto
the wide converter lens.
<1> Loosen the lens holder’s lens fixing
bolt.
<2> Line up the lens holder with the wide
converter lens (perpendicularly) and
mount it on the wide converter lens.
(Be careful not to touch the lens.)
<3> Tighten the lens holder’s lens fixing
bolt.
Caution
To prevent damaging the lens, be sure to attach the lens cap over the
lens when performing this operation.
Lens holder
Lens fixing bolt
Lens cap
Alley key
(for M6 screws)
Wide
converter Lens
Front lens
direction
