the new controller shelf by closing the cover and using the handles to slide the controller into the
controller shelf.
Install battery
You must install the battery into the replacement controller canister. Align the new battery with the
side of the controller and then plug the connector into the board.
Before you begin
• You have the battery from the original controller canister, or a new battery that you ordered.
• You have the replacement controller canister.
• You have an ESD wristband, or you have taken other antistatic precautions.
Steps
1.

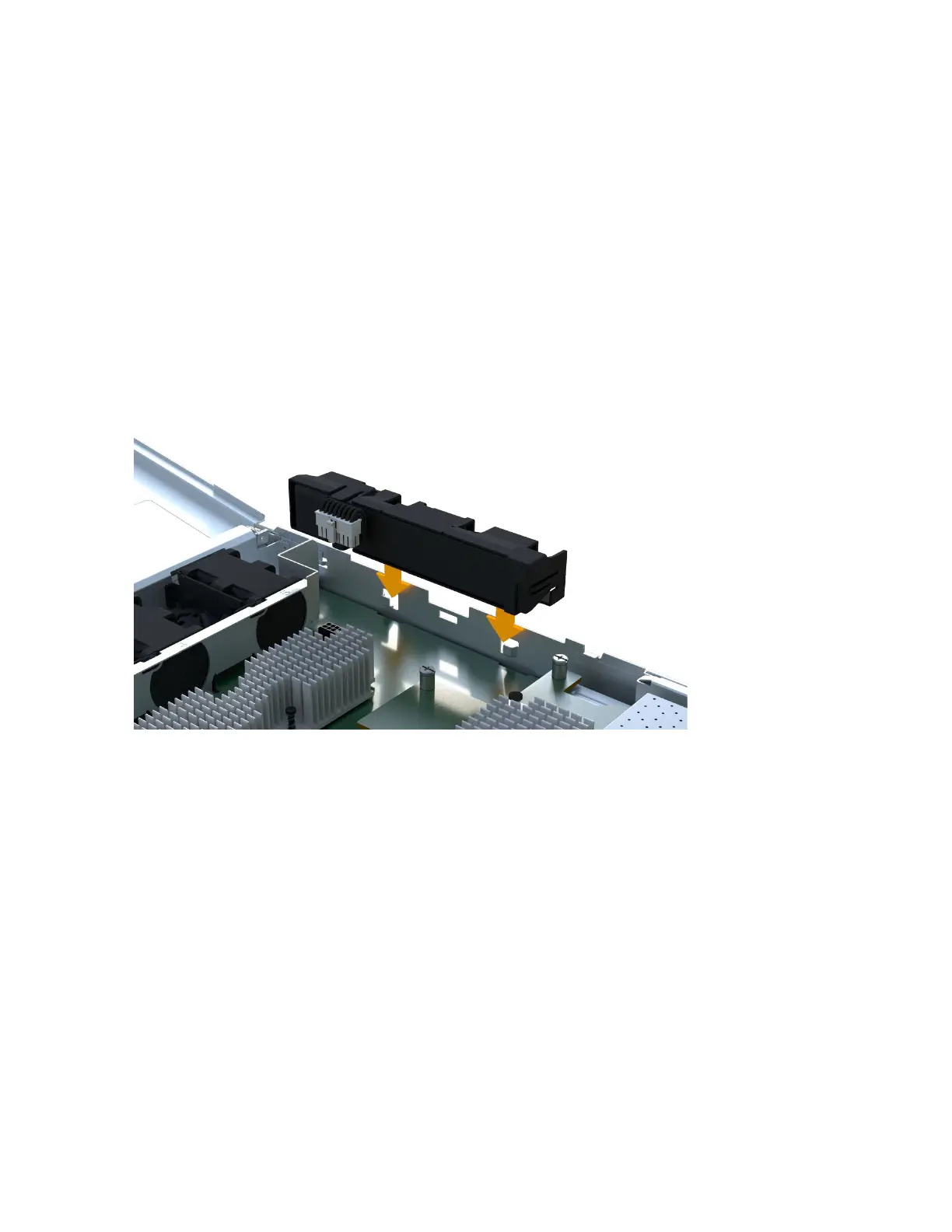

Insert the battery into the controller by lining up the battery casing with the metal latches on
the side of the controller.
The battery clicks into place.
2. Plug the battery connector back into the board.
After you finish
Go to
Install host interface card
.
Install host interface card
If you removed a HIC from the original controller canister, you must install that HIC in the new
controller canister. Install the HIC by gently lowering the card into place and hand tightening the
single thumbscrew.
Before you begin
• You must have a replacement controller canister with the same part number as the controller
canister you are replacing.
• You must have a #1 Phillips screwdriver.
• You have an ESD wristband, or you have taken other antistatic precautions.
Steps
1. Using a #1 Phillips screwdriver, remove the two screws that attach the blank faceplate to the
replacement controller canister, and remove the faceplate.
Maintaining EF300 and EF600 Hardware
24
Controllers
