Steps

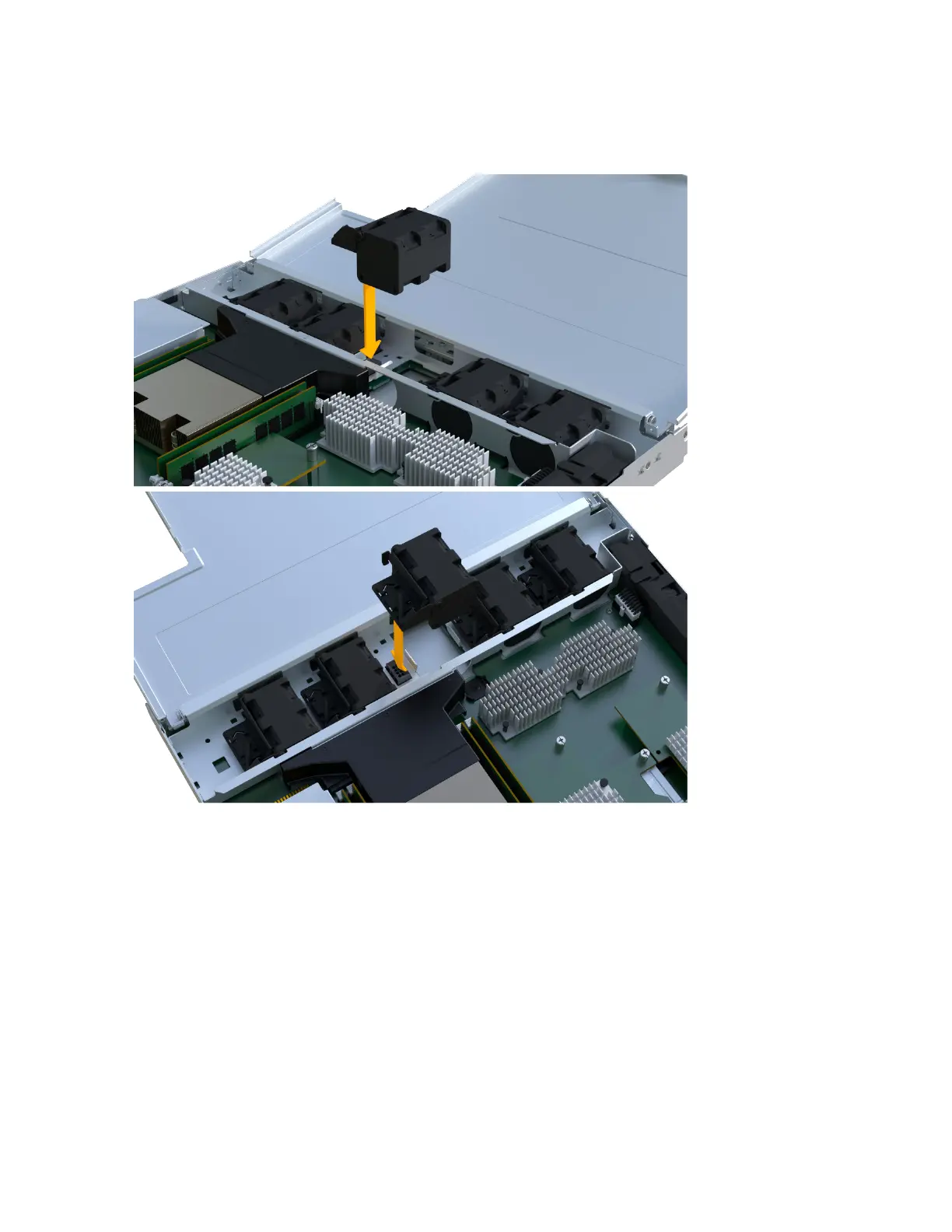

1. Slide the fan all the way into the replacement controller.
2. Repeat until all fans are installed.
After you finish
Go to
Install new controller canister
Install new controller canister
After installing the battery, power supply, DIMMs, fans, and the host interface card (HIC), if one
was initially installed, you can install the new controller canister into the controller shelf. Install
the new controller shelf by closing the cover and using the handles to slide the controller into the
controller shelf.
Steps
1. Lower the cover on the controller canister and secure the thumbscrew.
2. While squeezing the controller handles, gently slide the controller canister all the way into the
controller shelf.
Note: The controller audibly clicks when correctly installed into the shelf.
Maintaining EF300 and EF600 Hardware
28
