The DIMM fits tightly in the slot, but should go in easily. If not, realign the DIMM with the
slot and reinsert it.
Note: Visually inspect the DIMM to verify that it is evenly aligned and fully inserted into
the slot.

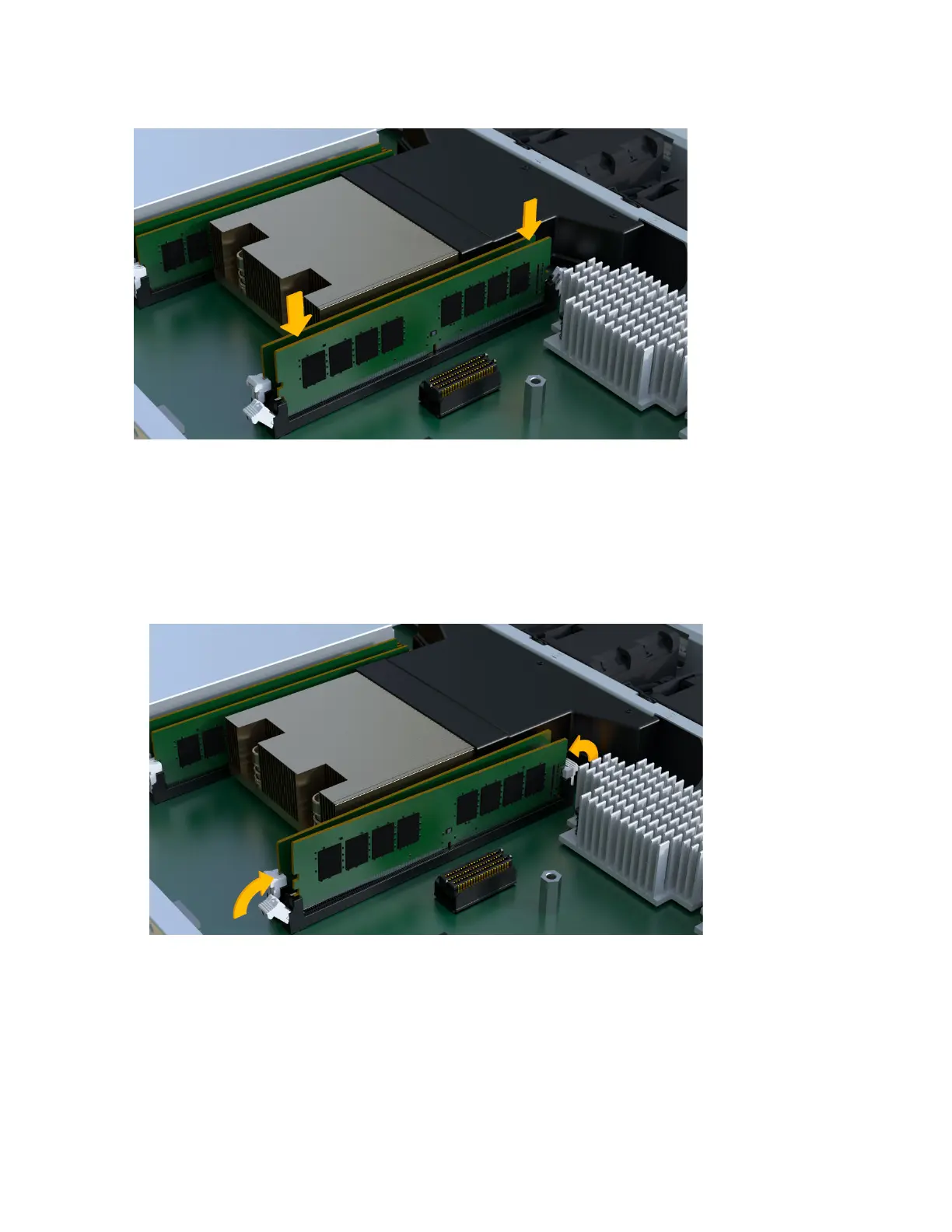

3. Push carefully, but firmly, on the top edge of the DIMM until the latches snap into place over
the notches at the ends of the DIMM.
Note: DIMMs fit tightly. You might need to gently press on one side at a time and secure
with each tab individually.
After you finish
Go to
Install Fans
Install fans
You must install the fans into the replacement controller canister. Install the fans by sliding them
into the shelf.
Before you begin
• You have an ESD wristband, or you have taken other antistatic precautions.
Maintaining EF300 and EF600 Hardware
27
Controllers
