1. Click the QoS CoS tab, and then click the Advanced DSCP to Queue Mapping link.
2. Click Cancel to cancel the configuration on the screen and reset the data on the screen to the
latest value of the switch.
3. If you make changes to the page, click Apply to apply the changes to the system.

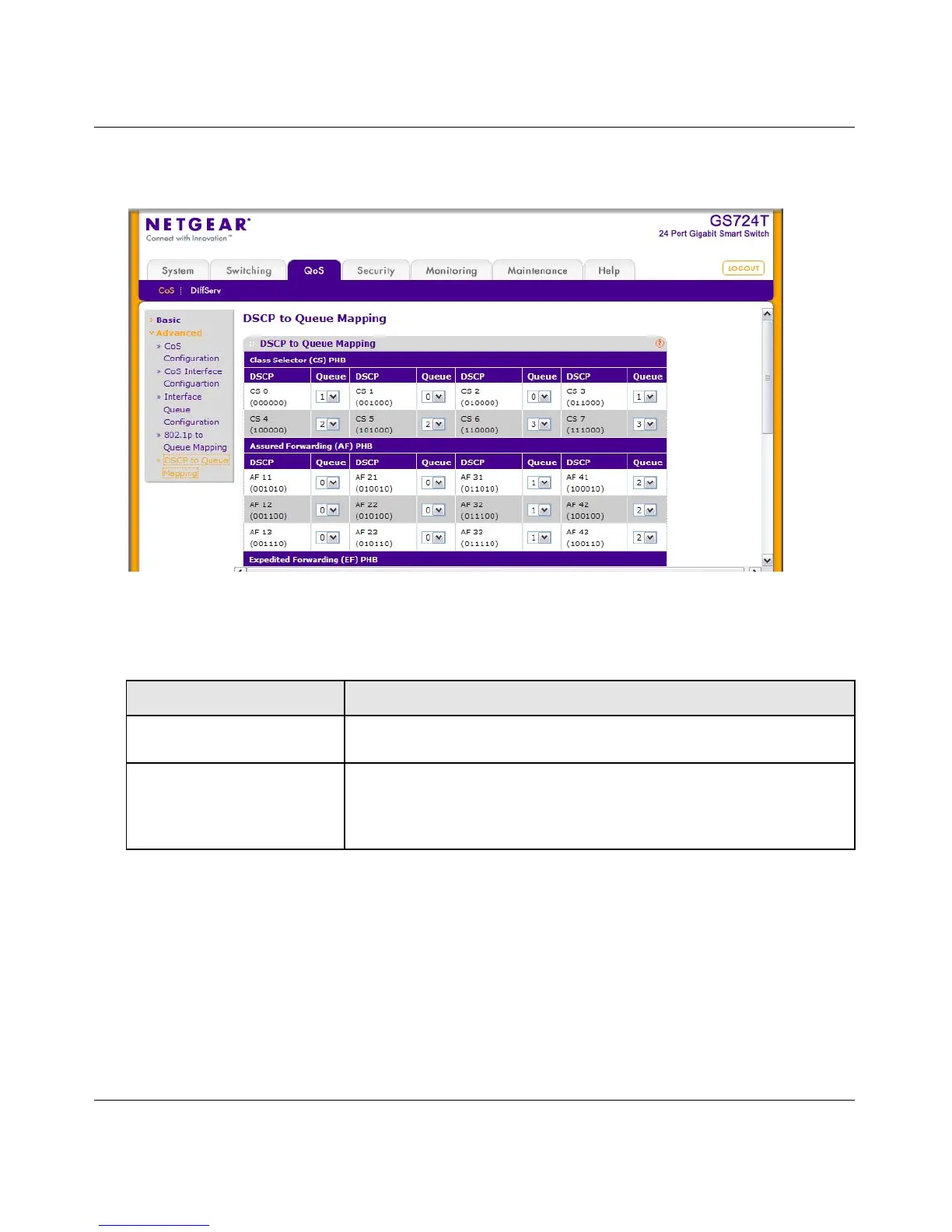

Figure 4-5
Table 4-5. IP DSCP Mapping Configuration Fields
Field Description
DSCP Lists the DSCP values to which you can map an internal traffic class.
The values range from 0–63.
Queue The traffic class is the hardware queue for a port. Higher traffic class
values indicate a higher queue position. Before traffic in a lower queue
is sent, it must wait for traffic in higher queues to be sent. Valid range is
0–3.
