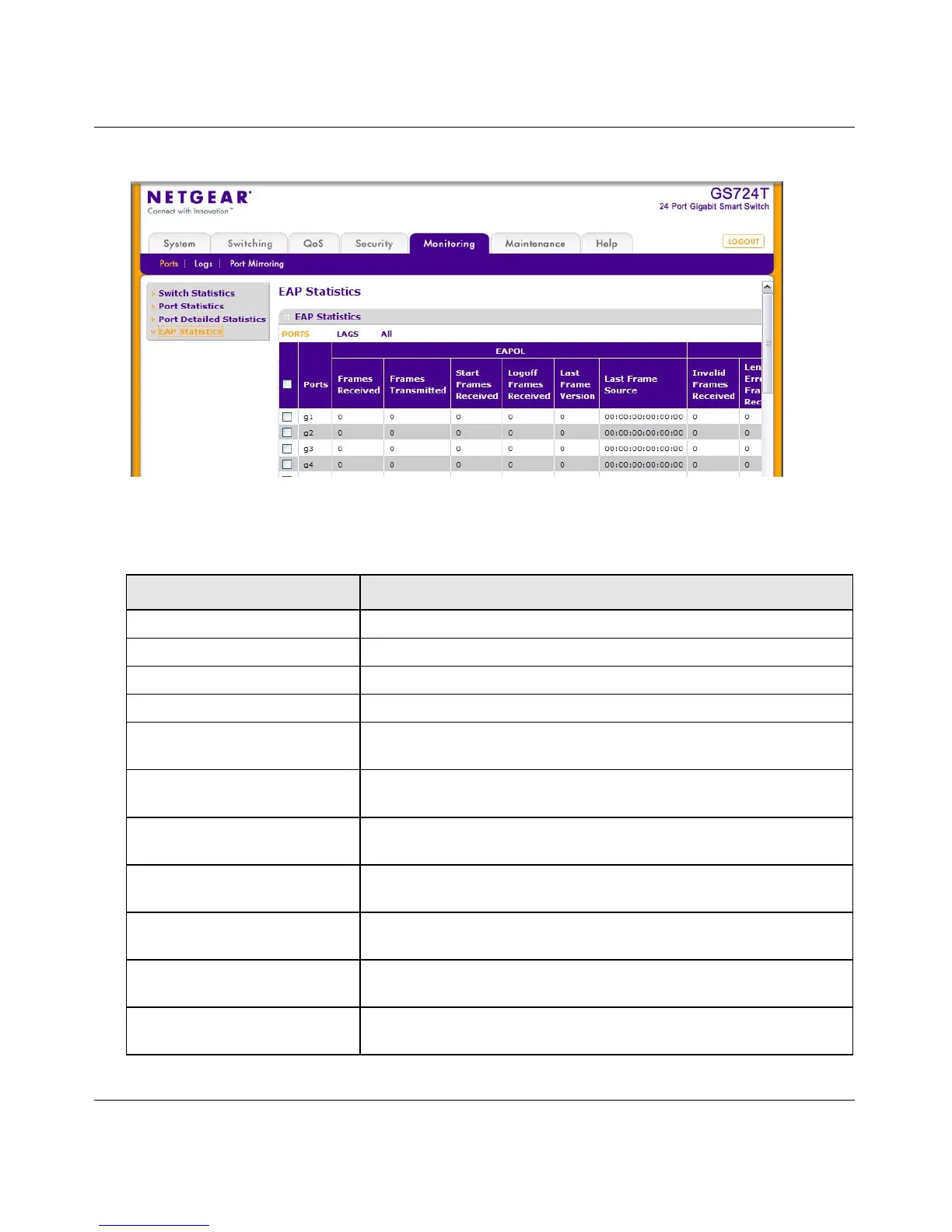

Figure 6-4
Table 6-4. EAP Statistics Fields
Field Description
Ports Specifies the interface which is polled for statistics.
Frames Received Displays the number of valid EAPOL frames received on the port.
Frames Transmitted Displays the number of EAPOL frames transmitted through the port.
Start Frames Received Displays the number of EAPOL Start frames received on the port.
Log off Frames Received Displays the number of EAPOL Log off frames that have been
received on the port.
Last Frame Version Displays the protocol version number attached to the most recently
received EAPOL frame.
Last Frame Source Displays the source MAC Address attached to the most recently
received EAPOL frame.
Invalid Frames Received Displays the number of unrecognized EAPOL frames received on this
port.
Length Error Frames
Received
Displays the number of EAPOL frames with an invalid Packet Body
Length received on this port.
Response/ID Frames
Received
Displays the number of EAP Respond ID frames that have been
received on the port.
Response Frames Received Displays the number of valid EAP Response frames received on the
port.
