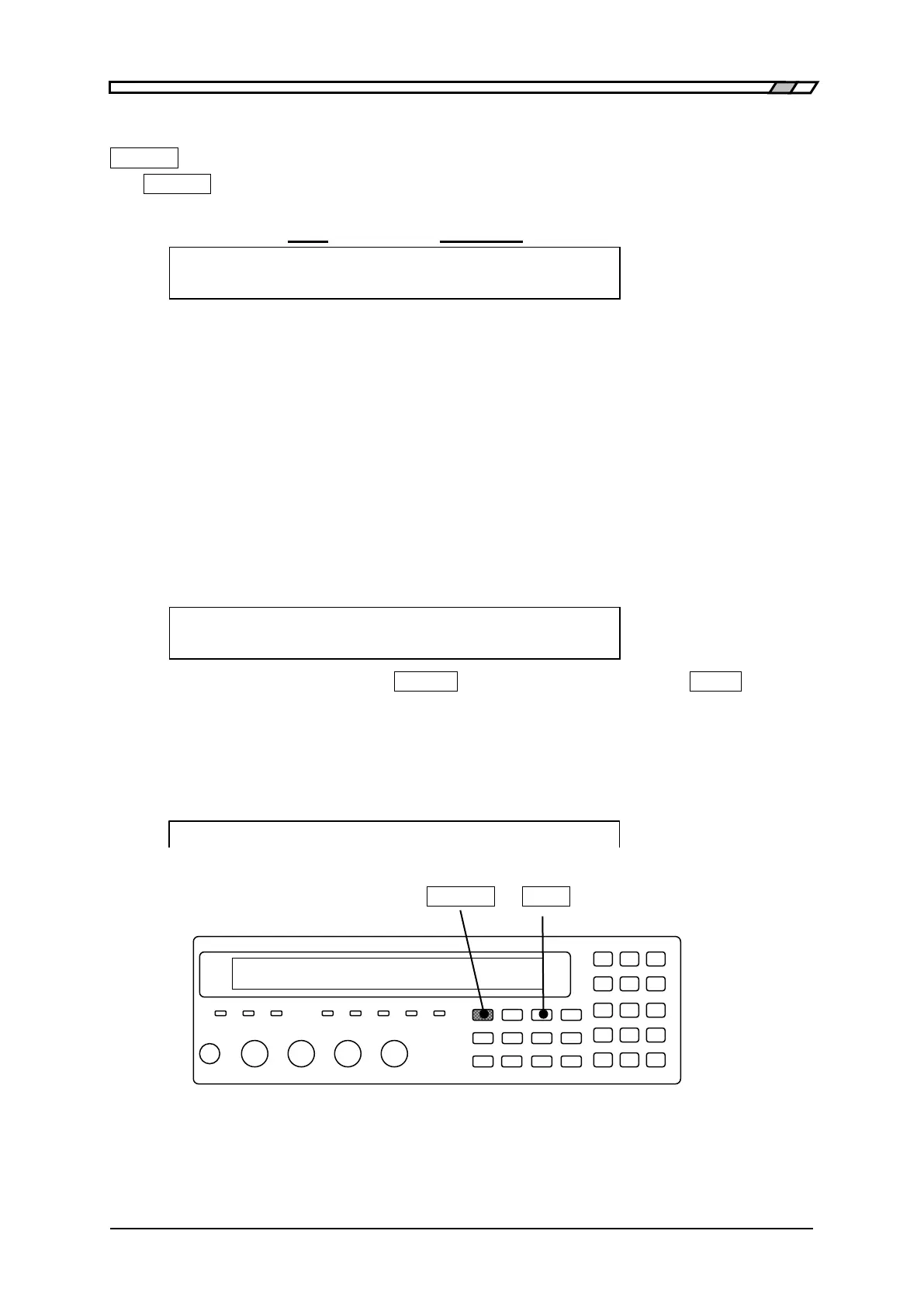

4.3 Displaying the Deviation from the Reference Value
4-8 ZM2376
 Displaying the deviation of secondary parameter
_SHIFT_ + [ ∆Sec ]
_SHIFT_ + [∆Sec] keys to display the Displaying the deviation of secondary parameter menu.
Display format Reference value for deviation display
Deviation Sec:ABS REF:+1.23456 Current setting
0)ABS 1)DEV 2)DEV% 3)REF Options
ABS Displays the measured value as is. (Initial value)
DEV Displays the deviation from reference value.
Deviation = Measured value – Reference value
DEV% Displays the deviation % from the reference value.
Deviation % = ((Measured value – Reference value) / Reference value) × 100
REF Display the reference value setting menu of secondary parameter.
Select one of ABS, DEV or DEV% as the display format with the numeric key.
To display the deviation or deviation%, previously set the reference value.
If a setting is made or the EXIT operation is performed, the measurement screen comes back.
REF: The reference value setting menu of the secondary parameter is as follows.
Sec Reference:+1.23456 Current setting
±(0.0000p to 999999M) Available value ranges
Enter the numeric value and use the _ENTR_ key or the exponential part input _EXP_ + [µ] keys
for instance. If a setting is made or the EXIT operation is performed, one-previous menu comes
back.
When the deviation or deviation% is selected, the “∆” displayed in front of measured value of
secondary parameter.
Cp:+12.3456µF ∆D :+0.12345 1.00000k
_SHIFT_ _Sec_ | [∆Sec]
