NF ZM2376 - Trigger

3.5 Basic Operations
3-41 ZM2376
3.5.6.4 Trigger
The ZM2376 receive a trigger signal to start the measurement.
With the trigger setting menu, set the trigger source and measurement sequence.
( a ) Continuous drive ( b ) Triggered drive ( c ) When measuring DC resistance

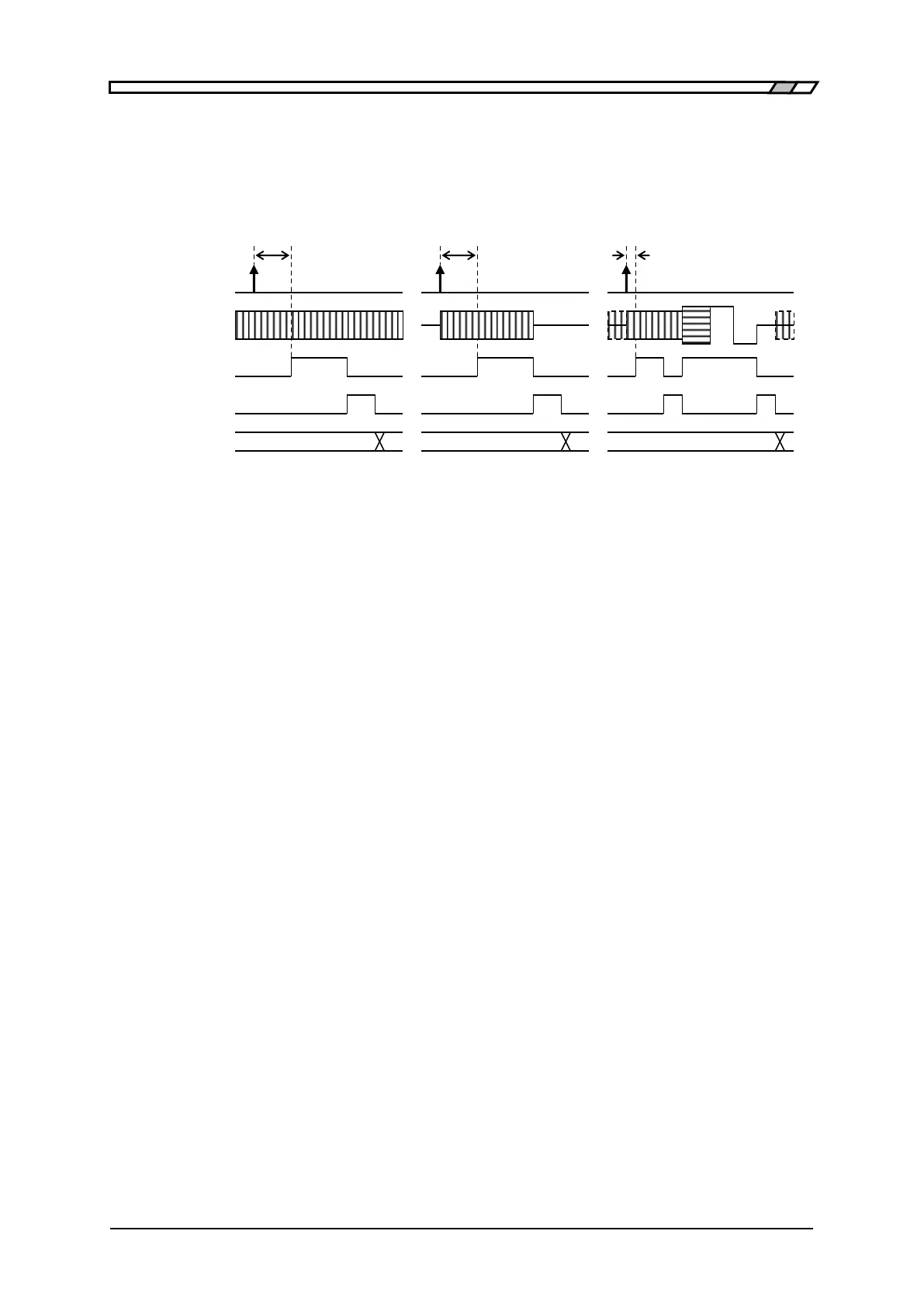

Figure 3-6 Measurement sequence
Trigger signal
Measurement
signal output
Signal
acquisition
Parameter
calculation
Measurement
result
Trigger delay time
Trigger delay time
Trigger delay time
Rdc
Z
