3.5 Basic Operations
3-58 ZM2376
3.5.6.8 SHORT Correction
Executing the SHORT correction can make the impedance zero when the measurement terminals are
shorted.
The SHORT correction values can be measured by shorting the measurement terminals, or can be set
with numeric values.

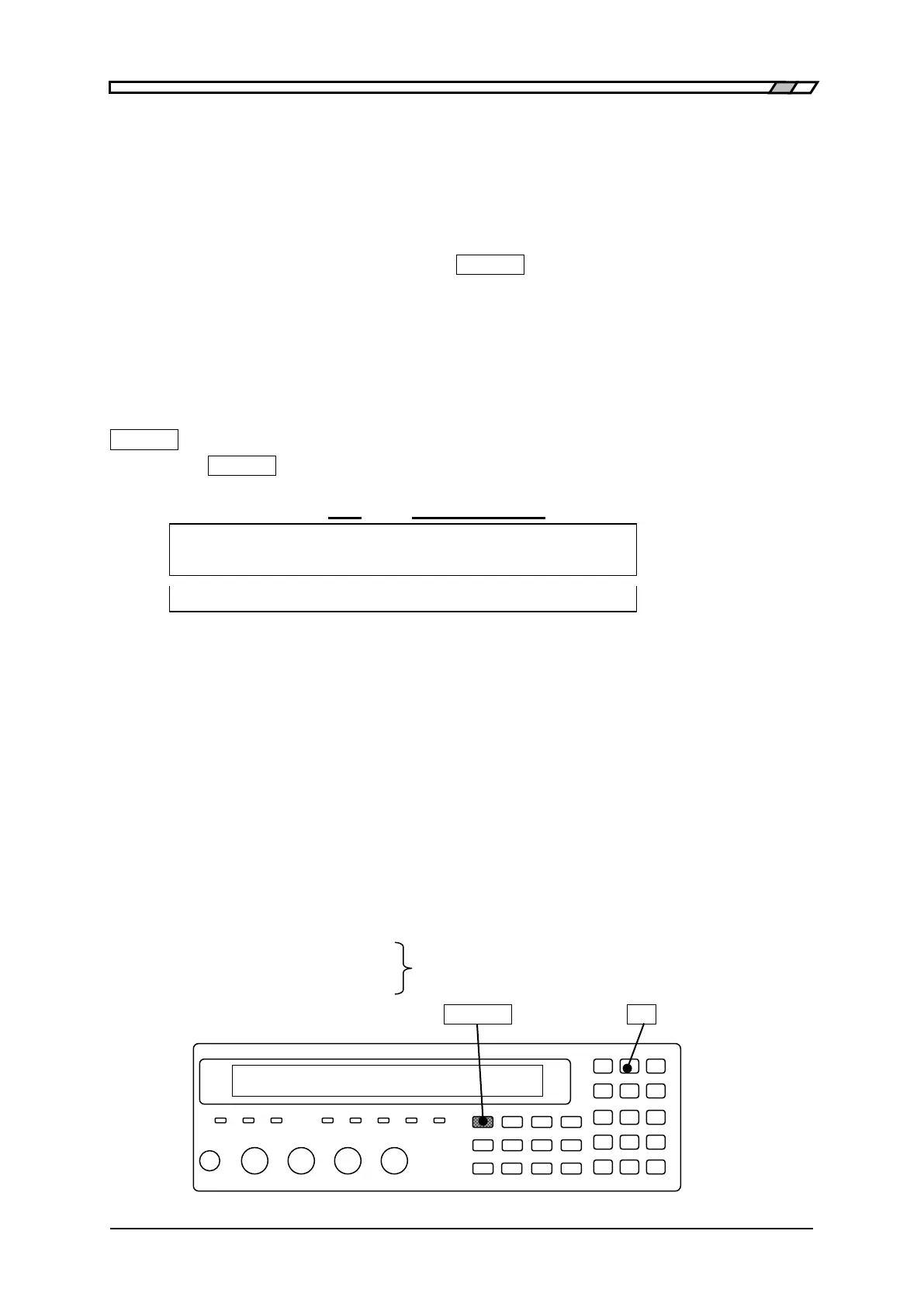

With the measurement terminals short, press the _SHIFT_
+ [SHORT] keys to display the SHORT
correction menu, and select Measure, so that the impedance when the measurement terminals are
shorted can be corrected to zero.
To set the spot SHORT correction value at the current measurement frequency with a numeric value,
set the correction value in the spot SHORT correction menu and finally select ON.
The operation of SHORT correction is executed with the SHORT correction menu.
_SHIFT_
+ [ SHORT ]
Press the _SHIFT_
+ [SHORT] keys to display the SHORT correction menu.
OFF|ON Lower limit - Upper limit or SPOT
SHORT Correction: OFF 100Hz - 1.0MHz Current setting
0) OFF 1) ON 2) Measure 3) SPOT >NEXT Options (first page)
4) LowFREQ 5) UppFREQ <PREV Options (second page)
OFF Disables the SHORT correction and returns to the measurement screen.
SHORT correction value is held internally.
ON Enables the SHORT correction and returns to the measurement screen.
Measure Measures the SHORT correction value.
Upon completion, enables the SHORT correction and returns to the
measurement screen.
SPOT Displays the spot SHORT correction menu.
LowFREQ Displays the lower limit frequency setting menu for the global correction.
UppFREQ Displays the upper limit frequency setting menu for the global correction.
Perform the EXIT operation to return to the measurement screen.
The lower and upper limit frequencies set for the global correction are common to the OPEN,
SHORT, and LOAD corrections.
Lower limit frequency setting menu
Upper limit frequency setting menu “3.5.6.7 OPEN Correction”
_SHIFT_ _8_ | [SHORT]
