3.3 Operation Tree
3-11 ZM2376
3.3 Operation Tree
An operation tree when ZM2376 is operated from the panel is shown below.
For the expression of operations, see “3.5.2 Basic Key Operations”.

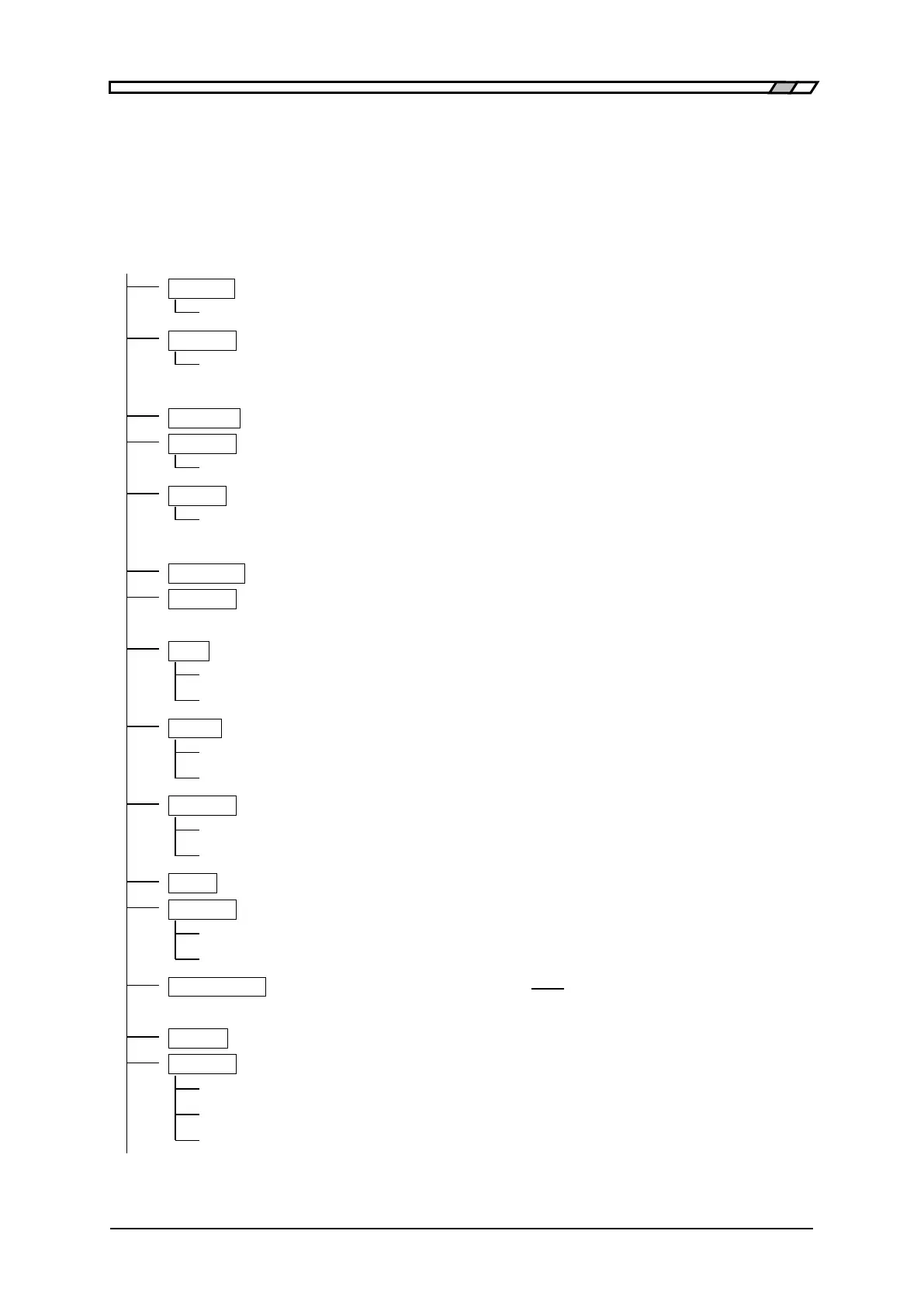

Operation Tree (1/4)
_FREQ_: { Measurement frequency setting menu }
Frequency selection | { Measurement frequency input menu }
_SHIFT_ + [LIST]: { Multi-measurement setting menu }
Mode selection | { List input menu }
_LEVEL_: { Measurement signal level setting menu }
_SHIFT_ + [ALC]: { ALC setting menu }
{ Current setting menu }
_BIAS_: { DC bias setting menu }
{ DC bias voltage input menu } | Mode selection
_SPEED_: { Measurement speed setting menu }
_SHIFT_ + [AVERAGE]: { Averaging count setting menu }
_Pri_: { Primary parameter selection menu }
Direct selection L / C / R / ...
Auto selection Disabled / Enabled
_CKT_: { Equivalent circuit selection menu }
Series / Parallel
Auto selection Disabled / Enabled
_SHIFT_ + [∆Pri]: { Primary parameter deviation display menu }
Display format selection
{ Reference value setting menu }
_Sec_: { Secondary parameter selection menu }
_SHIFT_ + [∆Sec]: { Secondary parameter deviation display menu }
Display format selection
{ Reference value setting menu }
_AUX DISP_: { Auxiliary display selection menu } { Bin number input menu }
_TRIG_: Manual trigger
_SHIFT_ + [TRIG MODE]: { Trigger setting menu }
Trigger source selection
{ Trigger delay setting menu }
{ Triggered drive setting menu }
Continued
