NF ZM2376 - Setting of Secondary Parameters

3.5 Basic Operations
3-31 ZM2376

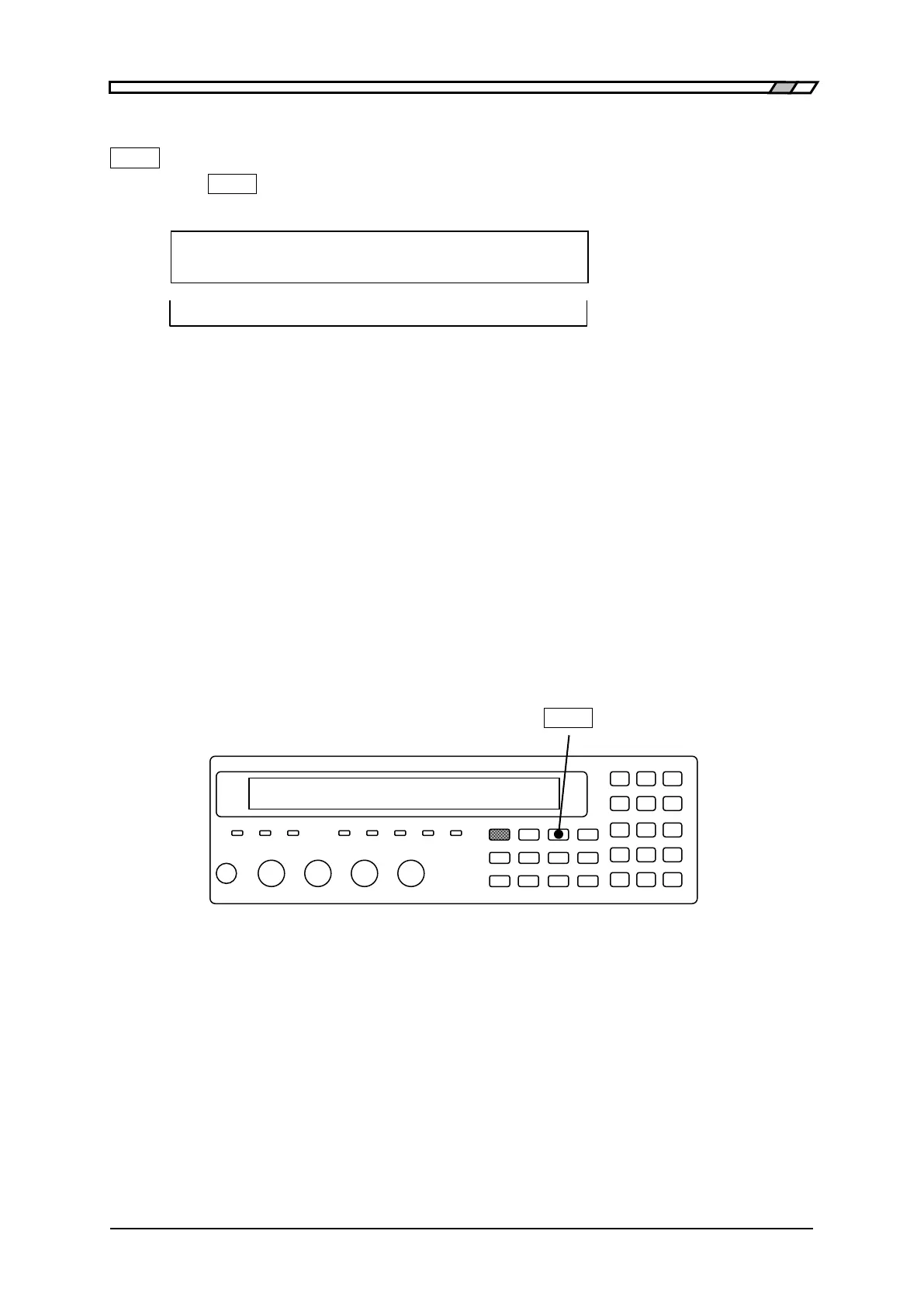

3.5.5.3 Setting of Secondary Parameters
_Sec_
Press the _Sec_ key to display the secondary parameter selection menu (see below), and select a
secondary parameter with a numeric key.
Secondary parameter : D Current setting
0)Q 1)D 2)θ 3)X 4)B 5)Rs >NEXT Options (first page)
6)Rp 7)G 8)Lp 9)Rdc <PREV Options (second page)
Q Quality factor (=1/D)
D Dissipation factor (= tanδ)
θ Phase angle of impedance (unit: degree “°”)
X Reactance Xs expressed with series equivalent circuit (unit: Ohm “Ω”)
B Susceptance Bp expressed with parallel equivalent circuit (unit: Siemens “S”)
Rs Resistance Rs expressed with series equivalent circuit (= ESR, unit: Ohm “Ω”)
Rp Resistance Rp expressed with parallel equivalent circuit (unit: Ohm “Ω”)
G Conductance Gp expressed with parallel equivalent circuit (unit: Siemens “S”)
Lp Inductance Lp expressed with parallel equivalent circuit (unit: Henry “H”)
Rdc Direct-current resistance Rdc (unit: Ohm “Ω”)
Any secondary parameters can be selected regardless of a setting of equivalent circuit.
If a setting is made or the EXIT operation is performed, the measurement screen comes back.
_Sec_
A display range of each secondary parameter is as follows:
Q, D ±(0.00000 - 99999.9)
θ ±(0.000° - 180.000°)
Rs, Rp, X, Rdc ±(0.000mΩ - 999.999MΩ)
G, B ±(0.00nS - 9.99999kS)
Lp ±(0.000nH - 999.999MH)
The display range is limited by the measurement range.
