4.7 Changing the Contents Displayed on the Second Line (Auxiliary Display)
4-37 ZM2376
4.7 Changing the Contents Displayed on the Second Line (Auxiliary
Display)
Normally the specified setting information is displayed on the second line (Auxiliary display) of
measurement screen.
It is possible to change those contents into other setting information or voltage/current monitor
values.
_AUX DISP_

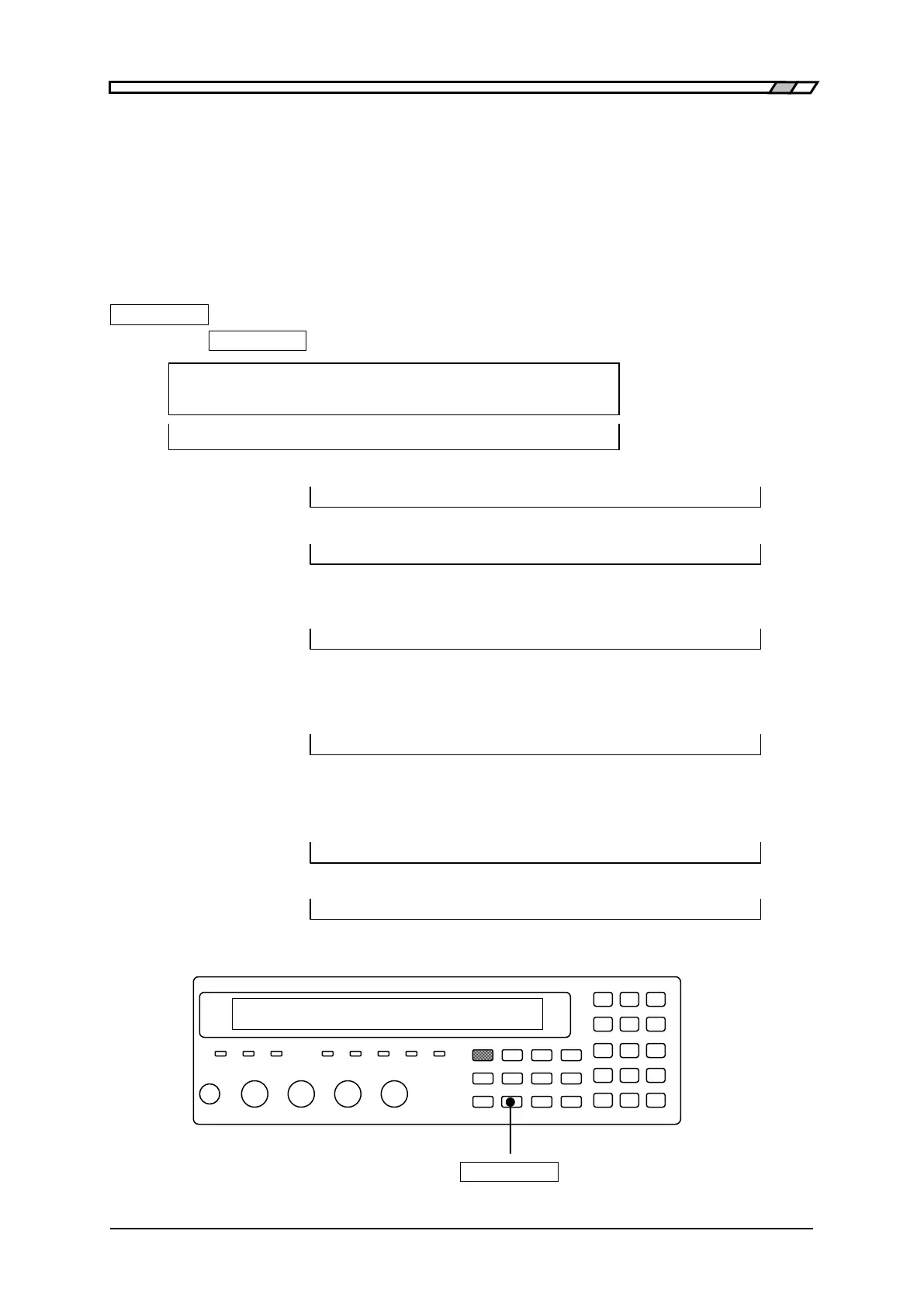

Press the _AUX DISP_ key to display the auxiliary display selection menu.
Aux Display:Status Current setting
0)Status 1)Pri-Limit 2)Sec-Limit >NEXT Options (first page)
3)P-S REF 4)I-V 5)Z- 6)List <PREV Options (second page)
Status Measurement condition (initial value)
A100kΩ FAST100 Int OpShLd1m • • • ex.
Pri- Limit Lower and upper limit values of primary parameter (specified Bin)
10:+970.000nF to +1.03000µF • • • ex.
The Bin number input menu is displayed. Specify the Bin number there.
Sec-Limit Lower and upper limit values of secondary parameter
Sec+0.00000 to +12.0000m • • • ex.
Even if Pri-Limit and Sec-Limit are selected, the status appears when
comparator and limit comparison are disabled.
P-S REF Reference value for primary/secondary parameter deviation display
REF:P+1.00000µF S+100.000m • • • ex.
Even if P-S REF is selected, the status appears when the deviation display
and deviation comparison are disabled.
I-V Current/voltage monitor value
Im:+123.456mA Vm:+1002.34mV • • • ex.
Z- Impedance measured value
Z:+123.456kΩ :+ 1.567° • • • ex.
_AUX DISP_
