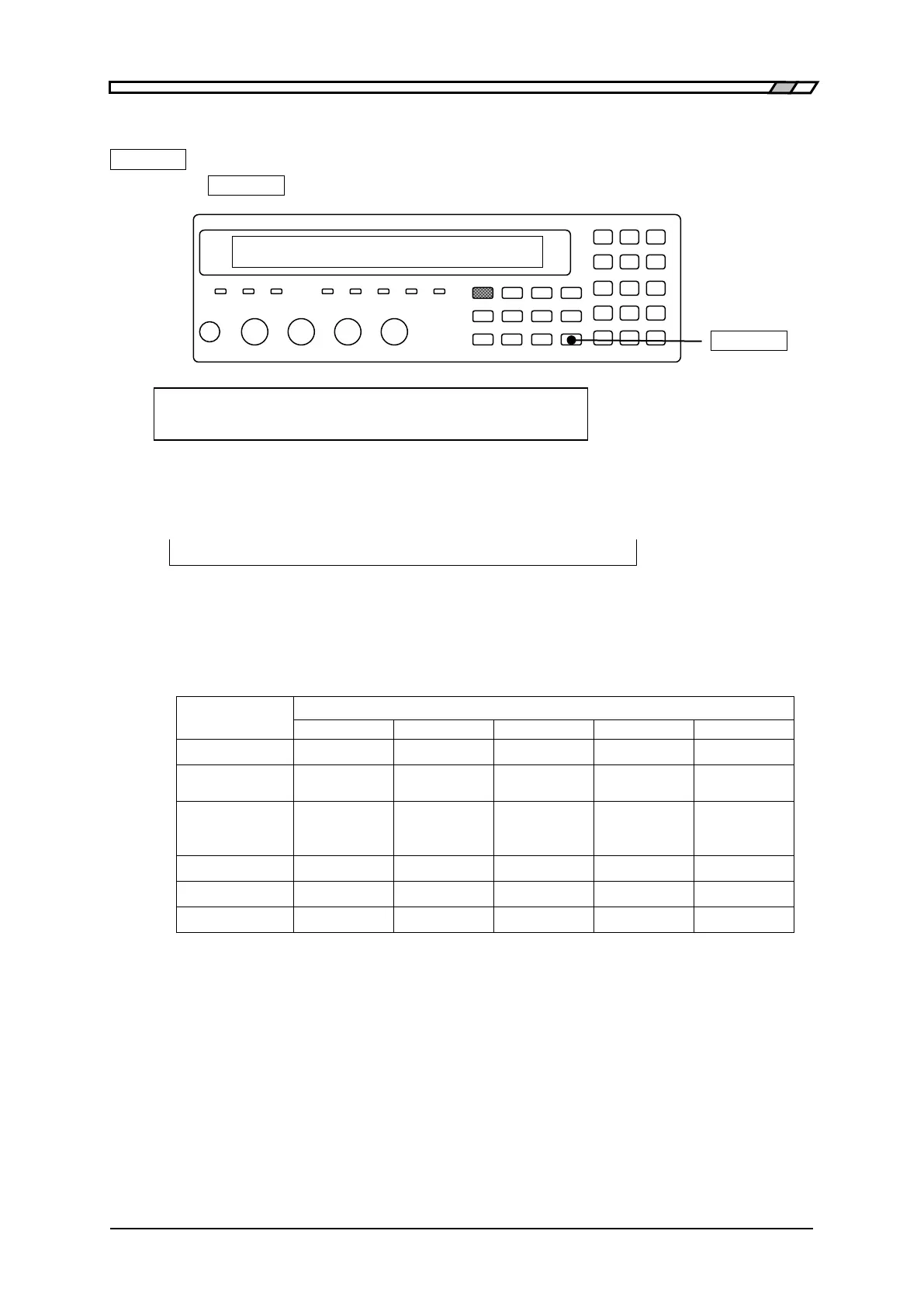

3.5 Basic Operations
3-46 ZM2376
3.5.6.5 Measurement speed
_SPEED_
Press the _SPEED_
key to display the measurement speed setting menu.
_SPEED_
Measuring Speed : FAST Current setting
0)RAP 1)FAST 2)MED 3)SLOW 4)VSLO Available value ranges
If a setting is made or the EXIT operation is performed, one-previous menu comes back.
Current measurement speed is displayed on the second line of measurement screen.
A100Ω FAST256 Int OpShLd1m • • • • • •
SPEED/AVERAGE
Measurement speed: RAPid / FAST / MEDium / SLOW / VerySLOw
(Lower-case letters are not displayed)
Table 3-4 Example of measurement time (supplementary value)
Conditions: Measurement range hold, Trigger delay time = 0, Averaging count = 1
The measurement time of direct current (DC) is the time added when DC resistance is
measured.
The measurement time at each frequencies is the time from input of TRIG signal to
output of EOM signal through the handler interface when DC resistance is not measured.
The values in ( ) at 120Hz and 1kHz express the signal acquisition time with the cycles
of the signal.
