3.5 Basic Operations
3-47 ZM2376
The signal acquisition time is obtained by subtracting the calculation time of about 1ms from the
measurement time given in Table 3-4.
After the signal acquisition, the DUT can be replaced.
The signal acquisition time at frequency below 1Hz is about one cycle of the signal.

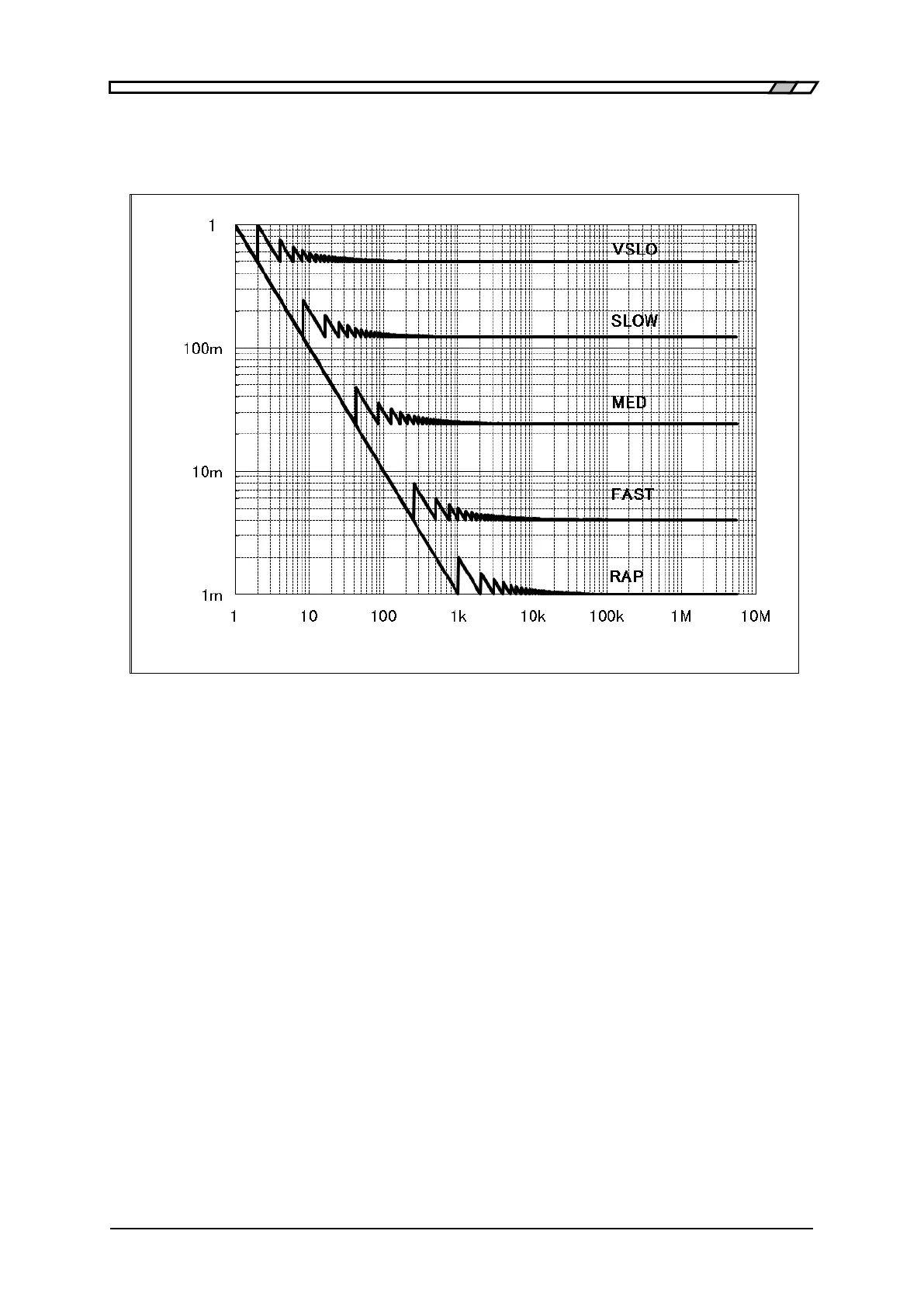

Figure 3-7 Signal acquisition time
Measurement time of DC resistance
When DC resistance Rdc is selected as a secondary parameter, DC resistance is measured
following the measurement of AC impedance. “Figure 3-6 Measurement sequence” (c)
Accordingly, the measurement time is the sum of the following three values:
• Measurement time of AC impedance
• Automatic range selection time of DC resistance (about 75 ms × 1 to 75ms × 5)
The measurement range of DC resistance is automatically selected unless the range is held by
remote control.
The adjustment time of measurement range varies depending on the DC resistance.
• Additional time to measure DC resistance “Table 3-4 Example of measurement
time” (DC)
Signal
acquisition time [s]
