4.5 Connecting to the Part handler (Handler Interface)
4-21 ZM2376
4.5 Connecting to the Part handler (Handler Interface)
For the ZM2376, the comparator result can be output into the handler interface of rear panel.
Connecting to the part handler allows auto part sorting system to be configured.

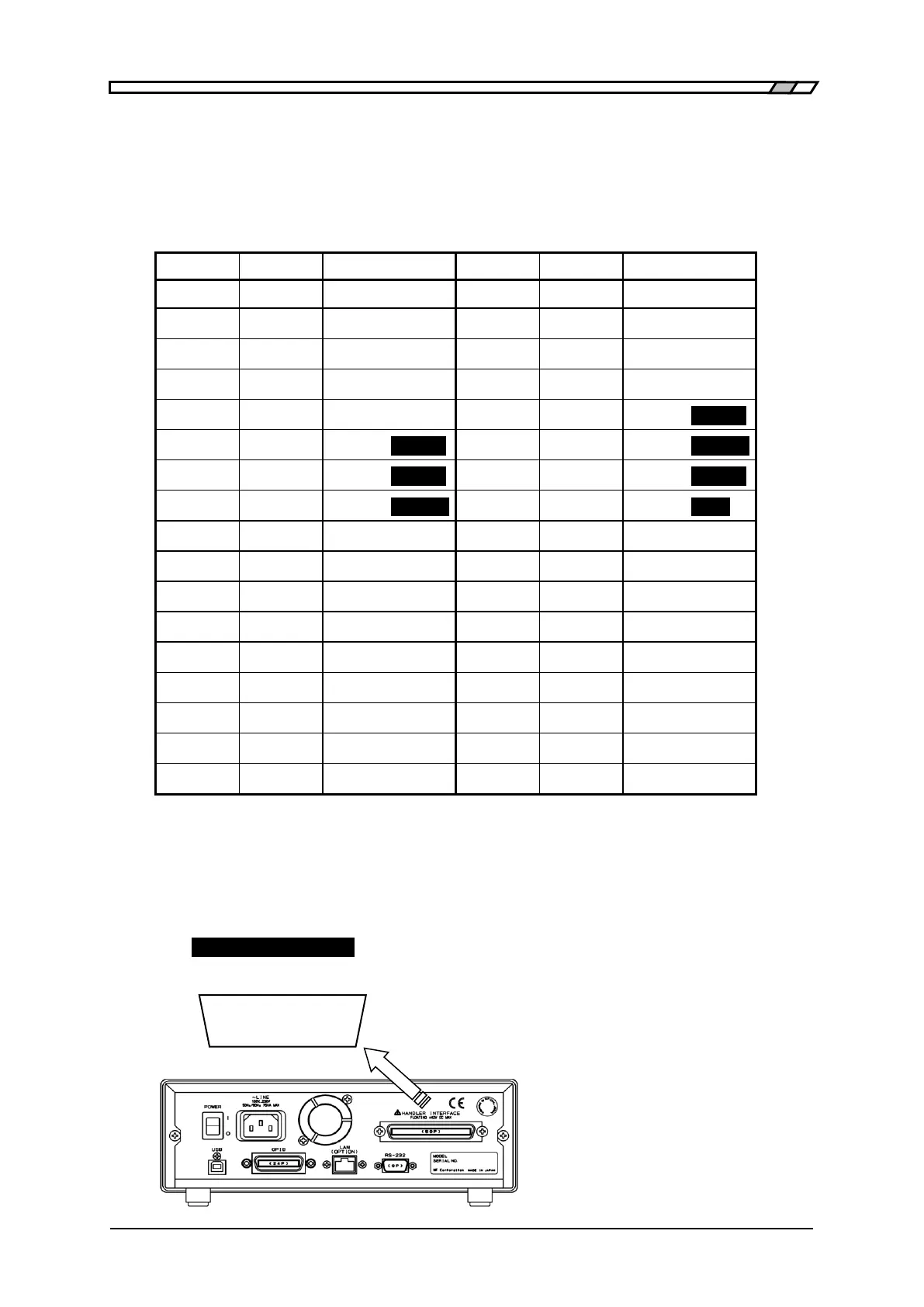

Table 4–3 Handler interface signal layout
Pin No.
I/O
Signal name
Pin No.
I/O
Signal name
1
IN
TRIG, /TRIG
26
IN
/RCL0
2
IN
/RCL1
27
IN
/RCL2
3
IN
/RCL3
28
IN
/RCL4
4
IN
/RCL5
29
IN
/RCL6
5
IN
/RCL-VALID
30
OUT
/BIN1, /P-HI
6
OUT
/BIN2, /P-IN
31
OUT
/BIN3, /P-LO
7
OUT
/BIN4, /S-HI
32
OUT
/BIN5, /S-IN
8
OUT
/BIN6, /S-LO
33
OUT
/BIN7, /IN
9
OUT
/BIN8
34
OUT
/BIN9
10
OUT
(/BIN10)
35
OUT
(/BIN11)
11
OUT
(/BIN12), /NC
36
OUT
(/BIN13), /PHI
12
OUT
(/BIN14), /PLO
37
OUT
/OUT OF BINS
13
OUT
/INDEX
38
OUT
/EOM
14
OUT
/ERR
39
OUT
/S-NG
15
IN
/KEY_LOCK
40
- - -
(reserved)
1620
IN
EXT DCV
4145
OUT
INT DCV
2125
IN
EXT COM
4650
OUT
INT COM
• The “/” at the top of signal name shows the negative logic where “low level” specifies “1”.
• The “( )" shows the signal when number of Bin is expanded (/NC, /PLO and /PHI are not
output).
Extending the Bin number
• • •  “ Extending the Bin number of primary parameter”
• reversed character shows the output signal in case of limit comparison.
/BIN1 to /BIN14, /PHI and /PLO are not output in case of limit comparison.
25••• 2 1 Terminal layout (rear view)
50•••27 26 DDK57-series 50-pin or equivalent
Rear Panel
