4.6 Measuring with More Than One Condition (Multi-measurement)
4-35 ZM2376
a) Sequence mode
b) Step mode

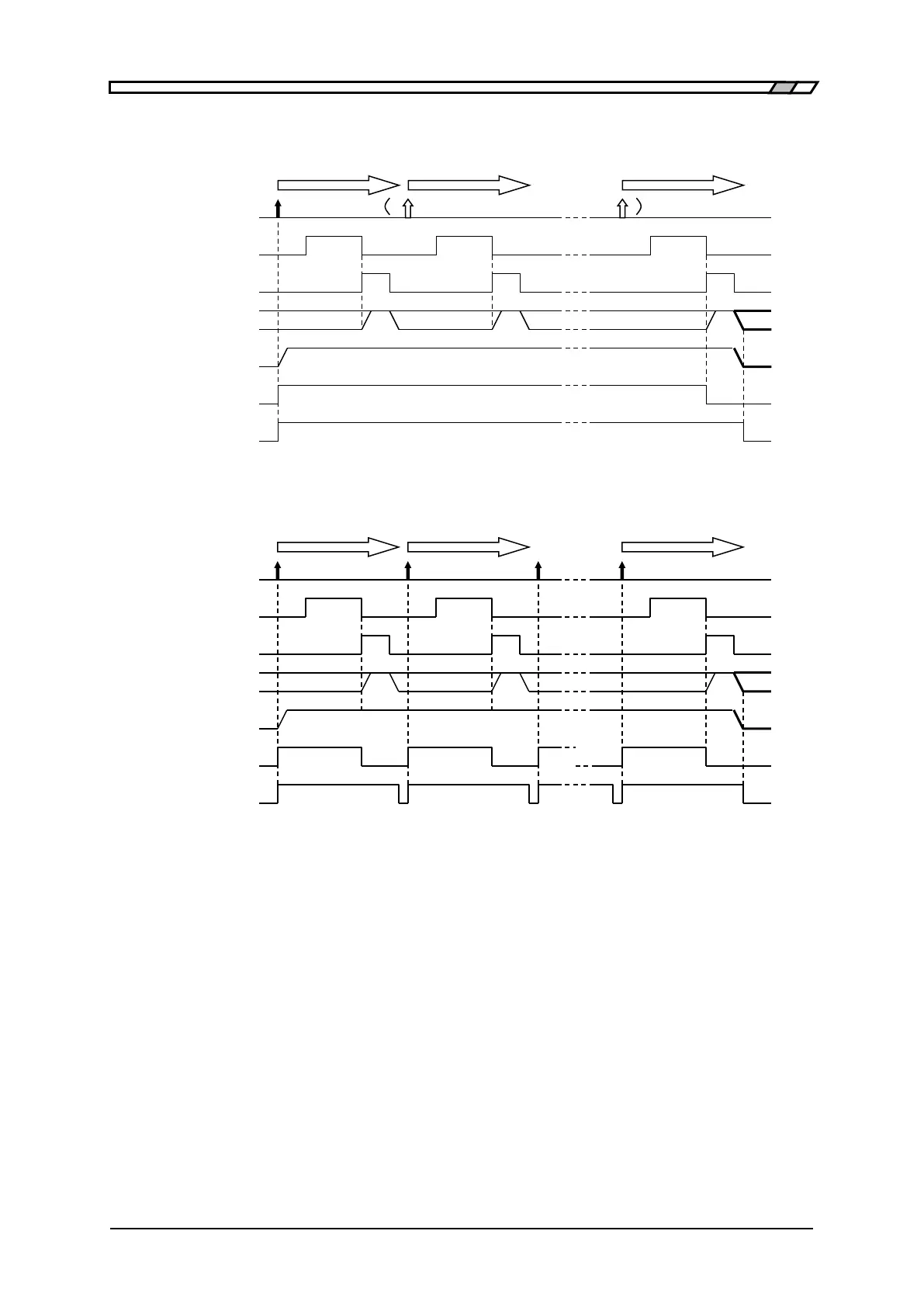

Figure 4-8 Handler interface operation timing in the multi-measurement
In the step mode, the DUT can be changed per step. For example, you can measure components of a
composite part with conditions suitable for each of them in sequence.
TRIG
Signal
acquisition
Parameter
calculation
Comparison
output
/INDEX
/EOM
STEP
0
1
Last
/EOS (BIN11)
TRIG
Signal
acquisition
Parameter
calculation
Comparison
output
/INDEX
/EOM
STEP
0
1
Last
/EOS (BIN11)
Internal auto trigger
