Nikon D3100 VBA28001 - Af.assist.lamp.unit; Sb.lower.cover.unit

VBA28001-R.3813.A
- A45 ・ D3100 -
[Black]
[Red]
#1027
#B325
#629
[Black]
#B302
CFD-409Z
CFD-409Z

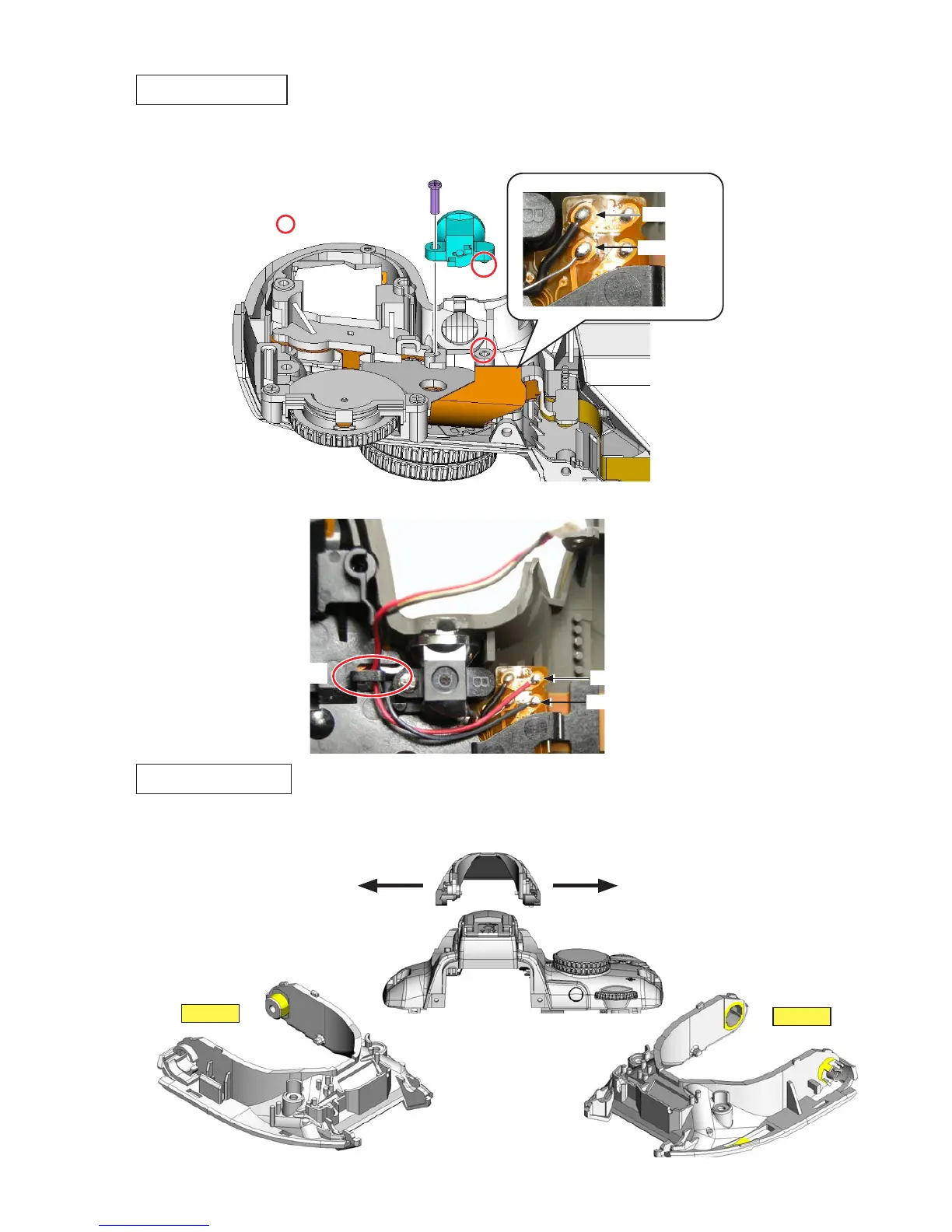

AF assist lamp unit
Mount the AF assist lamp unit (#B325) by tting the boss position, and tighten the screw (#629).
Solder the two wires.
•
•
Solder the two wires of the harness (#1027).•
＝
Boss
[Uncoated]
Guide
SB lower cover unit
Mount the SB lower cover unit (#B302) while extending it as indicated by the arrow.•
