Nikon D3100 VBA28001 User Manual

VBA28001-R.3813.A
- A72 ・ D3100 -
Sweep3Sweep4Sweep2Sweep1
Max
100mV
Min
40mV
Max
100mV
Min
50mV
Max
90mV
Min
50mV
Max
60mV
Min
20mV
Tool (Device)
J61232
Current detector Power supply
（10 Ｖ 5 Ａ )
3-output stabilized
power supply
Oscilloscope
Power connector
EP-5A

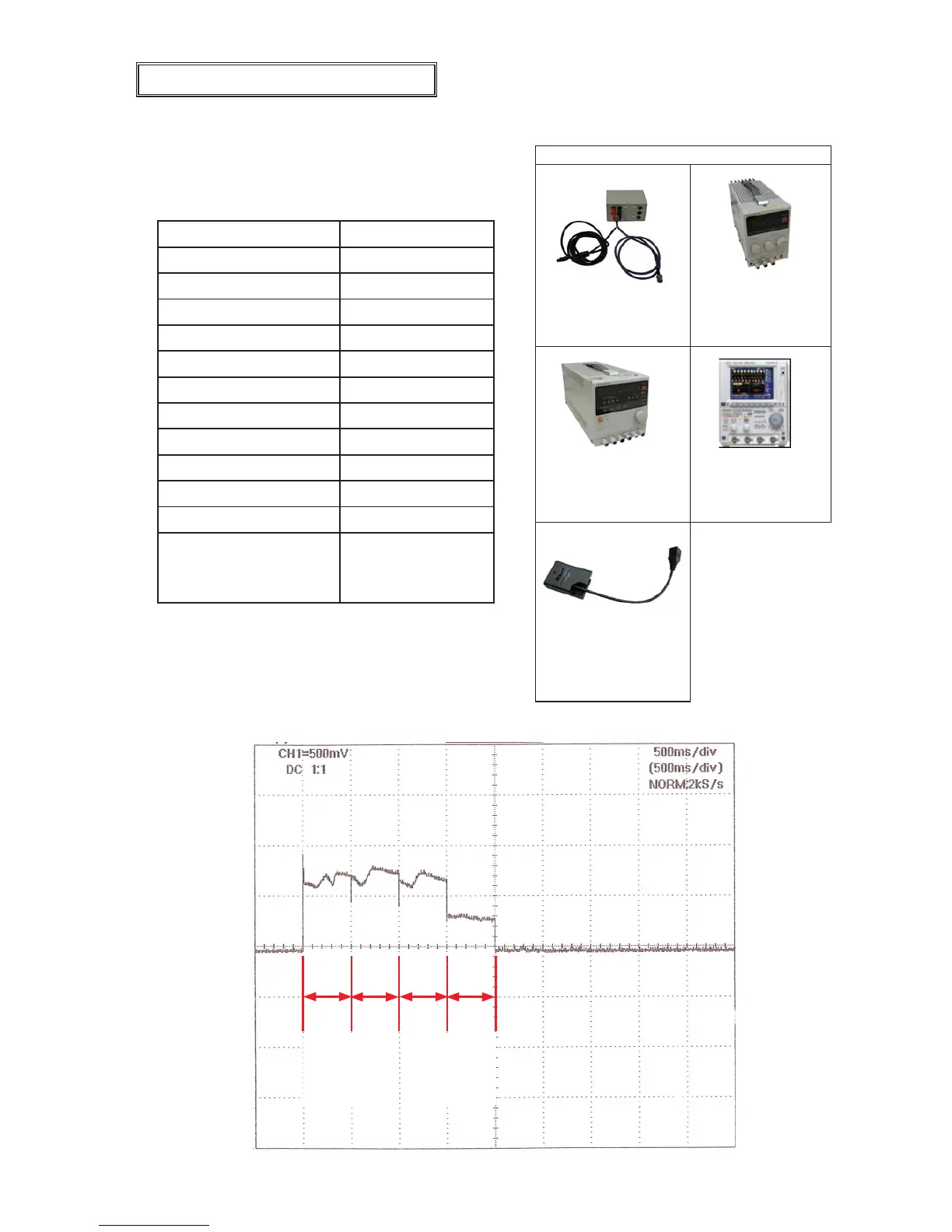

Operation check of image sensor cleaning
Refer to "Operation check of image sensor cleaning" of ADJUSTMENT Separate Volume
①
for details.•
Setting of oscilloscope
（
In case of YOKOGAWA-made DL1540
）
INPUT DC
TRIGGER MODE AUTO
TRIGGER LEVEL 4.0V
TRIGGER SOURCE CH1
TRIGGER TYPE EDGE
CH POSITION -4.00div
CH COUPLING DC
PROBE 1:1
FILTER(Bandwidth) FULL
FILTER(Smooth) ON
TIME/DIV 500ms/div
V/DIV 500mv/div
CH1 OFFSET
Adjust so that the wavy line is
positioned in the center, and
easily viewable.
Standard
User ID:INC

Nikon D3100 VBA28001 Specifications

General

Model	D3100
Product Code	VBA28001
Category	Digital Camera
Sensor Type	CMOS
Sensor Size	23.1 x 15.4 mm
Effective Pixels	14.2 million
Lens Mount	Nikon F mount
LCD Resolution	230, 000 dots
Viewfinder Type	Optical (pentamirror)
Viewfinder Coverage	95%
Autofocus	11-point AF system
Continuous Shooting	3 fps
Storage Media	SD/SDHC/SDXC
Battery Life	Approx. 550 shots
Dimensions	124 x 96 x 74.5 mm
Max Resolution	4608 x 3072
Image Ratio	3:2
Focal Length Multiplier	1.5x
Articulated LCD	No
Max Shutter Speed	1/4000 sec
Min Shutter Speed	30 sec
Metering Modes	Matrix, Center-weighted, Spot
White Balance Presets	12
USB	USB 2.0
ISO Range	ISO 100 - 3200 (Expandable to 12800)
LCD Screen Size	3 inches
Video Recording	1080p HD at 24 fps
Battery	EN-EL14
Exposure Compensation	±5 EV in 1/3 EV steps
HDMI	Yes (mini HDMI)
