VBA28001-R.3813.A
- D29 ・ D3100 -
#633
#70
#1043
#141
[Red]
[Black]
TA-0015 (13x28)

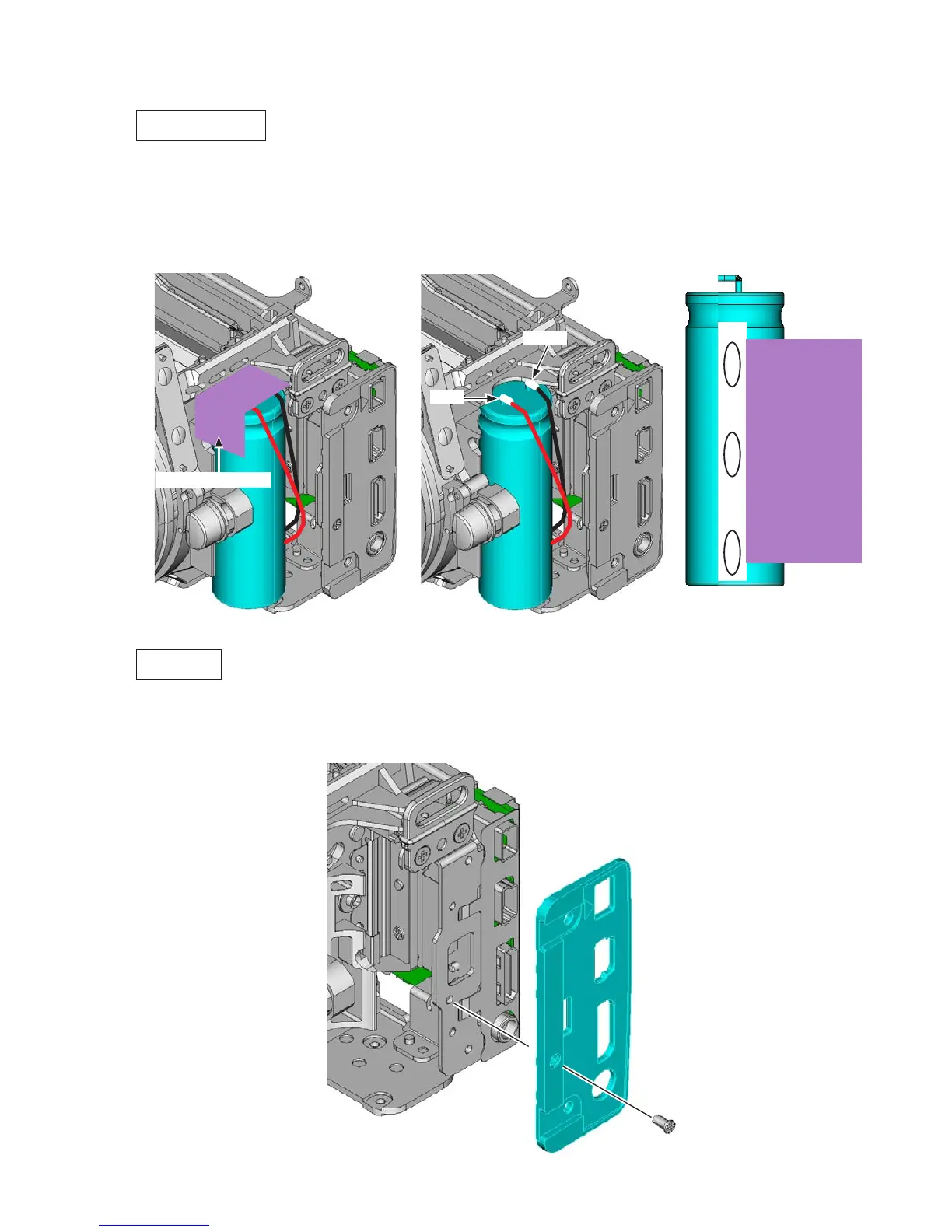

Main condenser
Peel off the tape [TA-0015 (13×28)].
Unsolder the two wires from the main condenser (#1043).
Remove the main condenser (#1043).
Peel off the double-stick tape (#141).
•
•
•
•
4. Sub-frame (tentative)
IF holder
Take out the screw (#633).
Remove the IF holder (#70).
•
•
