Nikon D3100 VBA28001 - Sq.pcb.unit

VBA28001-R.3813.A
- D48 ・ D3100 -
#602
#602
SQ PCB unit

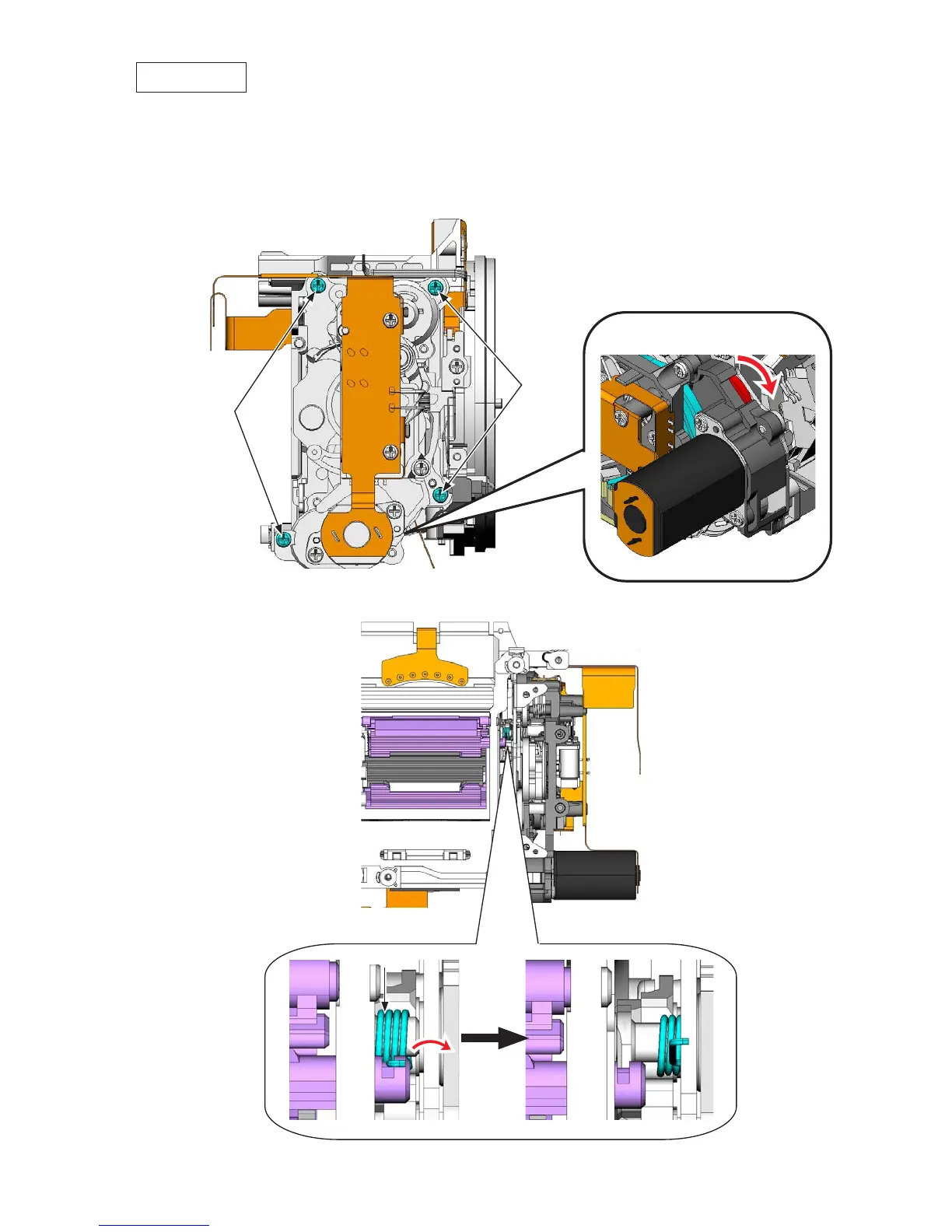

Turn the gear indicated in red clockwise to lower the mirror.
Loosen the four screws (#602). By slightly lifting the SQ PCB unit, remove the spring of the SQ unit
from the hook of the mirror unit.
Loosen the four screws (#602).
•
•
•
Spring
