Nikon D3100 VBA28001 - Shutter.pcb

VBA28001-R.3813.A
- A10 ・ D3100 -
#2001RP
#619
RX-4552
Shutter PCB

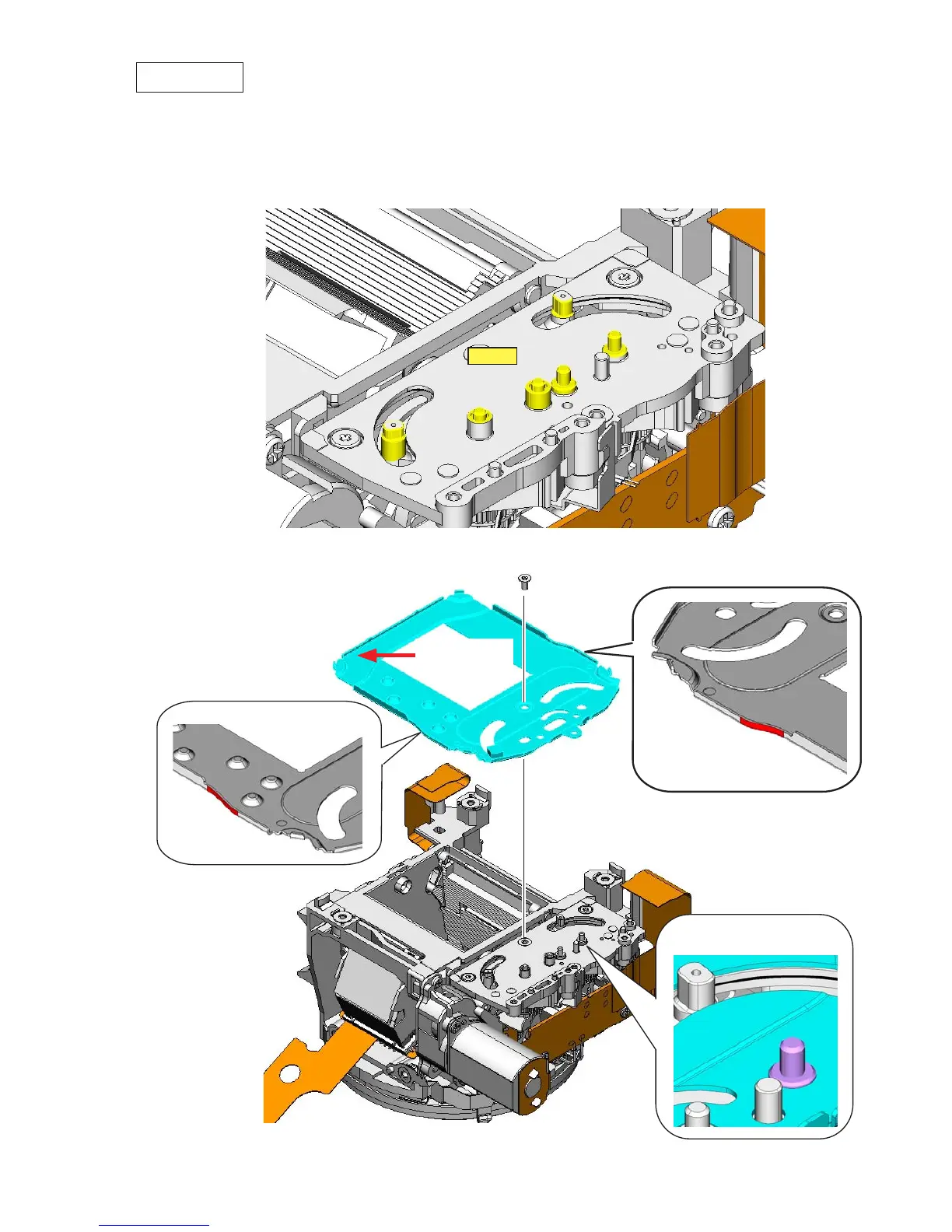

Mount the shutter PCB unit (#2001RP).
Caution: To avoid deformation of [#2001RP], do neither hold the other areas than indicated in red,
nor let [#2001RP] be placed on the shaft.
Tighten the screw (#619).
•
•
Direction for
positioning
[#2001RP] must not be
placed on the shaft.
