Page #70 background imageLoading...
Page #70 background image
VBA28001-R.3813.A
- A11 ・ D3100 -
#B2016
#179
#2015
#178
#B2016

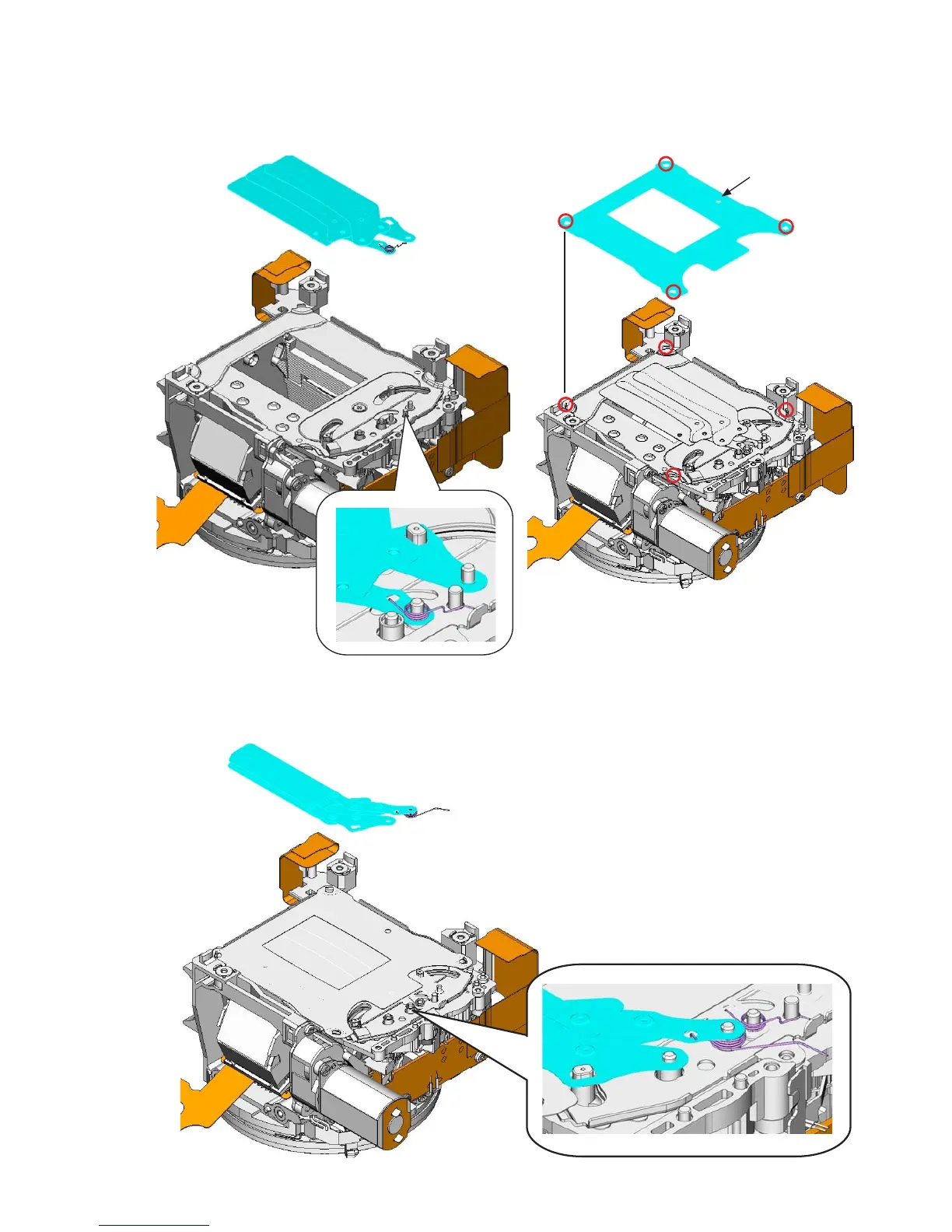

Mount the shutter curtain unit (B2016).
Attach the spring (#179). (At this point, do NOT engage the hook.
）
Mount the retainer plate (#2015).
•
•
•
This circle must face the
penta prism side.
Attach the spring (#178).
Mount the shutter curtain unit (#B2016).
•
•
User ID:INC
