Nikon D3100 VBA28001 - Togo.pcb.unit

VBA28001-R.3813.A
- A30 ・ D3100 -
#1015
#B2001
②
①
#656
#656 #656
TA-0015(13×18)
#607

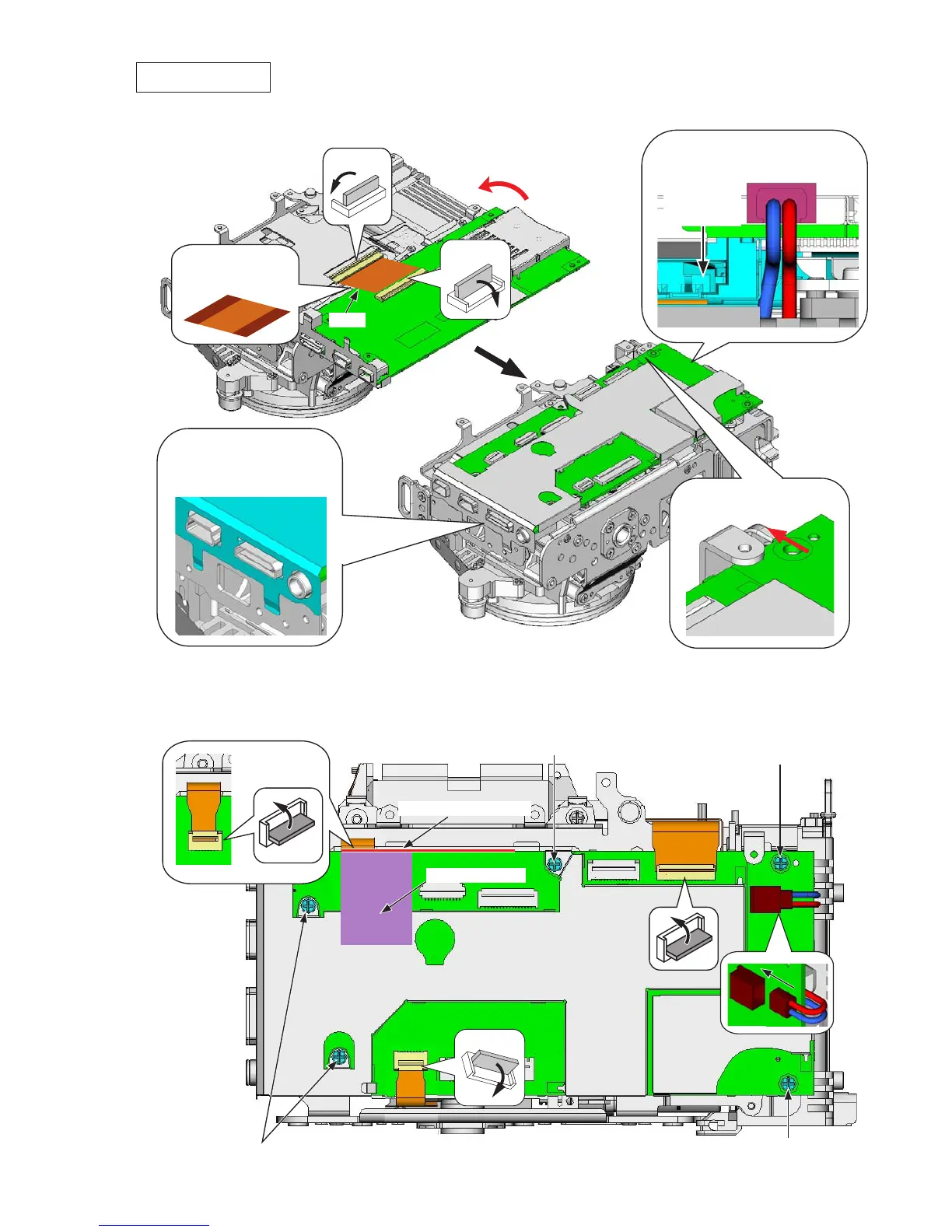

TOGO PCB unit
Connect the connection-FPC (#1015) in the numeric order from
①
to
②
, and mount the TOGO PCB
unit (#B2001).
•
Tighten the four screws (#656) and one screw (#607).
Connect the three FPCs.
Attach the tape [TA-0015 (13×18)].
•
•
•
Put by sliding outwards.
SD insertion
section.
Be careful NOT to pinch the
harnesses in the SD insertion section.
Do NOT pinch the shield
plate inside the sub-frame.
The pattern
surface must face
downwards.
Attaching position
