Nikon D3100 VBA28001 User Manual

VBA28001-R.3813.A
- A29 ・ D3100 -
[purple]x2
[Black]
[Red]
#643
#638
#158

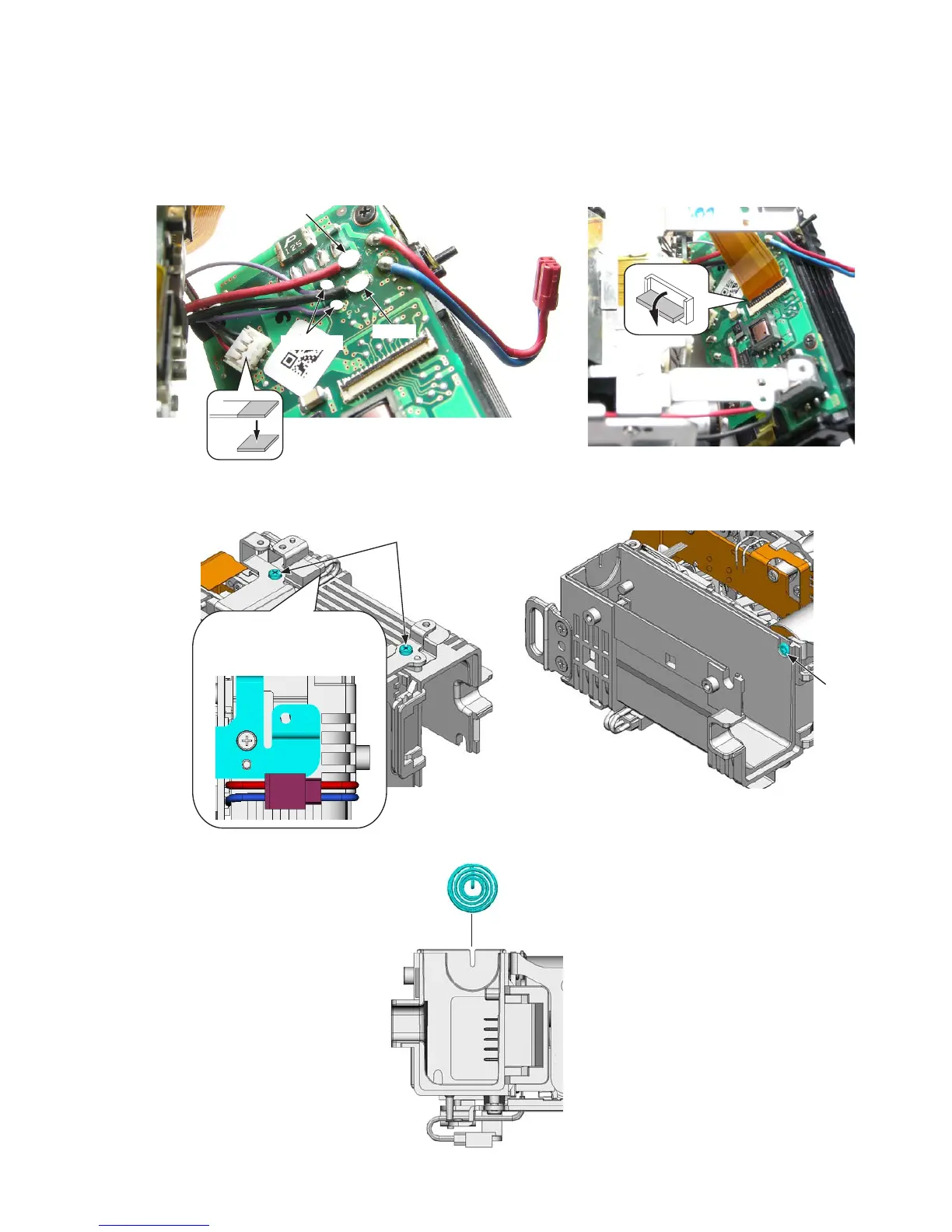

While placing the condenser wires between the body and battery box, mount the battery box unit.
Tighten the two screws (#643) and one screw (#638).
•
•
Connect the harness with the battery box being tilted.
Solder the four wires of the power drive PCB.
Connect the FPC.
•
•
•
Attach the spring (#158).•
Arrange the harnesses so that
they are not pinched in the
sub-frame.
User ID:INC

Nikon D3100 VBA28001 Specifications

General

Model	D3100
Product Code	VBA28001
Category	Digital Camera
Sensor Type	CMOS
Sensor Size	23.1 x 15.4 mm
Effective Pixels	14.2 million
Lens Mount	Nikon F mount
LCD Resolution	230, 000 dots
Viewfinder Type	Optical (pentamirror)
Viewfinder Coverage	95%
Autofocus	11-point AF system
Continuous Shooting	3 fps
Storage Media	SD/SDHC/SDXC
Battery Life	Approx. 550 shots
Dimensions	124 x 96 x 74.5 mm
Max Resolution	4608 x 3072
Image Ratio	3:2
Focal Length Multiplier	1.5x
Articulated LCD	No
Max Shutter Speed	1/4000 sec
Min Shutter Speed	30 sec
Metering Modes	Matrix, Center-weighted, Spot
White Balance Presets	12
USB	USB 2.0
ISO Range	ISO 100 - 3200 (Expandable to 12800)
LCD Screen Size	3 inches
Video Recording	1080p HD at 24 fps
Battery	EN-EL14
Exposure Compensation	±5 EV in 1/3 EV steps
HDMI	Yes (mini HDMI)
