Nikon D3100 VBA28001 - Sub-frame Assembly

VBA28001-R.3813.A
- A18 ・ D3100 -
#630
#68
#65
#61
2. Sub-frame

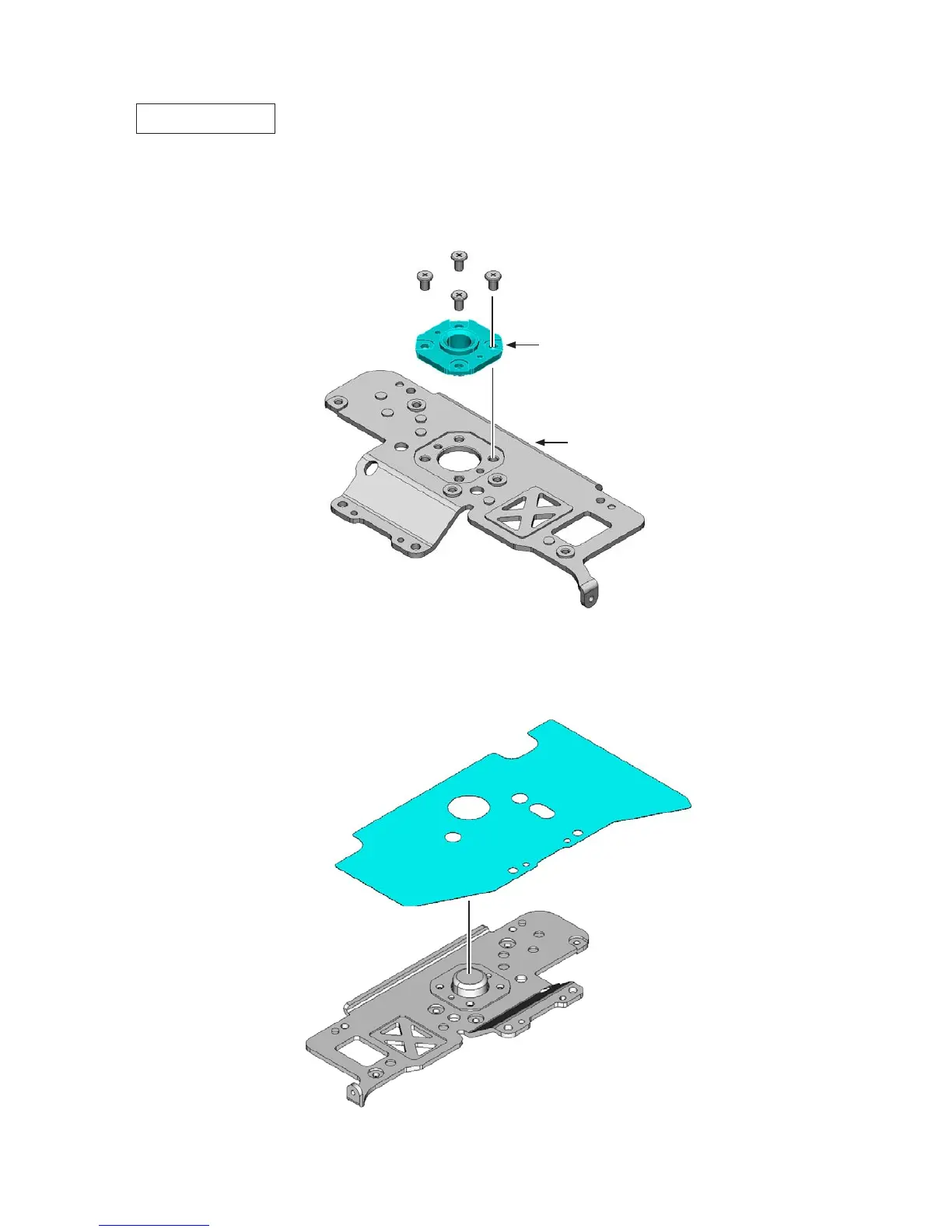

Bottom plate unit
Attach the tripod base (#68) to the bottom plate (#61), and tighten the four screws (#630).•
Attach by tting each round hole.
Attach the shield sheet (#65) to the bottom plate unit.•
