Nikon D3100 VBA28001 User Manual

VBA28001-R.3813.A
- A24 ・ D3100 -
#635
①
②
①
②
#480
#481
#656
EDB0011 EDB0011
#1020

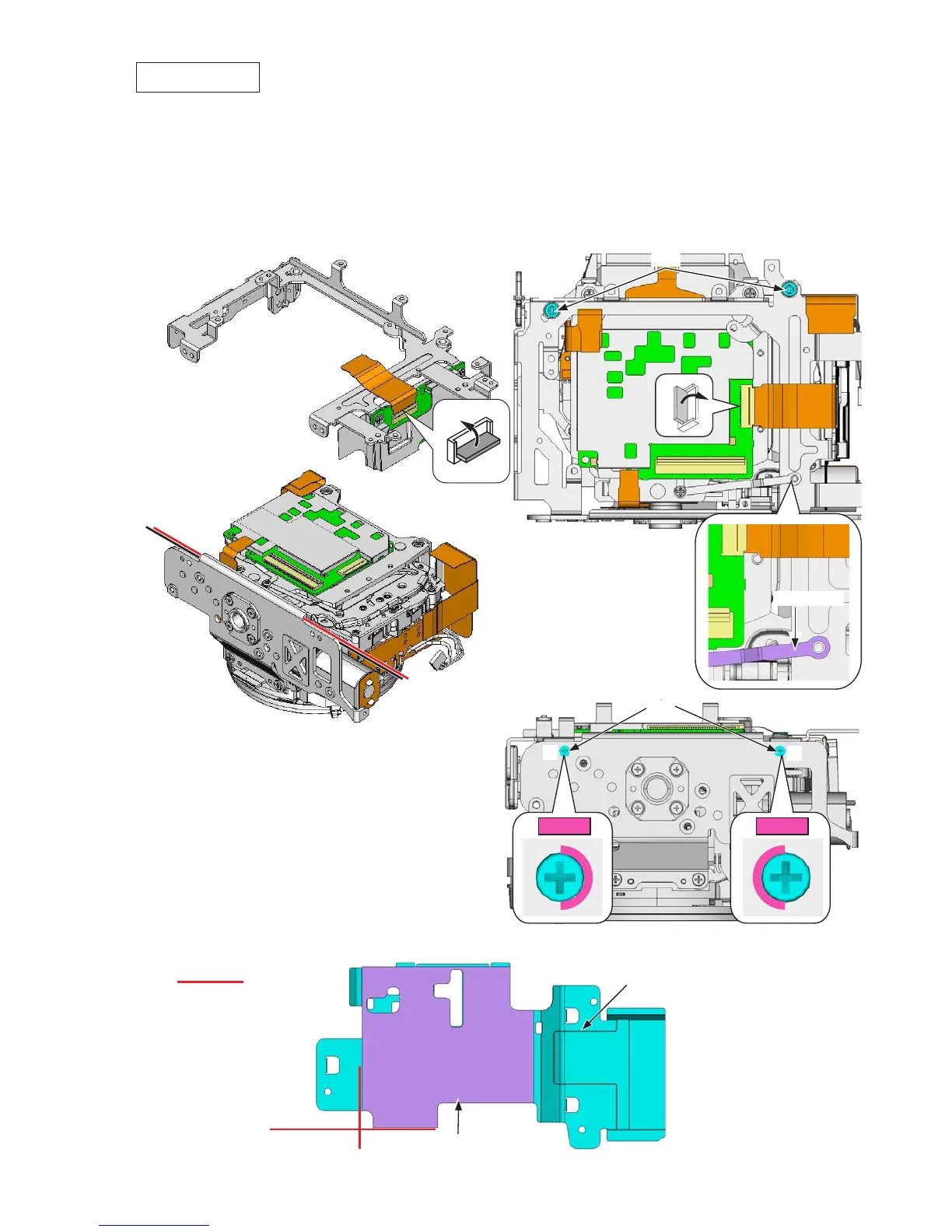

Sub-frame unit
Connect the connection-FPC (#1020) to the sub-frame unit.
Mount the sub-frame unit on the front body unit.
Tighten the two screws (#635) with the torque driver (set value: 12N.cm
）
in the numeric order from
①
to
②
.
Tighten the two screws (#656) in the numeric order from
①
to
②
, and connect the FPC (#1020) to the
image sensor unit (#B3051).
•
•
•
•
Attach the tape (#481) to the shield plate (#480).•
Attaching
position
GND plate
Be careful NOT to
pinch any of the
condenser wires,
FPCs, or GND plate.
User ID:INC

Nikon D3100 VBA28001 Specifications

General

Model	D3100
Product Code	VBA28001
Category	Digital Camera
Sensor Type	CMOS
Sensor Size	23.1 x 15.4 mm
Effective Pixels	14.2 million
Lens Mount	Nikon F mount
LCD Resolution	230, 000 dots
Viewfinder Type	Optical (pentamirror)
Viewfinder Coverage	95%
Autofocus	11-point AF system
Continuous Shooting	3 fps
Storage Media	SD/SDHC/SDXC
Battery Life	Approx. 550 shots
Dimensions	124 x 96 x 74.5 mm
Max Resolution	4608 x 3072
Image Ratio	3:2
Focal Length Multiplier	1.5x
Articulated LCD	No
Max Shutter Speed	1/4000 sec
Min Shutter Speed	30 sec
Metering Modes	Matrix, Center-weighted, Spot
White Balance Presets	12
USB	USB 2.0
ISO Range	ISO 100 - 3200 (Expandable to 12800)
LCD Screen Size	3 inches
Video Recording	1080p HD at 24 fps
Battery	EN-EL14
Exposure Compensation	±5 EV in 1/3 EV steps
HDMI	Yes (mini HDMI)
