Assembly
1. Front Body
Mirror unit

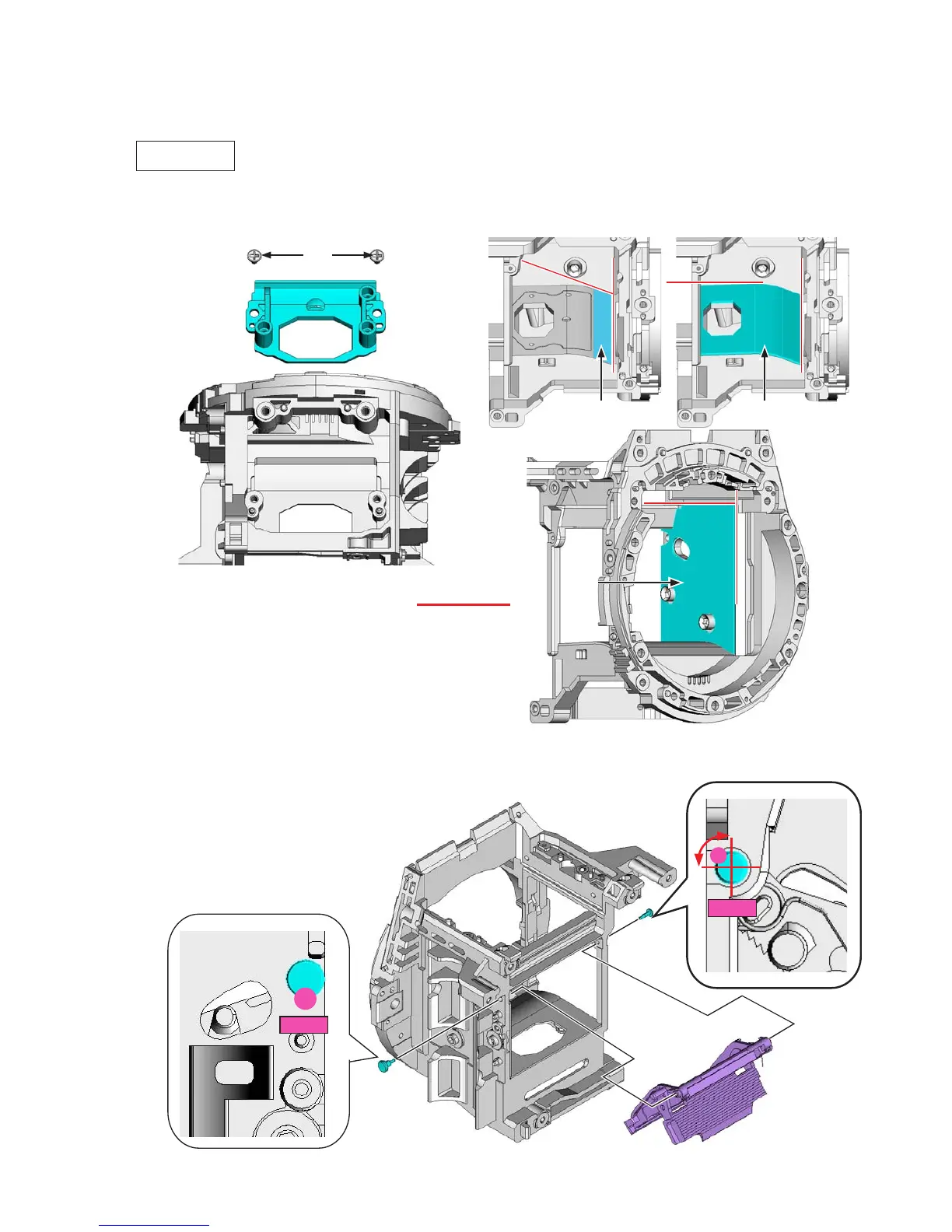

Mount the holder (#30), and tighten the two screws (#662).
Attach the sheet (#496), shading sheets (#238 and #239).
•
•
Mount the mirror unit (#B2231), and attach the main mirror shafts (#198 and #199).
Apply the adhesive (C-8008B) to the main mirror shaft.
•
•
