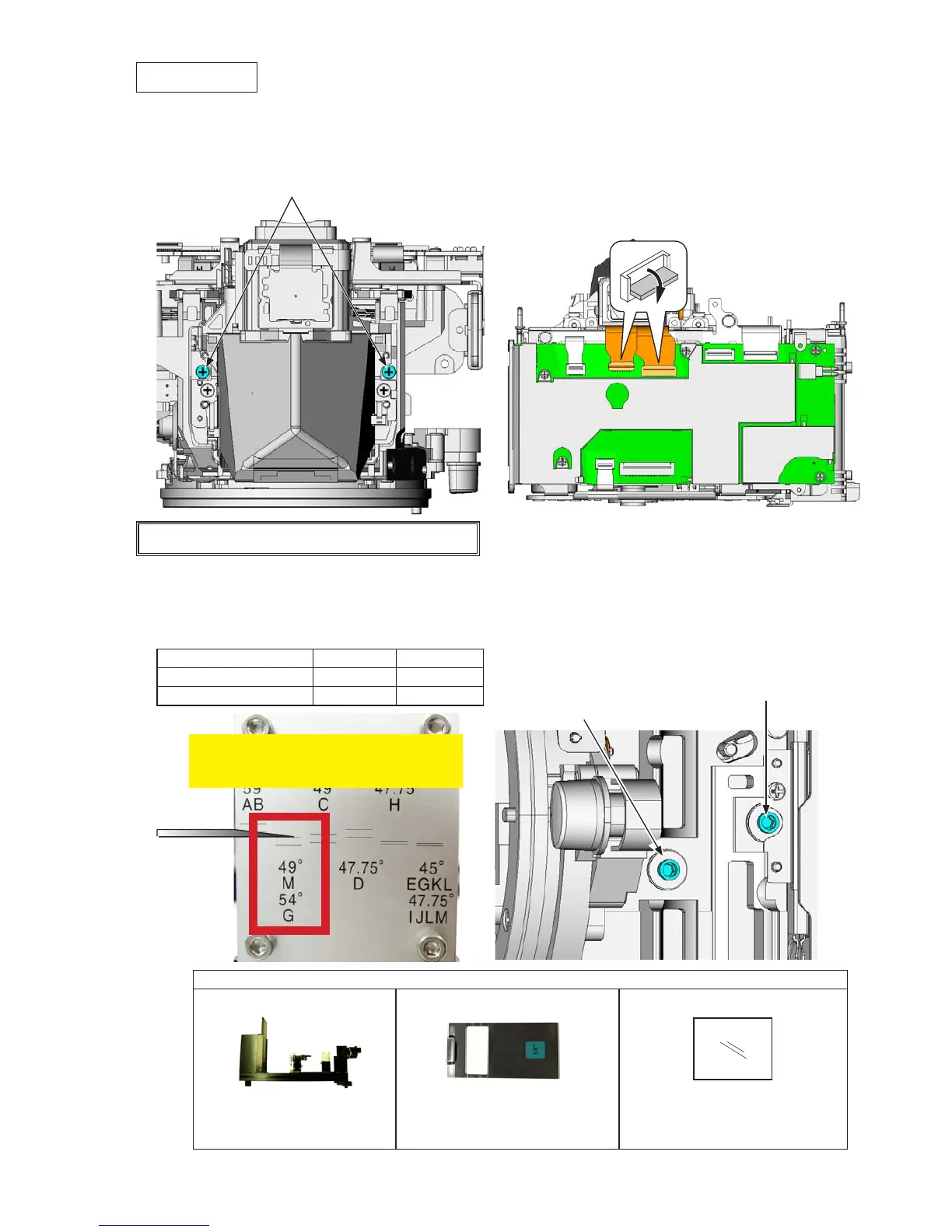

Nikon D3100 VBA28001 - Prism.box.unit; Angle.adjustment.of.main.mirror.and.sub-Mirror

VBA28001-R.3813.A
- A35 ・ D3100 -
#613
Prism box unit
Mount the prism box unit.
Tighten the two screws (#613).
•
•
Sub-mirror adj.
eccentric pin
Main mirror adj.
eccentric pin
※
Height indication position of the
measurement-use sub-mirror
Angle adjustment of main mirror and sub-mirror
Refer to "Angle adjustment of main mirror and sub-mirror" and "How to do positioning of sub-mirror
for 51° angle" of ADJUSTMENT Separate Volume
①
for details.
Standard angle of sub-mirror: 51°
•
Main Sub (51°
）
Up-down deviation 0±4′ 0±3′
Left-right deviation 0±10′
Tool (Device)
J19132 J19132D J15442
Main/Sub mirror angle inspection
tool
54°-measurement-use mirror Reection mirror
