Nikon D3100 VBA28001 - Bayonet.mount

VBA28001-R.3813.A
- D49 ・ D3100 -
#112
#B2177
#29
#654
①
②
③
④
⑤
⑥
#653
#111

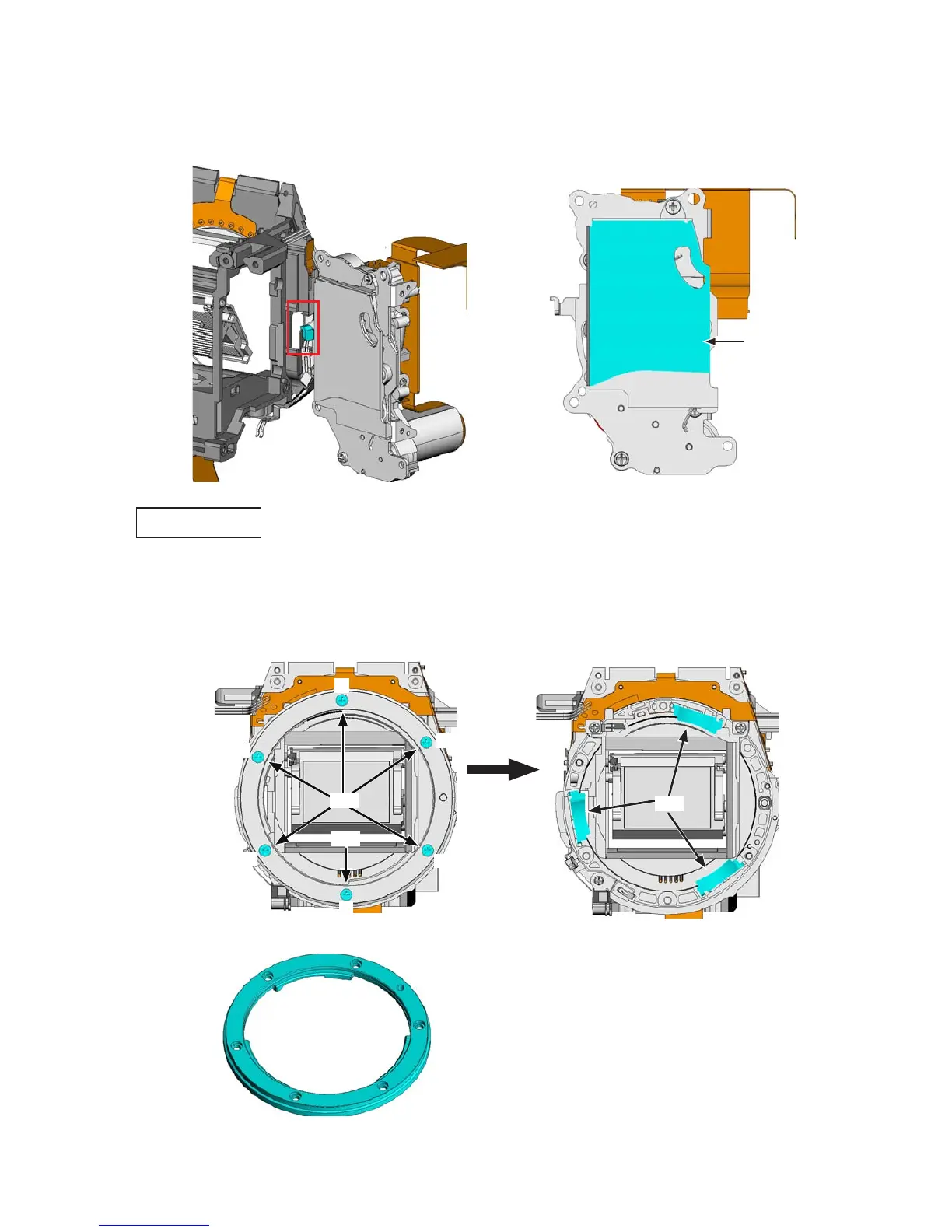

Remove the aperture lever section of the SQ PCB unit (#B2177) from the front body by releasing from a
gap (see below).
Peel off the shading sheet (#29).
•
•
Bayonet mount
Take out the ve screws (#653) and one screw (#654).
Remove the bayonet mount (#111).
Remove the three bayonet mount springs (#112).
•
•
•
