Nikon D3100 VBA28001 - Adjustment.of.camera.body.(Except.imaging)

VBA28001-R.3813.A
- A59 ・ D3100 -
#631
#623
Insert a paper,
etc.
Adjustment of camera body (except imaging)

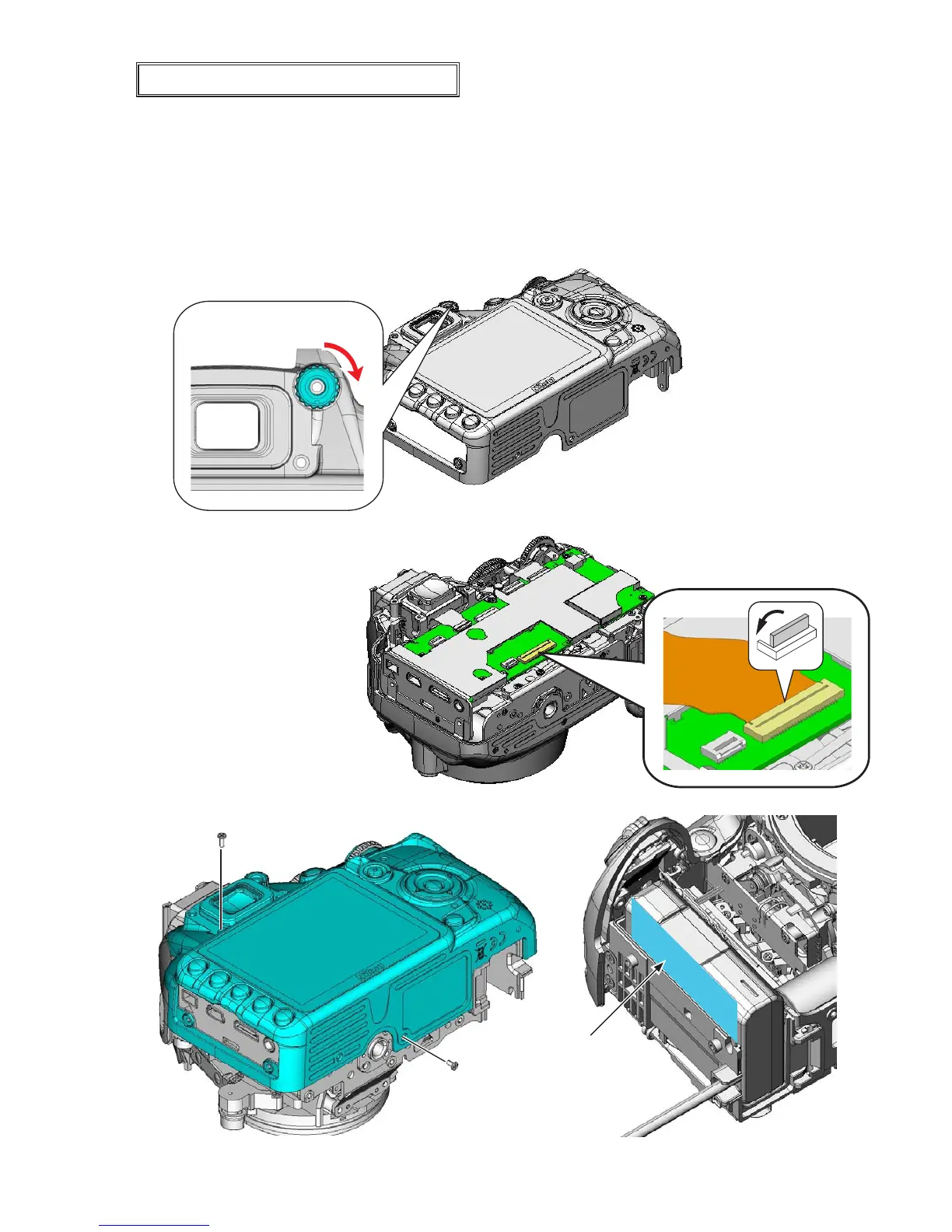

Connect the FPC of the rear cover unit.
Turn the diopter adjustment knob all the way to the right, and mount the rear cover unit.
Tighten the screws (#631 and #623) (for temporary assembly).
Insert a paper, etc, into the battery box, in order to secure the power connector (EP-5A). Then, conrm
that the power can be ON.
Be careful NOT to touch the discharging areas and condenser.
•
•
•
•
Diopter adj. knob
