Nikon D3100 VBA28001 - Sub-frame Disassembly

VBA28001-R.3813.A
- D24 ・ D3100 -
#B317
#316
#318
#322
#627

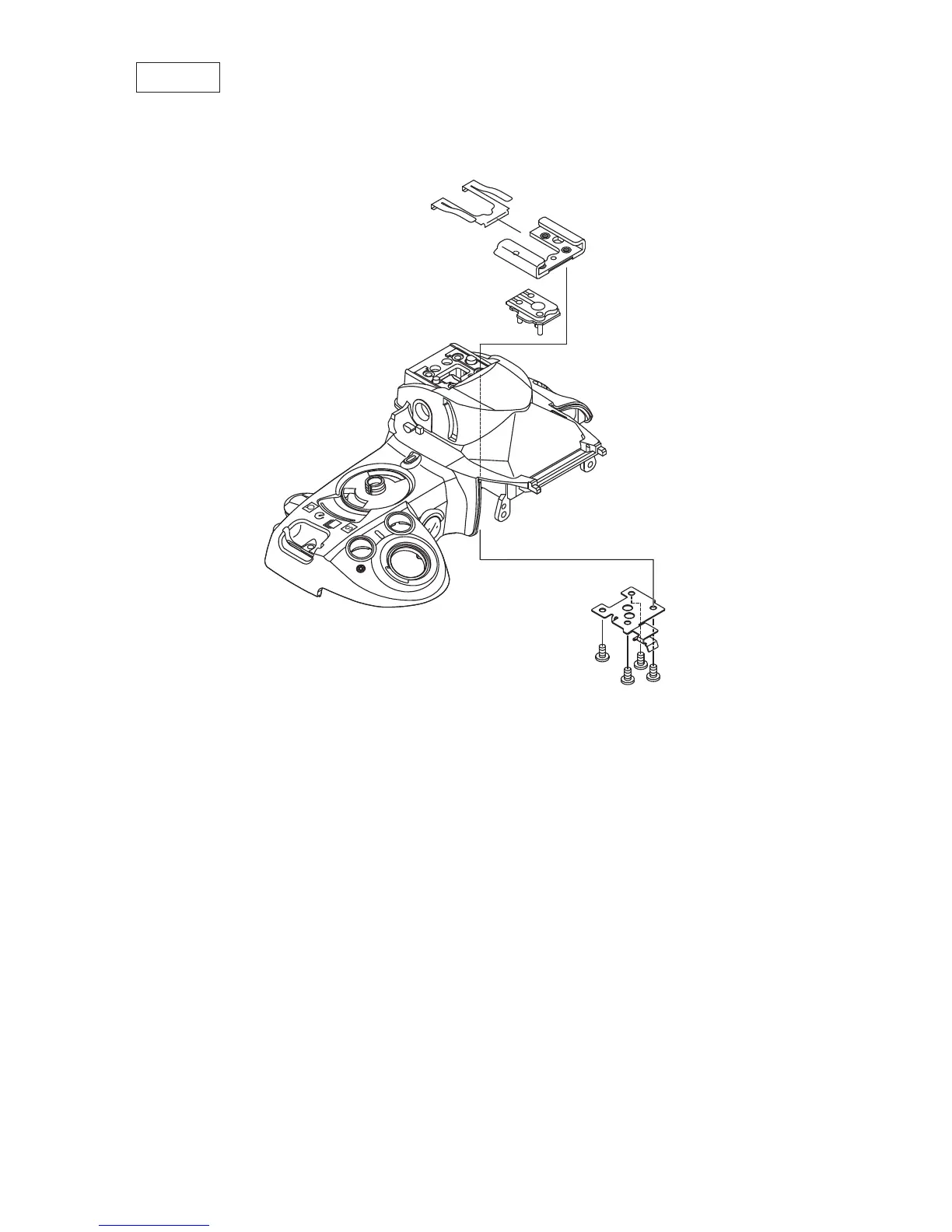

Hot shoe
Take out the four screws (#627).
Remove the holder plate (#322), hot shoe spring (#318), hot shoe (#316), and hot shoe mold unit (#B317).
•
•
